170 Degree Easy-On No Bore Concealed Hinge Inset, Full Overlay, Half Overlay B18042602

The Amazing Problem Solver Easy-ON Invisible Hinge with 170 Degree Opening

NEW and improved, Heavy Duty

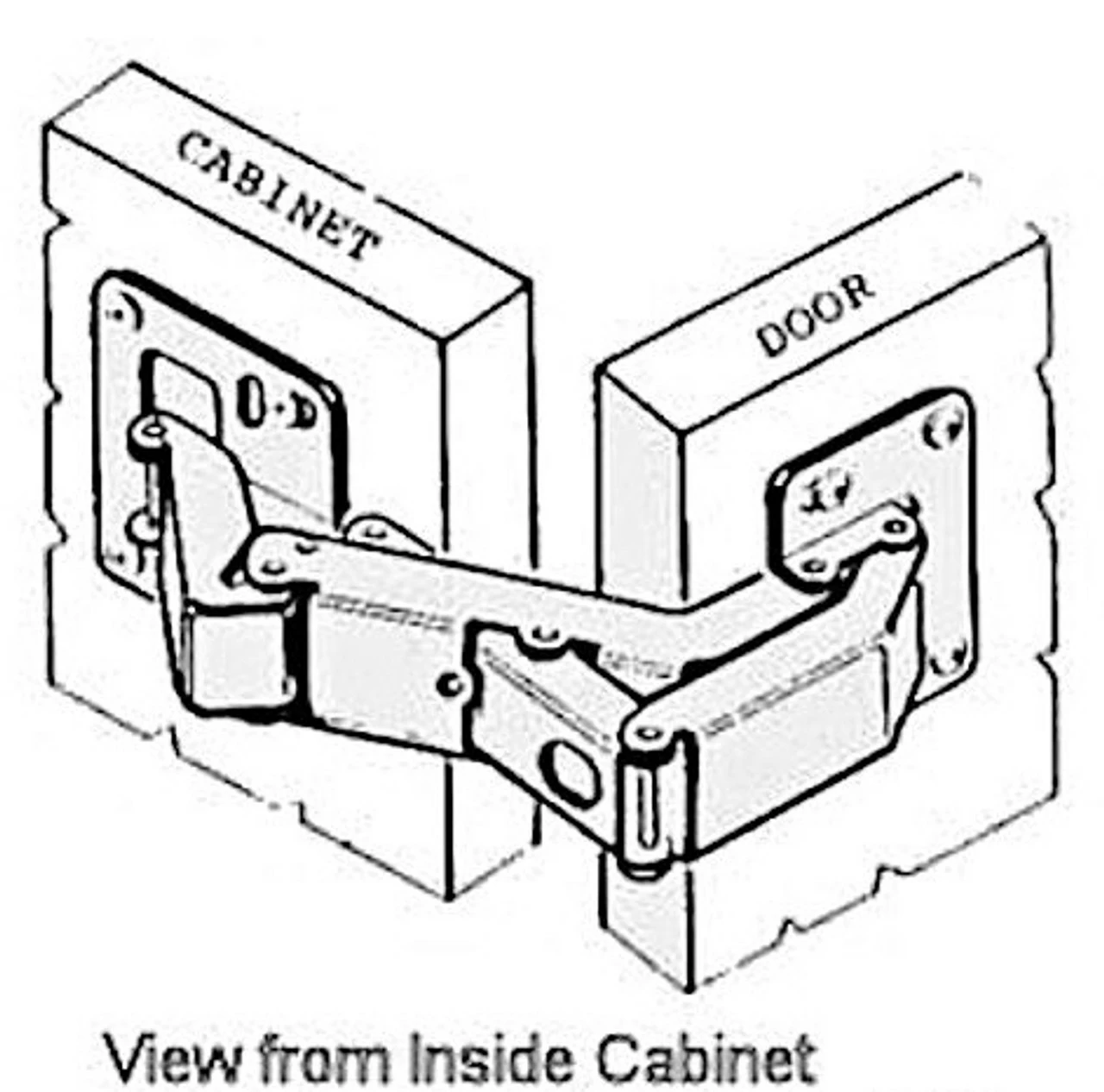

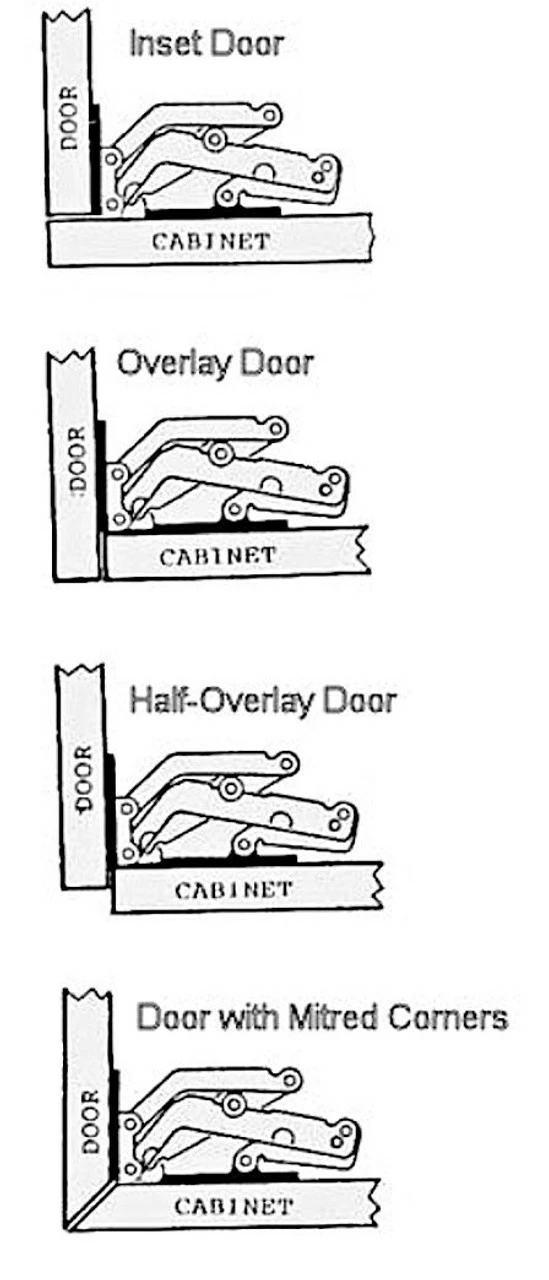

No concealed hinge cup boring to do. Surface mounts and does inset, full overlay, or half-overlay. This hinge requires experienced knowledge of the workings of euro hinges to install. Invisible Spring Hinge for Inset, Full or Partial overlay doors. Euro-Hinge performance from a surface mount hinge. Up to 25/32″ overlay. 170 degree opening.

Adjustable anywhere between 170 degrees and 150 degrees with set screw.

Hardened Steel Construction. Use for doors up to 3/4″ thick. This hinge is for use on cabinets without face-frames. If you have face-frames you must use a 1 3/4″ block attached at 90 degrees to face-frame to mount this hinge.

You are receiving the Hinge Only.

• Overall Dimensions:</b 4-1/8″ x 15/8″ x 2-1/16″
• Base Dimensions: 2″ x 1 7/8″ and 2″ x 5/8″)
• Finish: Unichrome (Nickel Plated)

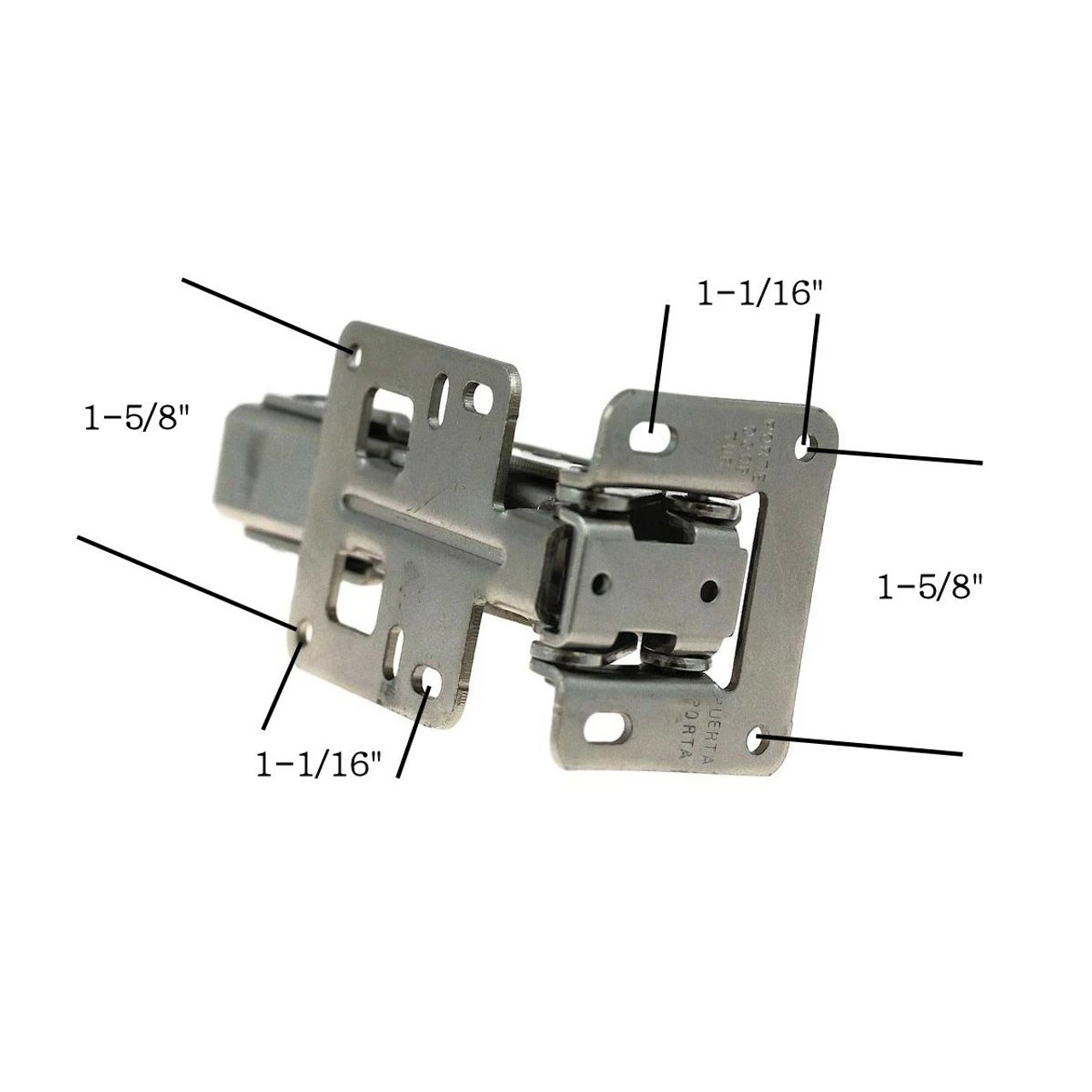

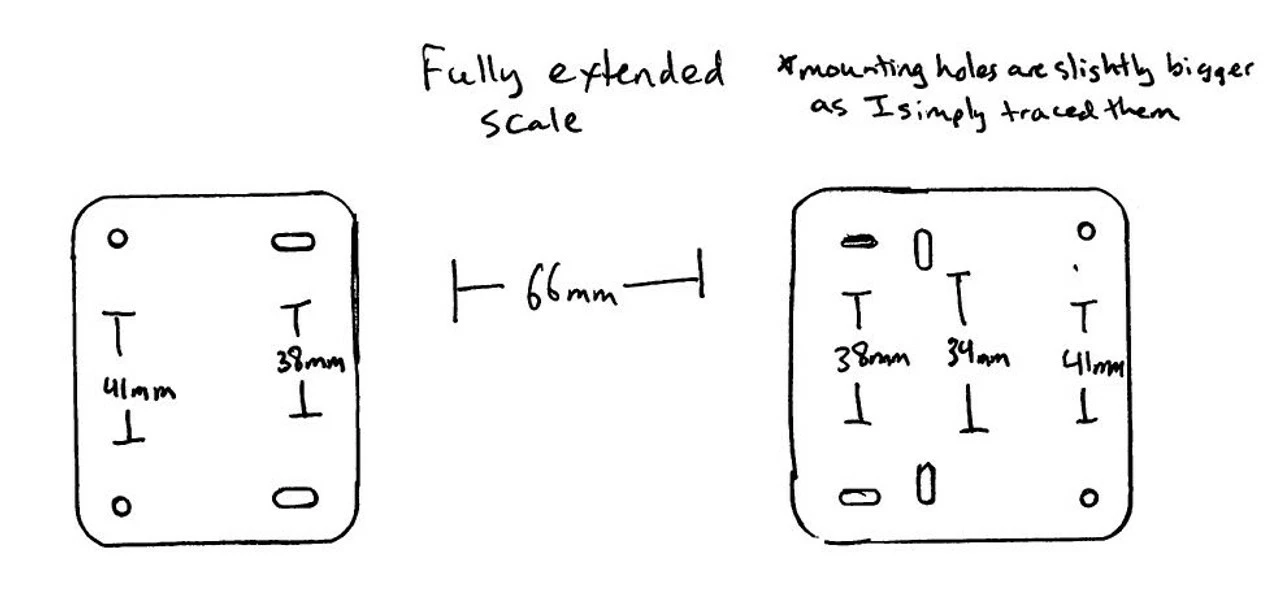

See Drawing for Hole Spacing

Requires 4-6 #6 round head screws. D. Lawless Hardware
