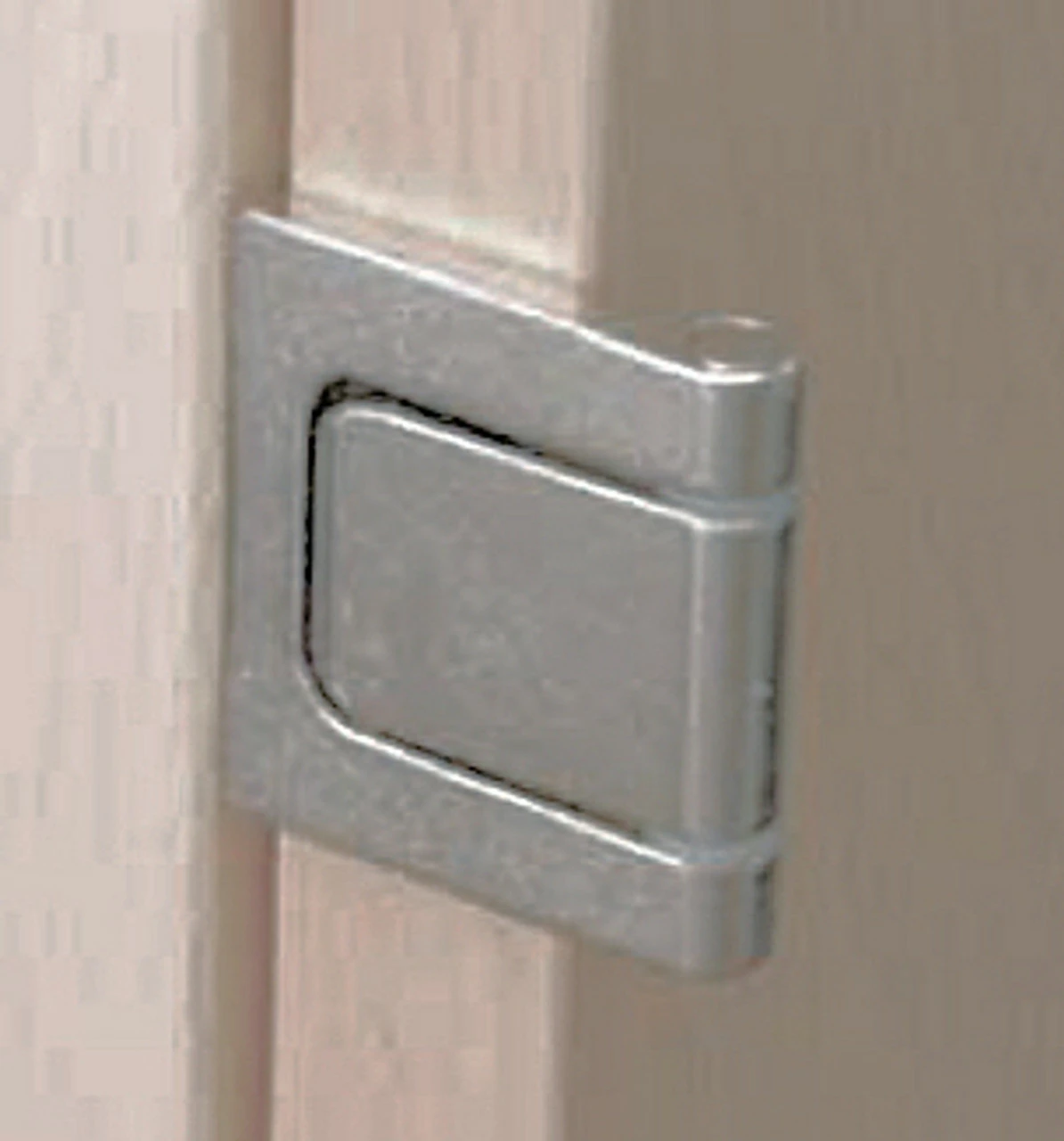

270 Degree Hinge Commercial Quality DL-C1290-NP

270 Degree Full Overlay Nickel Plated Hinge, 1 Per Pkg includes One Hinge With Attached Plate, One Nylon Double Insert And Two Dowels
Standard nylon dowel screw inserts 10.5 mm dia. x 11.7 mm tall for cup and 5.65 mm dia. inserts for cabinet wall plate section of hinge. These are not necessary, but an added feature for those who wish to use them.
Ideal For Entertainment Furniture Doors
Snaps shut to secure closed door
270 degree Opening
Steel Base Material

• PLEASE NOTE: unlike most European hinges, part of the hinge is visible along the edge of the door when the door is in the closed position.
• Depth of metal cup 11.3mm ( 7/16″)
• Cup diameter 35mm
• Opening 270 degrees
• 32mm standard 0 mounting plate
• NOT Self closing But “Snaps” Securely Closed

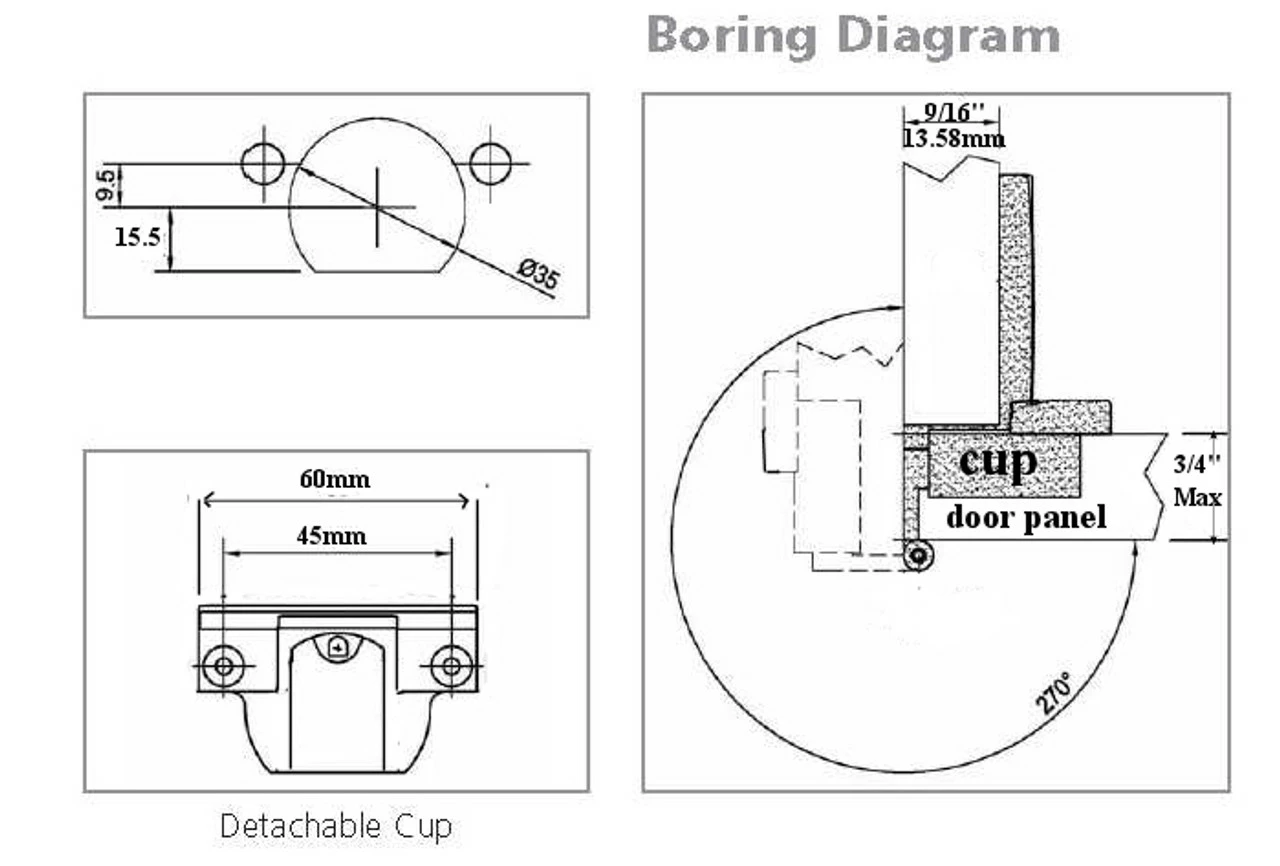

• Thickness of door 3/4″Recommended ( 5/8″ is dangerously close to boring the cup hole through) and sidewall thickness from 1/2″ to 9/16″ maximum
• Finish: Nickel Plated

DL-C1290-NP

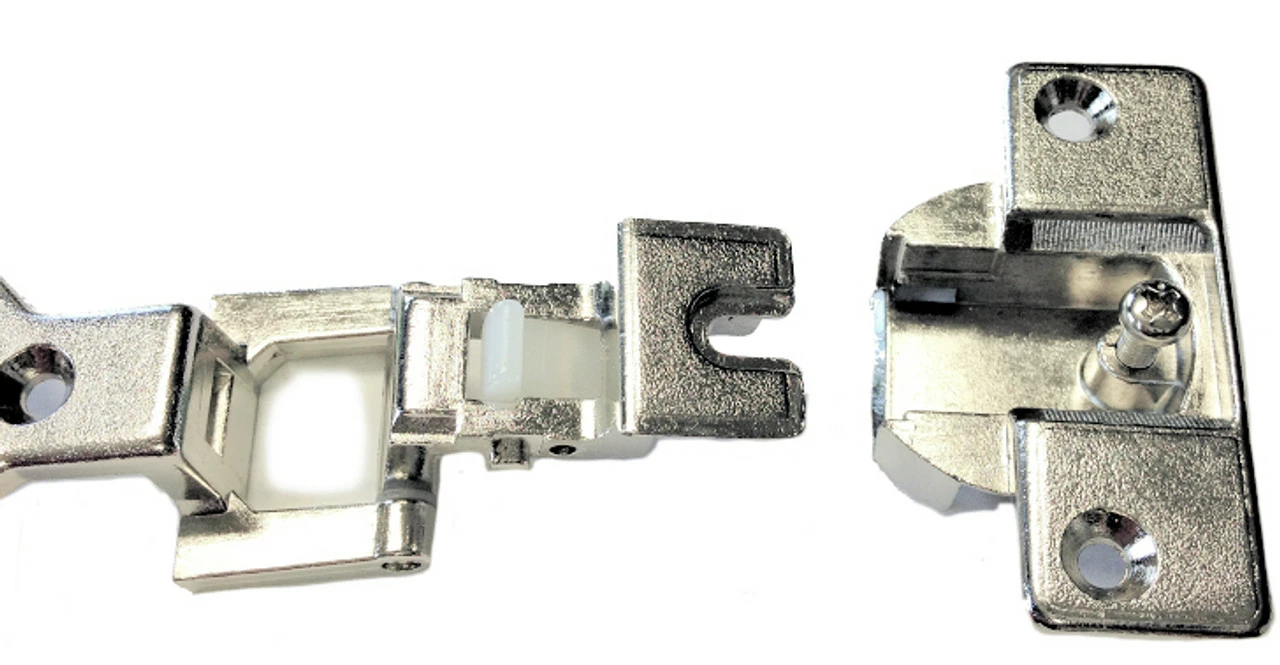

Detachable Hinge Cup Makes Door Easily Removable Screws not included. Use #8 screws. Similar to the H71050-NP-A from Liberty Hardware D. Lawless
