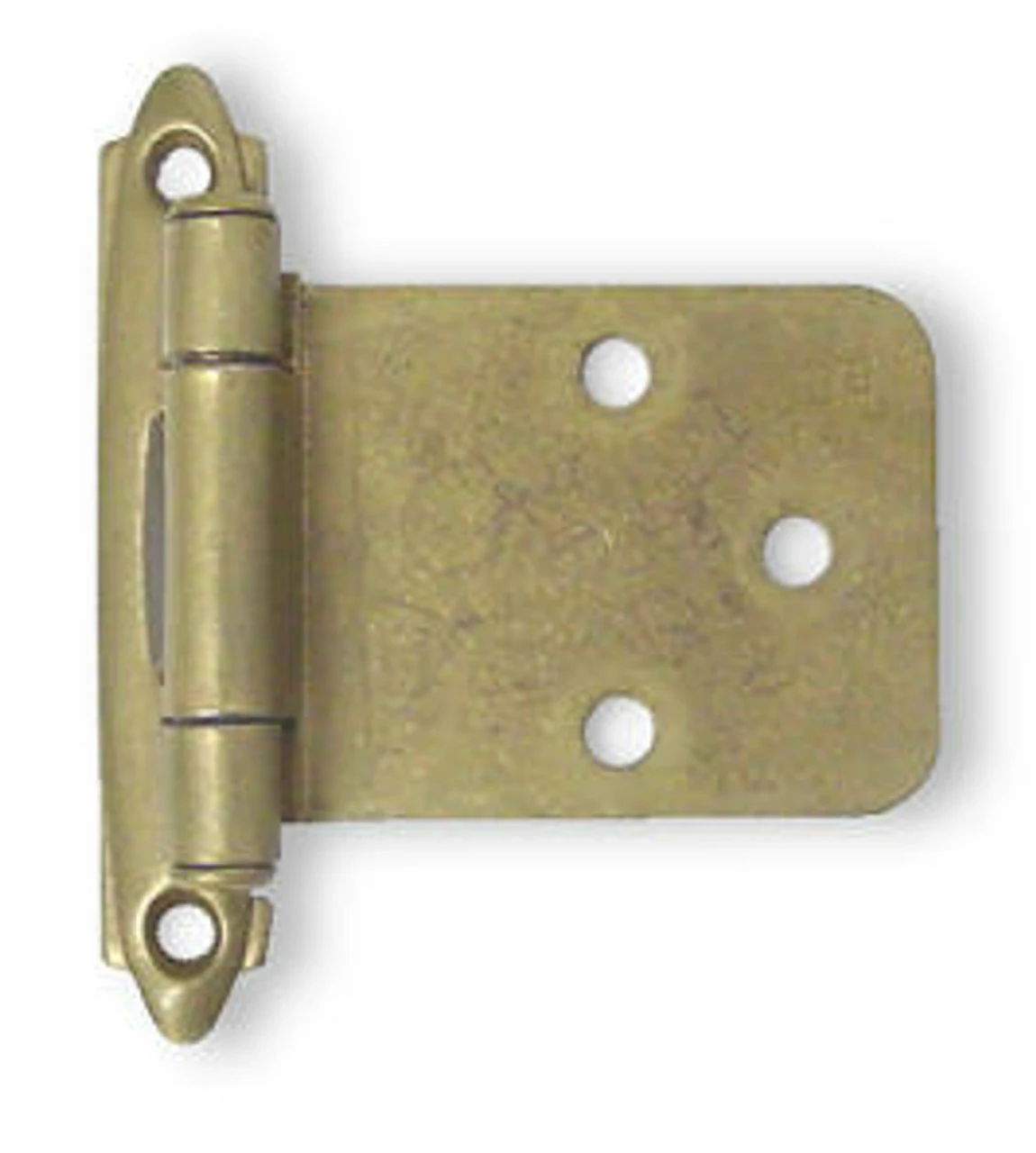

Amerock Extended Wing (relocates Holes) Variable Overlay Single Hinge HAM-CM7640-BB

This hinge with extended cabinet wing will cover-up and solve the problem of replacement where old screw holes do not match anything or are stripped out.
Burnished Brass Semi-concealed, Self closing,variable overlay hinge.

• Base Wing Centers: 2 1/8″ (54 mm)
• Base Wing Dimensions: 2 3/4″L x 1/2″ W(70 mm x 13 mm)
• Knuckle Projection: 5/8″ (16 mm)
• Door Wing Centers: 1″ W and 3/4″ Diag.(25.4 mm and 19 mm)
• Door wing centers from base of knuckle:Center 1 5/8″ x 7/8″ from base of knuckle
• Door Wing Dimensions: 1 1/2″W x 1 3/4″L (38.1 mm x 44.45 mm)
• Door Wing Projection: 1/16″ (1.6 mm)
• Inset: none
• Finish: Burnished Brass

HAM-CM7640-BB

SEE TECHNICAL INFORMATION FOR CORRECT SCREWS.
