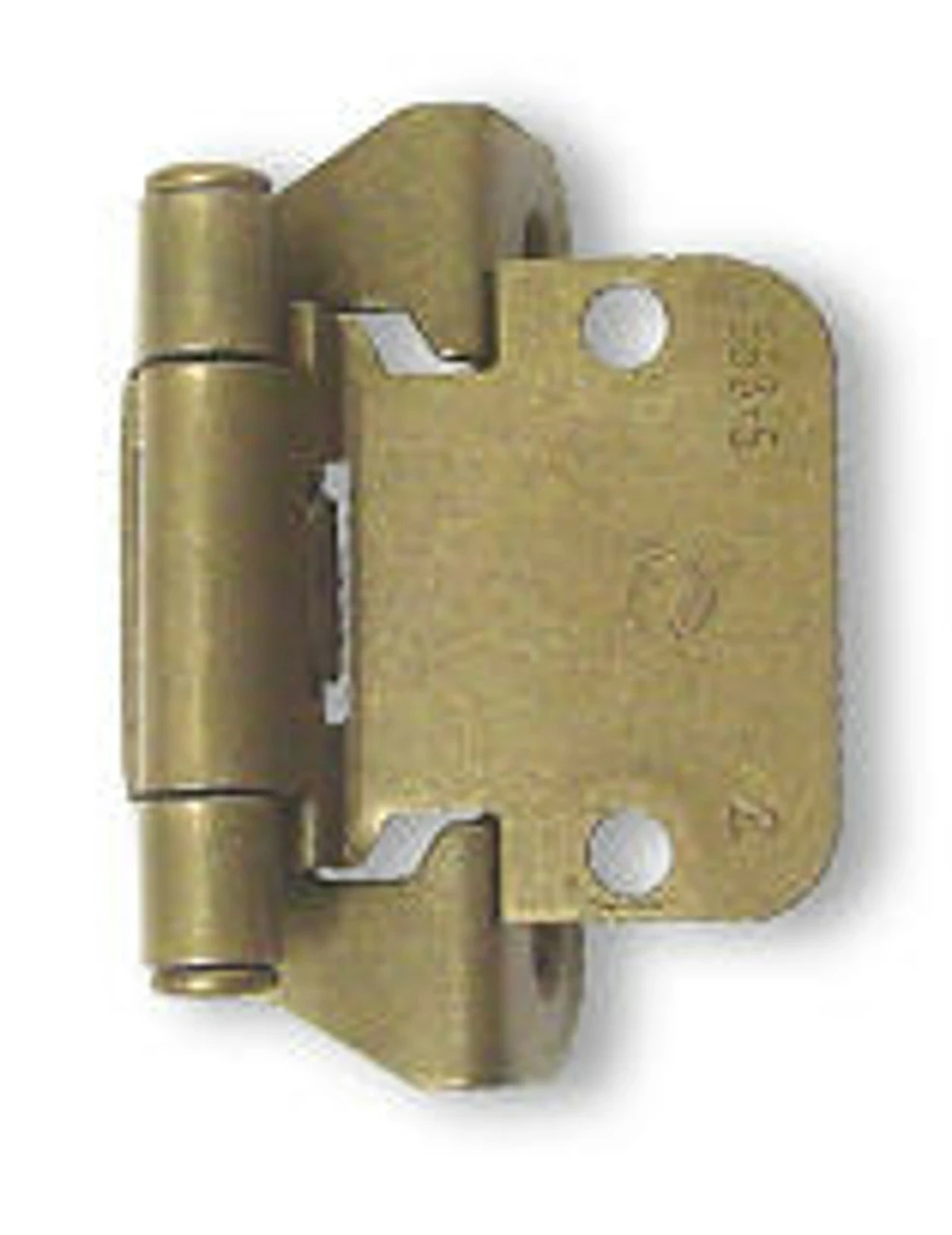

Amerock Hinge Single 1/4″ Overlay Antique Brass Semi-Wrap HAM-LD7563-BB

1/4″ Overlay, antique brass,partial wraparound,self closing hinge. Single hinge without screws.

• Base Wing Centers: 1-1/2 (38.1 mm)
• Base Wing Dimensions: 2 1/4″ x 3/4″ (57.15 mm x 19.05 mm)
• Knuckle Projection: 5/8″ (15.88 mm)
• Door Wing Centers: 1-3/16″ (30.16 mm)
• Door Wing Dimensions: 1-1/8″ x 1-1/2″ (28.58 mm x 38.1 mm)
• Door Wing Projection: 1/16″ (1.6 mm)
• Overlay: 1/4″
• Finish: Antique Brass
  Accepts (2) #6 screws in the frame wing and (2) #5 screws in the door wing, not included.

HAM-LD7563-BB
