Amerock Premium Single Hinge For Doors 3/4″ Mounted Flush Burnished Brass 2 1/2″

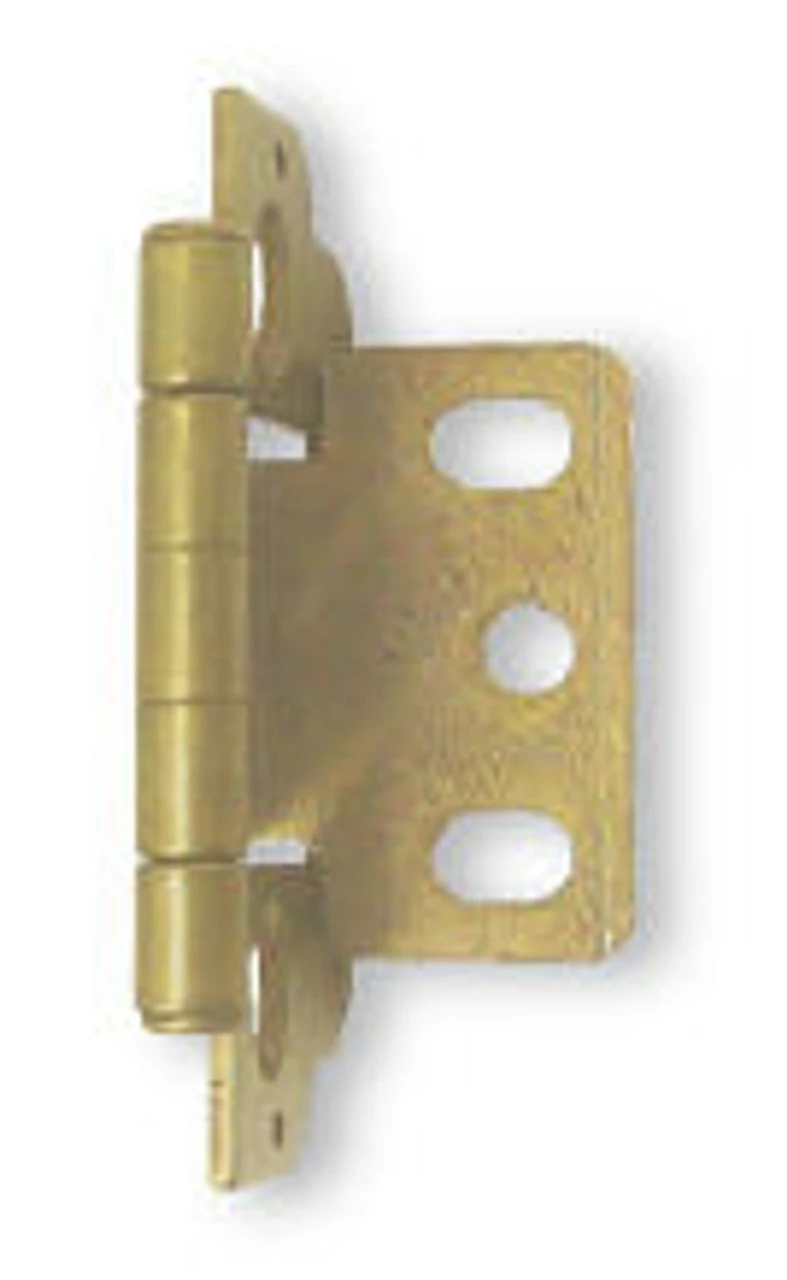

Premium Burnished Brass non-mortise wraparound hinge.
This is a non-mortise, partial wrap-around (wraps around the back of the door for extra support) with decorative ball finials. This hinge is for a 3/4″ door mounted flush to a face frame or frame-less style cabinet. The hinge has 4 adjustable slots for screws and comes with the screws necessary for mounting. The hinge can be adjusted using the slotted screw holes and locked into place using the non-adjustable slots. Think butt hinge with extra support, and you’ll understand how this hinge functions.

• Base Centers: 1 5/8″ (41 mm)
• Base Dimensions: 2-1/2″ x 1-1/8″ (63.5mm x 28.58mm)
• Leaf Centers: 1″ (25.4 mm)
• Leaf Dimensions: 1-1/2″ x 1″ x 3/4″ (38.1 mm x 25.4mm x 19.05mm)
• Finish: Burnished Brass

HAM-PK3180T-BB

Door gap as small as 1/16″ because of no-mortise style Suitable for 3/4″ thick doors without mortising, mounted on a 3/4″ frame. These hinges work well for entertainment center doors with “articulated” doors. Purchasing a single hinge. Made in USA.
