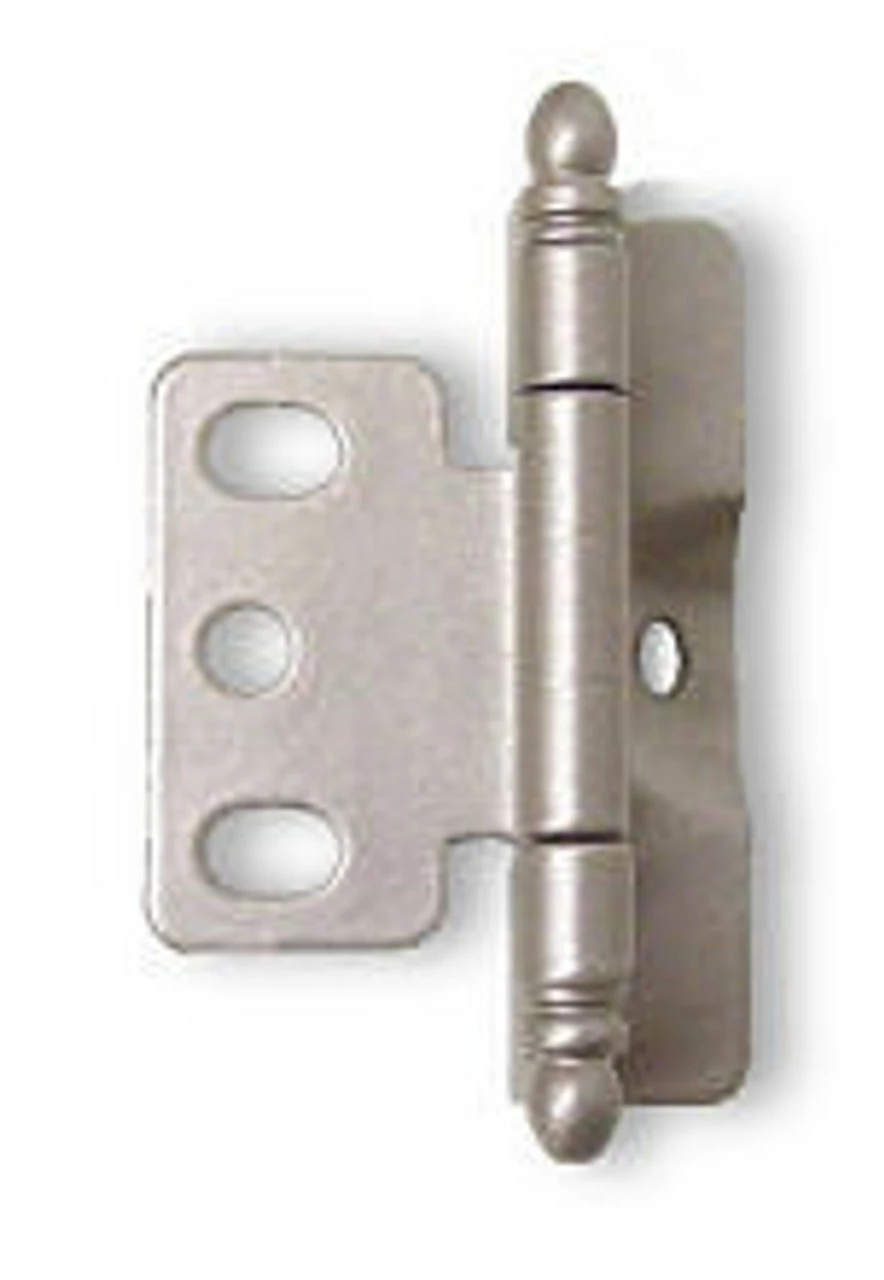

Amerock Wrap-Around Non-Mortise Single Hinge For 3/4″ Flush Doors Champagne Finish 2 1/4″

Premium Champagne non-mortise wraparound hinge. This is a non-mortise, full wrap-around (wraps around the back of the door and the face of the cabinet for extra support) with decorative ball finials. This hinge is for a 3/4″ door mounted flush to a face frame style cabinet. The hinge has 4 adjustable slots for screws and comes with the screws necessary for mounting. The hinge can be adjusted using the slotted screw holes and locked into place using the non-adjustable slots.This hinge is for use on a face-frame style cabinets. Not for overlay doors or for frameless cabinets. Think butt hinge with extra support, and you’ll understand how this hinge functions.

• Base Centers: 1 5/8″ (41 mm)
• Base Dimensions: 2-1/4″ x 7/8″ x 1/2″ (57.15mm x 22.23mm x 12.7mm)
• Leaf Centers: 1″ (25.4 mm)
• Leaf Dimensions: 1-1/2″ x 1″ x 3/4″ (38.1 mm x 25.4mm x 19.05mm)
• Finish: Champagne

HAM-PK3175TB-CP

Door gap as small as 1/16″. Suitable for 3/4″ thick doors without mortising, mounted on a 3/4″ frame. These hinges work well for entertainment center doors with “articulated” doors Door gap as small as 1/16″ because of no-mortise style. Purchasing a single hinge. Made in USA. Amerock
