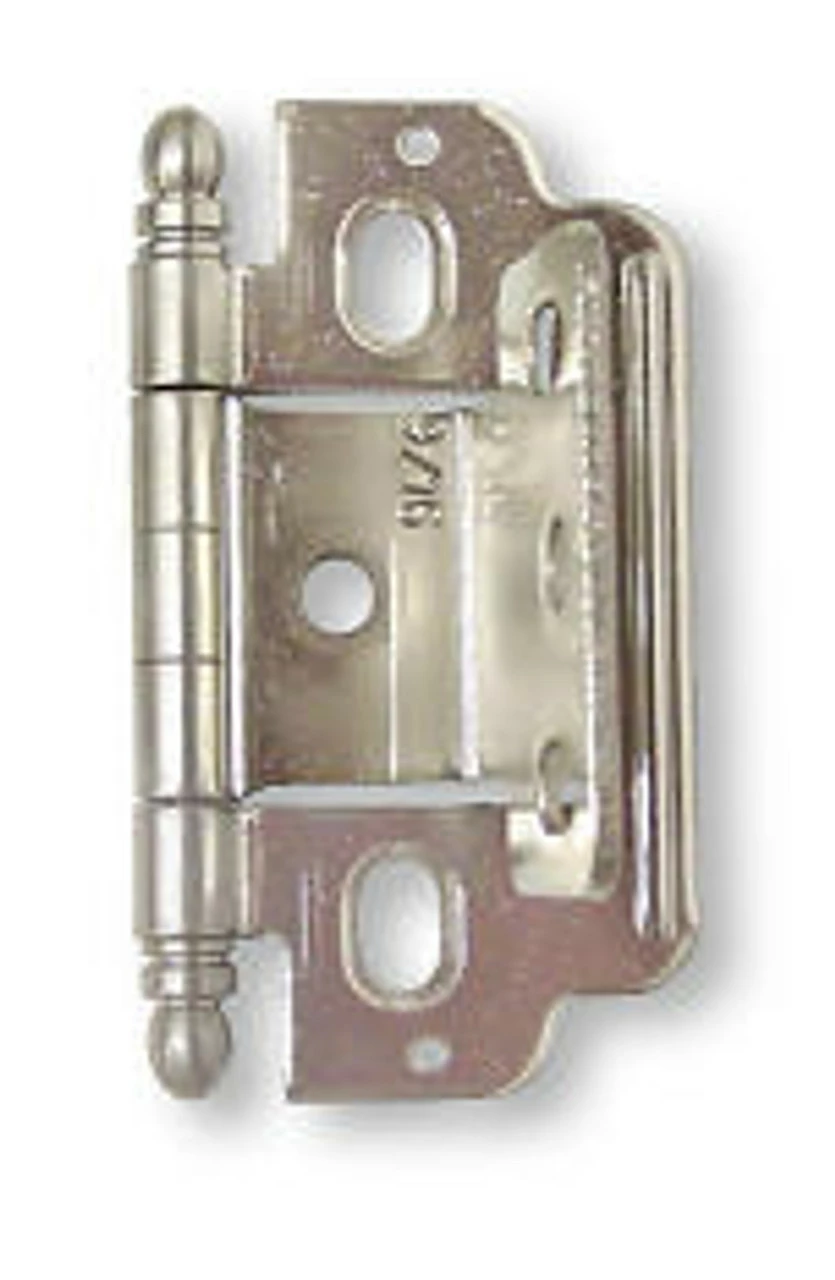

Amerock Wrap-Around Single Hinge For 1/2″ To 9/16″ Flush Doors Sterling Nickel 1 1/2″

Premium sterling nickel non-mortise wraparound hinge. This is a non-mortise, partial wrap-around (wraps around the back of the door for extra support) with decorative ball finials. This hinge is for a 1/2″ door mounted flush to a face frame style cabinet. The hinge has 4 adjustable slots for screws and comes with the screws necessary for mounting. The hinge can be adjusted using the slotted screw holes and locked into place using the non-adjustable slots. This hinge is for use on a face-frame style cabinets. Not for inset or overlay doors or for frame-less cabinets. Think butt hinge with extra support, and you’ll understand how this hinge functions.

• Base Centers: 1 5/8″ (41 mm)
• Base Dimensions:1-1/8″ x 1-1/2″ (28.58mm x 38.1mm)
• Leaf Centers: 1″ (25.4 mm)
• Leaf Dimensions: 1-1/2″ x 1-1/8″ x 9/16″ (38.1 mm x 28.58mm x 14.28mm)
• Finish: Sterling Nickel

HAM-CM3180RB-G9

Door gap as small as 1/16″. Suitable for 1/2″ thick doors without mortising, mounted on a 3/4″ frame. Made in USA.
