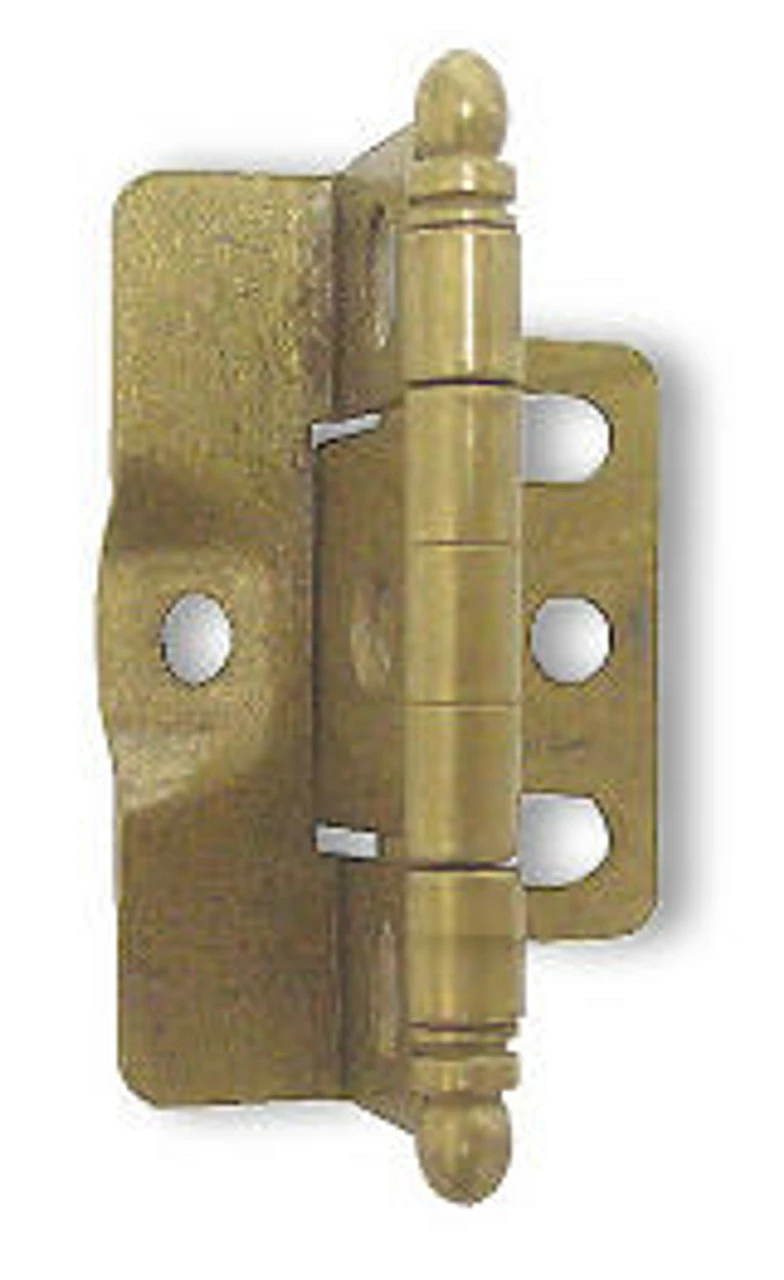

Amerock Wrap-Around Single Hinge For 3/4″ Doors Non-Mortise Burnished Brass 2 1/4″

Premium Burnished Brass non-mortise wraparound hinge. This is a non-mortise, full wrap-around (wraps around the back of the door and the back of the frame for extra support). This hinge is for a 3/4″ door mounted flush to a face frame style cabinet. The hinge has 4 adjustable slots for screws and comes with the screws necessary for mounting. The hinge can be adjusted using the slotted screw holes and locked into place using the non-adjustable slots.This hinge is for use on a face-frame style cabinets. Not for overlay doors or for frame-less cabinets. Think butt hinge with extra support, and you’ll understand how this hinge functions. Single hinge comes with screws.

• Base Centers: 1 5/8″ (41 mm)
• Base Dimensions: 2-1/4″ x 3/4″ x 5/8″ (57.15mm x 19.05mm x 15.88mm)
• Leaf Centers: 1″ (25.4 mm)
• Leaf Dimensions: 1-1/2″ x 1″ x 7/8″ 13/16″ (38.1 mm x 22.23mm 20.64mm)
• Finish: Burnished Brass

HAM-PK3175UB-BB

Door gap as small as 1/16″. Suitable for 3/4″ thick doors without mortising, mounted on a 3/4″ frame. Purchasing single hinge. Made in USA.
