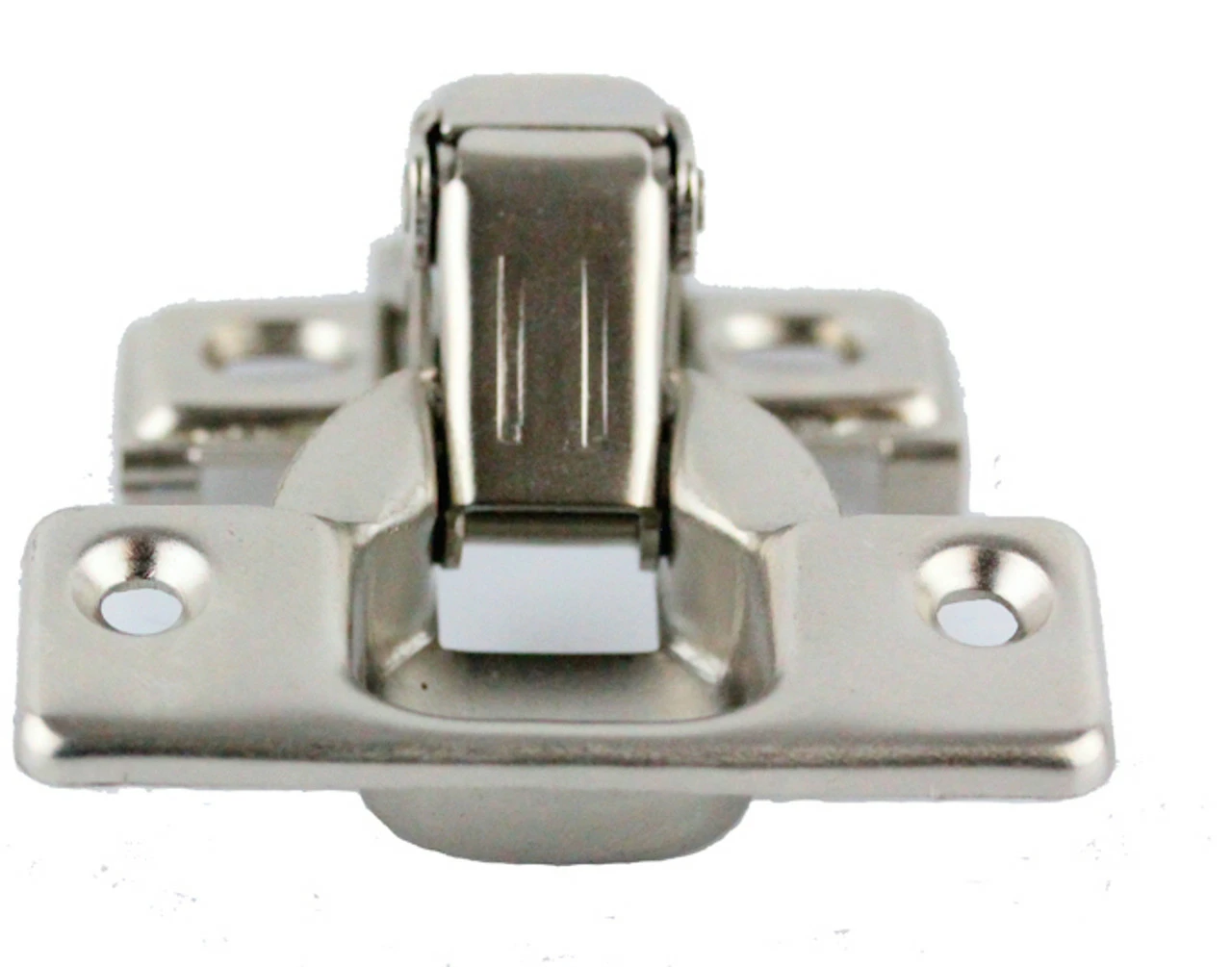

Face Frame 5/8" Overlay 2-Piece Hinge & Plate

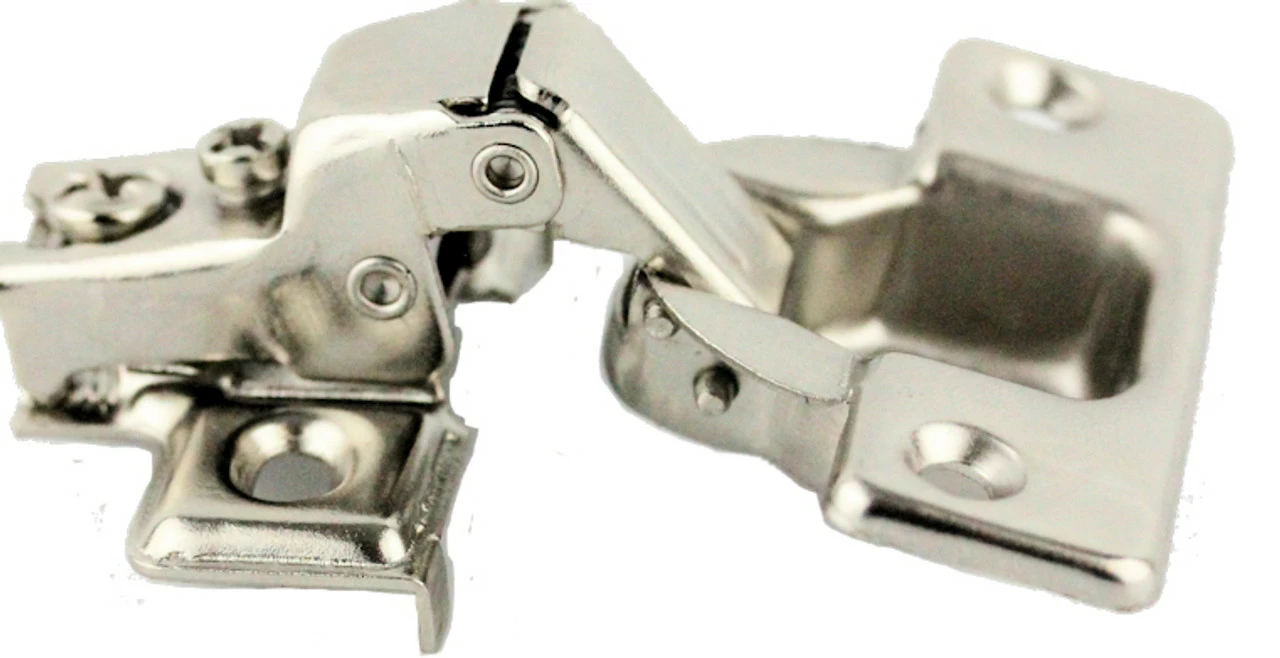

Face Frame 5/8" Overlay 2-Piece Hinge & Plate - Image 2

Face Frame 5/8″ Overlay 2-Piece Hinge & Plate

Original price was: $12.00.Current price is: $8.40.

SKU: ZGXHD 14749 Categories: Cabinet Hinges, European - Concealed Tags: D. Lawless Hardware, European - Concealed

Shop the Best Quality Online
Shop quality, shop with us.
Shop with Confidence, Pay Safely
Reliable Payments for Reliable Shopping

Description
Reviews (0)

Concealed Hinge. 35mm Face Frame Style Euro hinge. Face Frame 5/8″ Overlay. Includes mounting plate. Adjustable 1/4″ vertically and 1/4″ horizontally. Adjusting this hinge vertically 1/4″ will make the overlay about 3/8″. Standard 45mm screw spacing. Cup depth 11.3mm. 105 degree opening. 5/8″ overlay with supplied mounting plate. Comparable in function ONLY to H71039-NP-A mounting plate and H71037-NP-A hinge, from Liberty Hardware. Similar to the Brainerd hinge pair H811SMV-NP-C Drill door frame 3-7mm from edge. Door thickness 16-25mm. Self-Closing. Nickel-plated steel. Priced each.

Comes with screws.

D Lawless Hardware product.

For Complete Mounting Instructions and Templates For Drilling Click Here for the .PDF file These are generic instructions. Please match your hinge against the drill pattern on the template before drilling any holes.

For replacement screws we suggest #6 x 5/8″ Uni-Chrome Screws.
