Liberty 1-1/8″ To 1-1/4″ Overlay Hinge – 6 Way Adjustable LQ-H70247-NP-A

Easy to install one-piece face frame Euro hinge for full overlay doors partial wrap face frame plate.

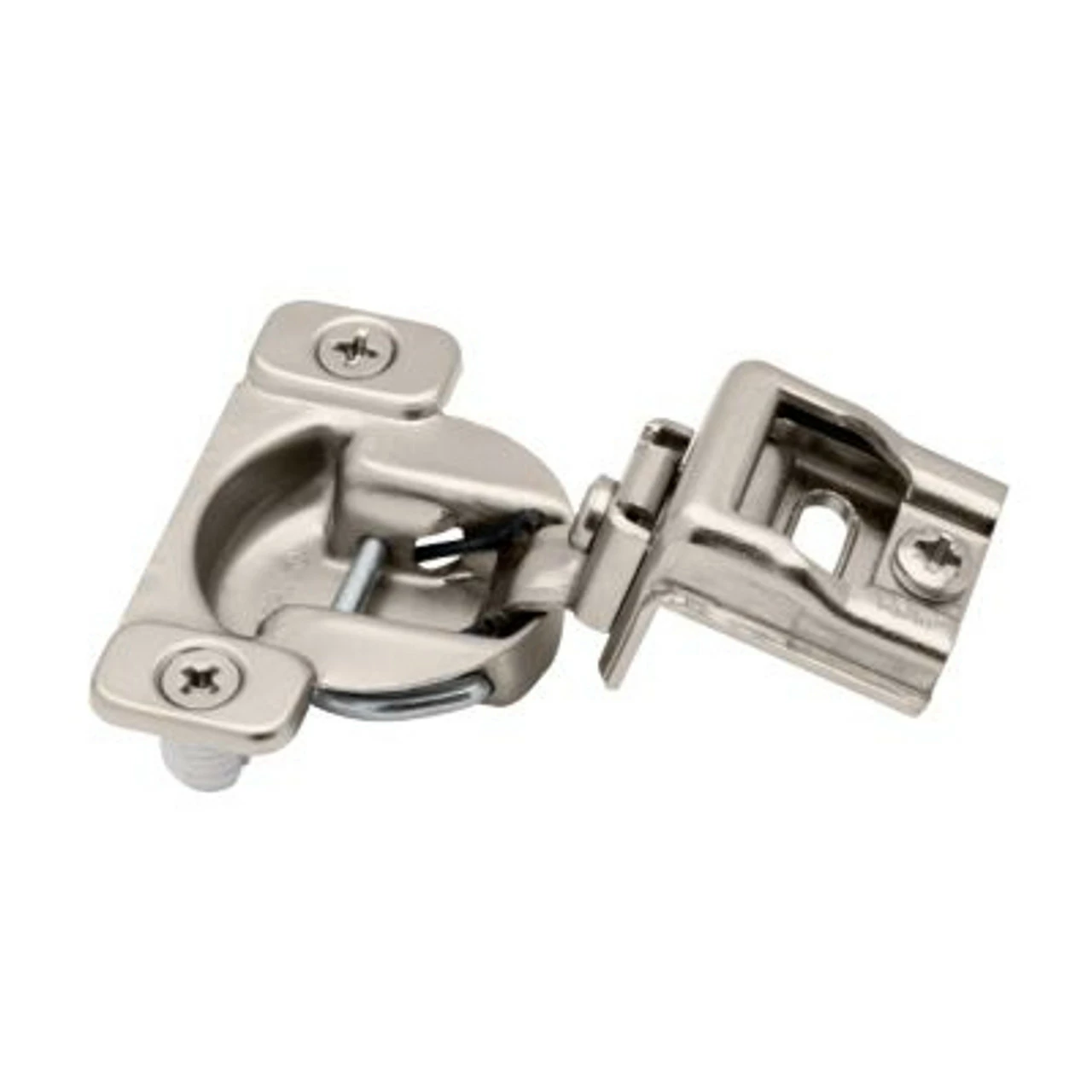

• Builder’s European style compact one piece hinge. Mounting plate and hinge are one easy to install unit.

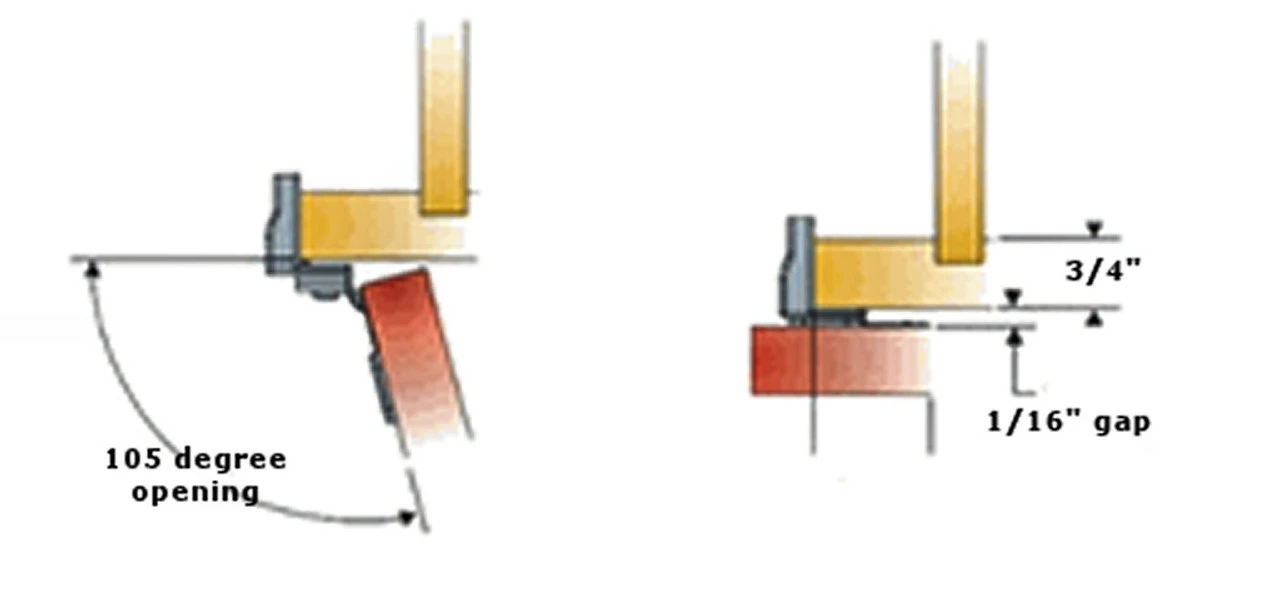

• Opening angle is 105 degrees.
• Self closing.
• Designed for face frame cabinets with overlay doors 1-1/4″ overlay.
• Hinge is for cabinets with a 3/4″ thick face frame.

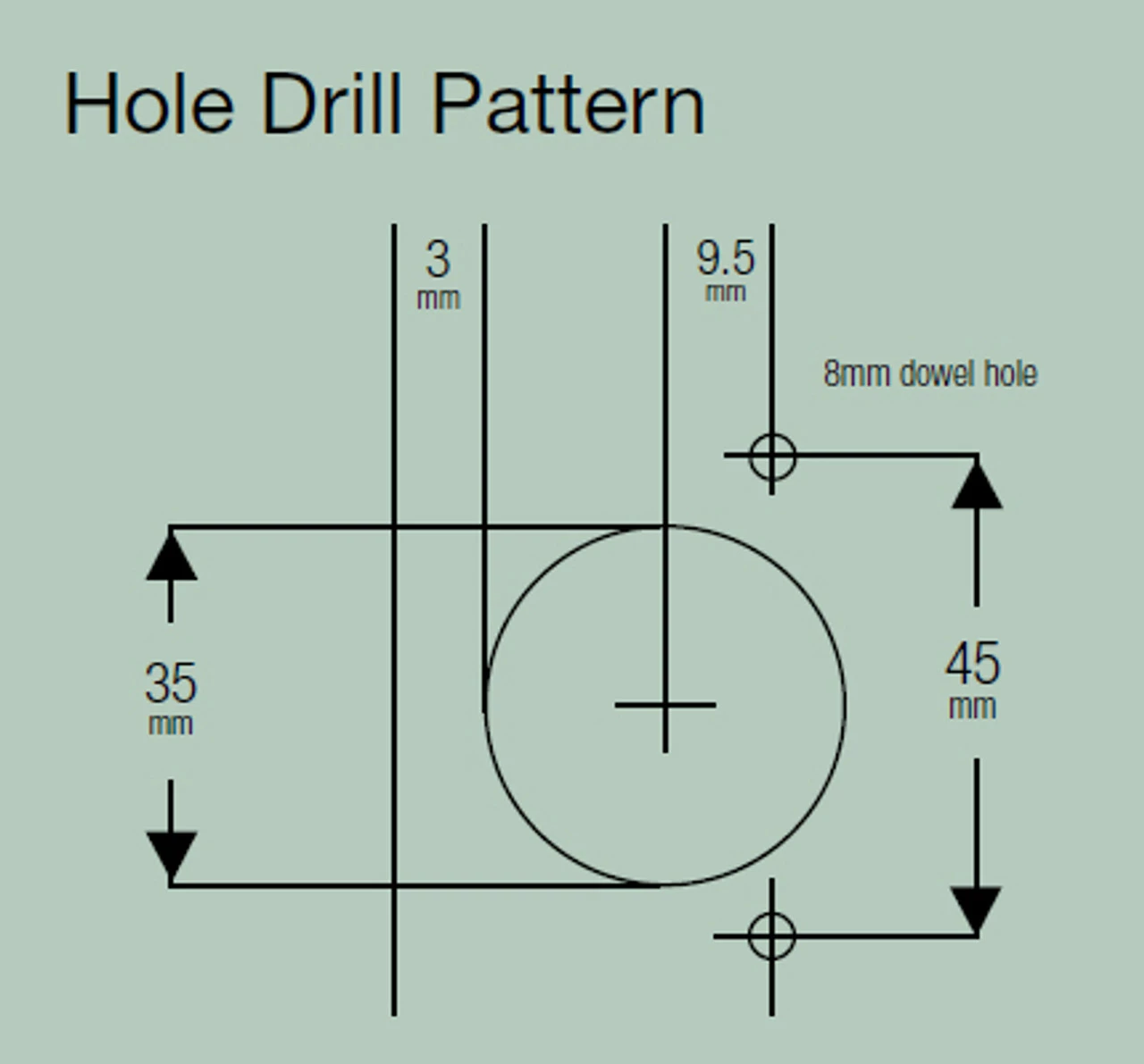

• Cup diameter 1-3/8″. Cup depth 7/16″. Bore distance (k) 3mm for 1-1/8″ overlay or 7mm for 1-1/4″ overlay.
• Comes with screws in the press-in dowels. Dowels are used in MDF or particle board. If mounting in solid wood, remove the dowels and use only the wood screws.
• Mounting screws not included for the face frame part. Each hinge requires one #6-7 screw to attach to the face frame.

You are purchasing one hinge with dowels.

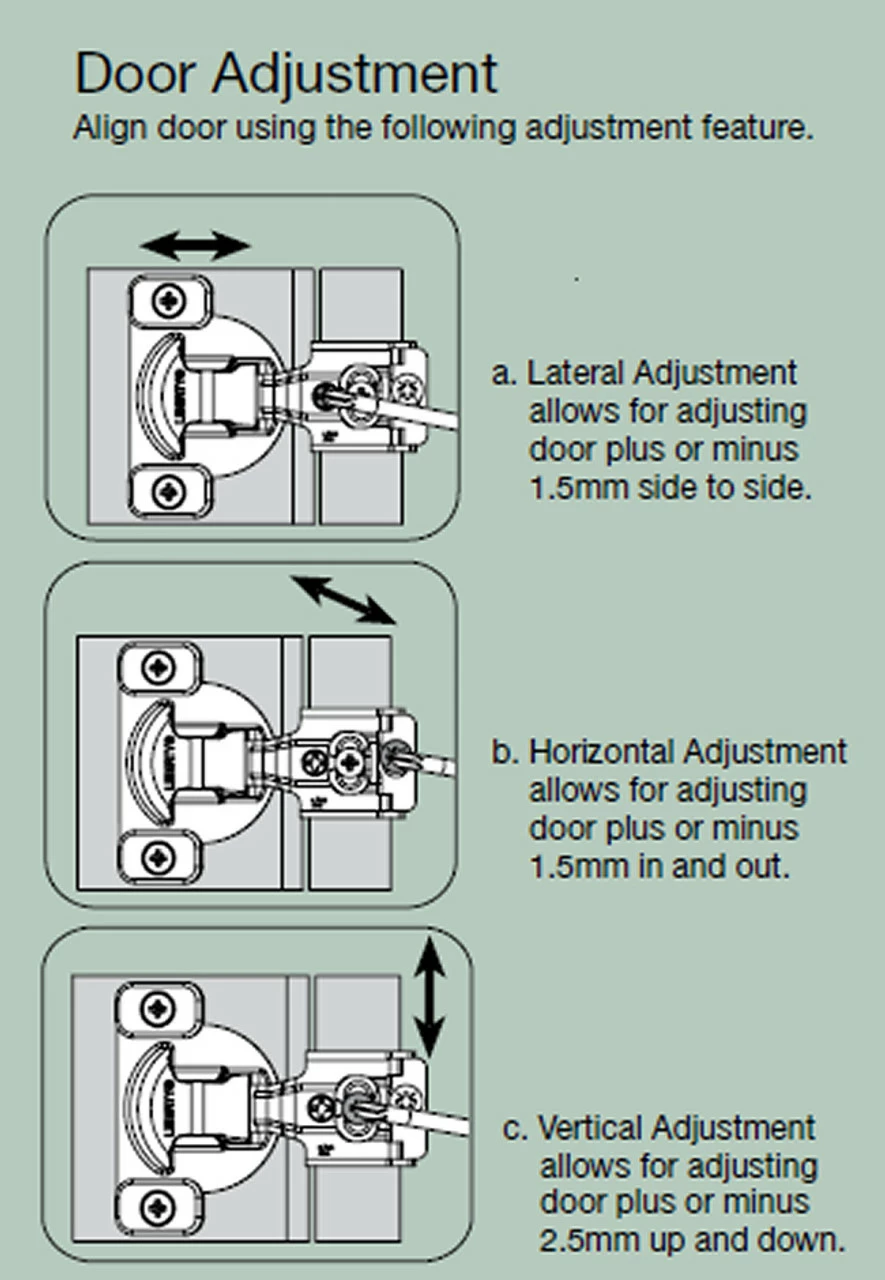

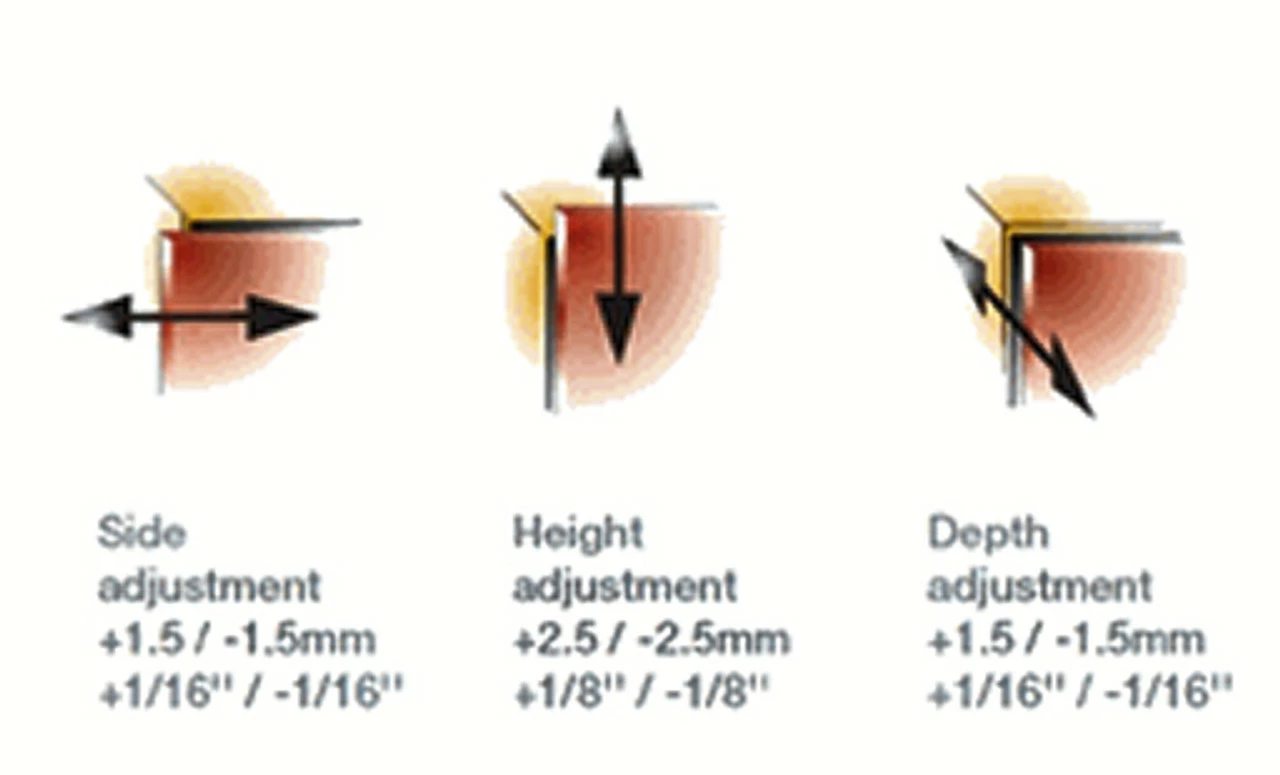

Nickel plated – 6-Way Adjustable – Liberty Hardware
