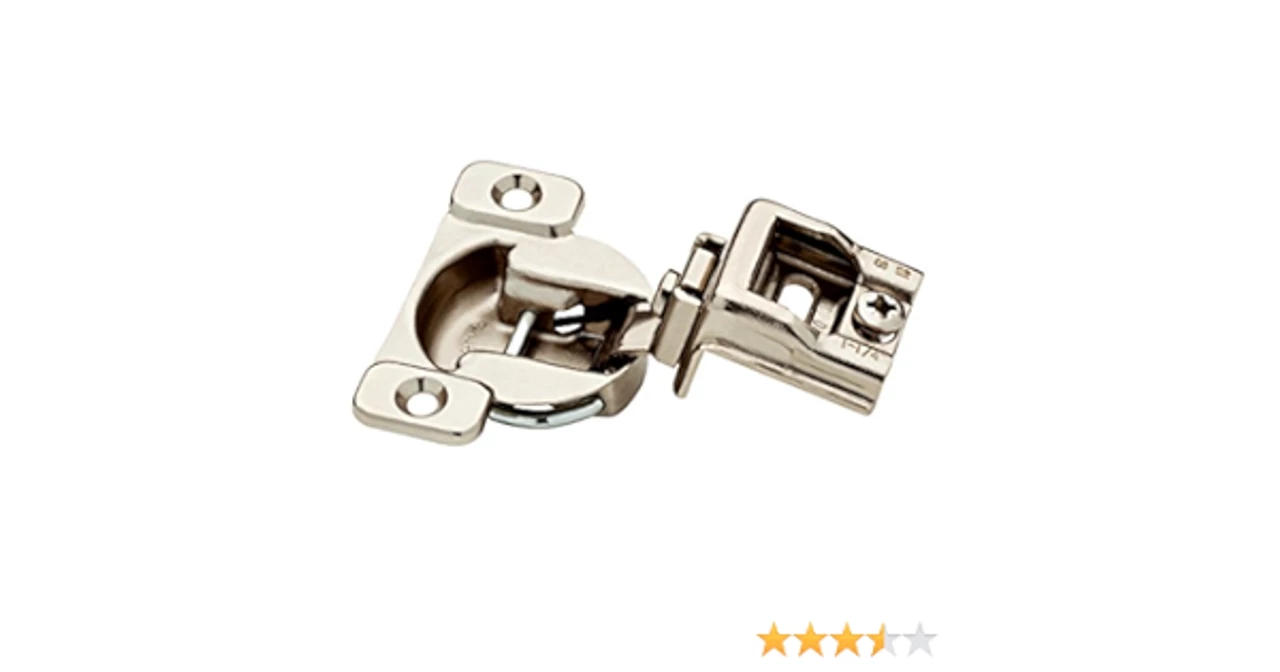

Liberty (12-Pack) 1-1/4 Inch Overlay Screw-On Concealed European Cabinet Door Hinge With 105 Degree

Easy to install one-piece face frame Euro hinge for full overlay doors partial wrap face frame plate.

Builder’s European style compact one piece hinge. Mounting plate and hinge are one easy to install unit.
Opening angle is 105 degrees.
Self closing.
Designed for face frame cabinets with overlay doors 1-1/4″ overlay.
Hinge is for cabinets with a 3/4″ thick face frame.
Cup diameter 1-3/8″. Cup depth 7/16″. Bore distance (k) 3mm for 1-1/8″ overlay or 7mm for 1-1/4″ overlay.
Comes with screws in the press-in dowels. Dowels are used in MDF or particle board. If mounting in solid wood, remove the dowels and use only the wood screws.
Mounting screws not included for the face frame part. Each hinge requires one #6-7 screw to attach to the face frame.

You are purchasing 12 Hinges with dowels.

Nickel plated – 6-Way Adjustable

LQ-H70247K-NP-R

Liberty Hardware
