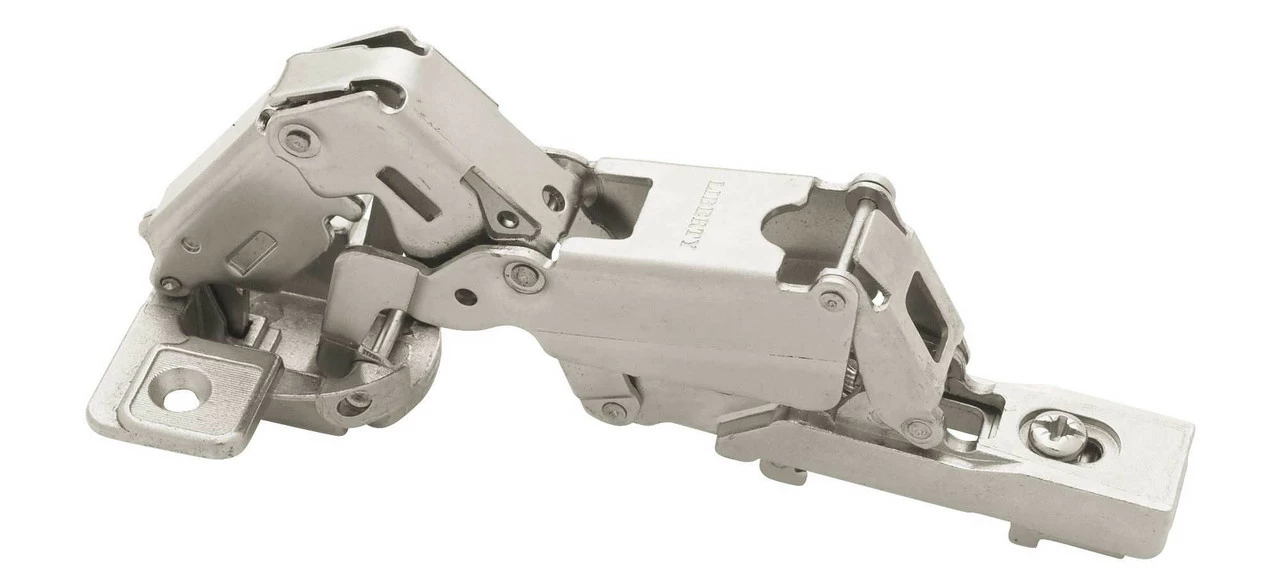

Liberty 165 Degree Easy Clip Hinge Half-Overlay 08 Crank H16013-NP-A

For cabinets without faceframes with overlay doors. 165 Degree Clip-On Euro Hinge. Gets door completely out-of-the-way for slide-outs and trays.
Half Overlay using 0 mm mounting plate

• TECHNICAL SPECIFICATIONS
• Depth of metal cup 11.3mm

• Cup diameter 35mm

• Opening 165 degrees

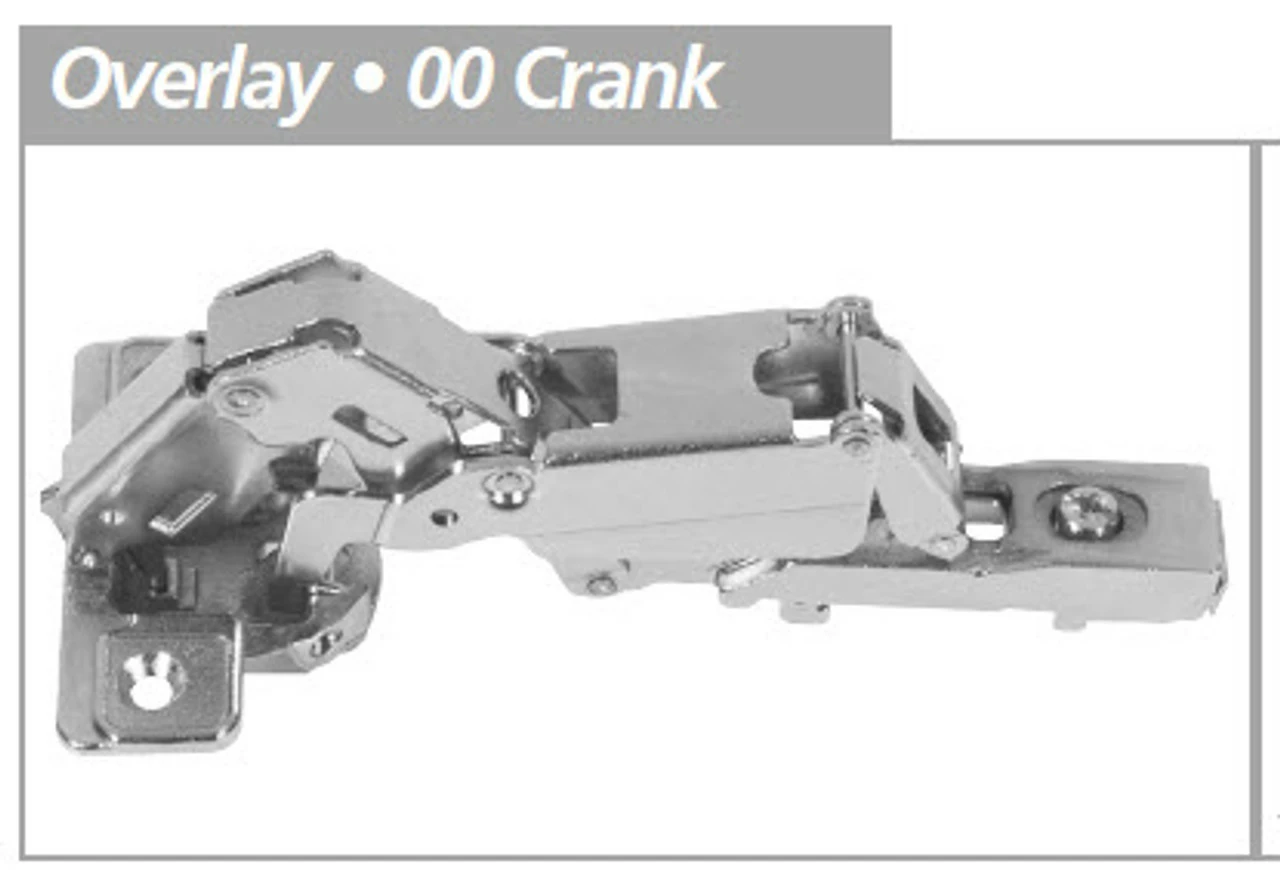

• 00 Crank overlay See Mounting Plates below

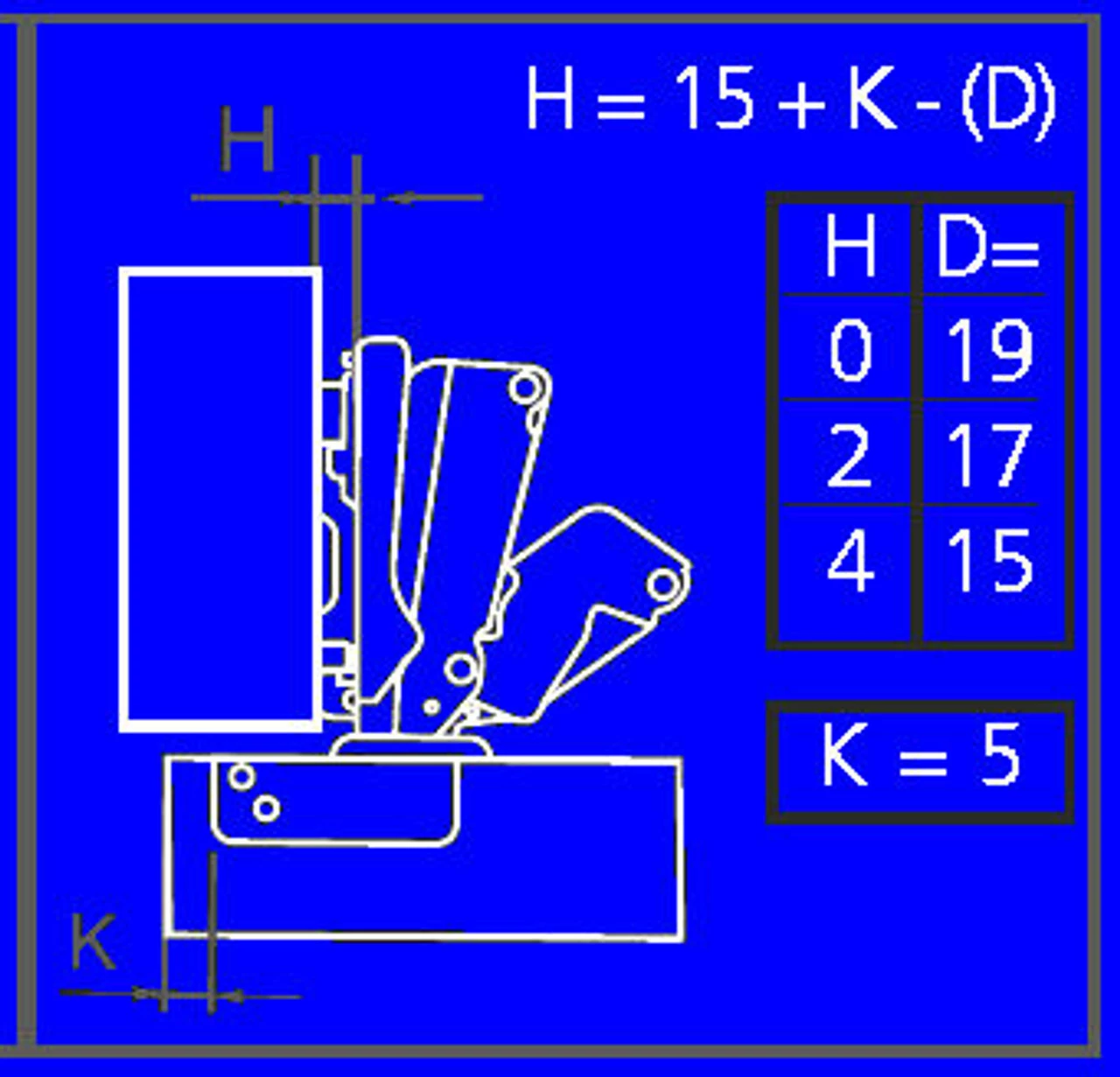

• Able to drill door (K) from 3 to 7 mm

• Self closing

• Thickness of door(t) from 16 to 26mm

• Finish: Nickel Plated

SEE TECHNICAL INFORMATION FOR CORRECT SCREWS. Mounting plates that can be used with this hinge:
Frameless For Wood Screws – 35mm
L-H71008-NP-A L-H71009-NP-A

Frameless With Euro Screws – 35mm
L-H71010-NP-A L-H71012-NP-A LQ-H16023-NP-A

Frameless Height Adjustable for Wood Screws – 35mm
L-H71013-NP-A L-H71014-NP-A L-H71015-NP-A

For Face Frame Cabinets – 35mm
L-H71035-NP-A L-H71036-NP-A LQ-H71051-NP-A
