Liberty 45 Degree Angle Concealed Hinge & Mounting Plate LQ-H16003-16004-NP

45 Degree Corner Hinge and mounting plate
Concealed self-closing Euro Hinge
Screw-on type

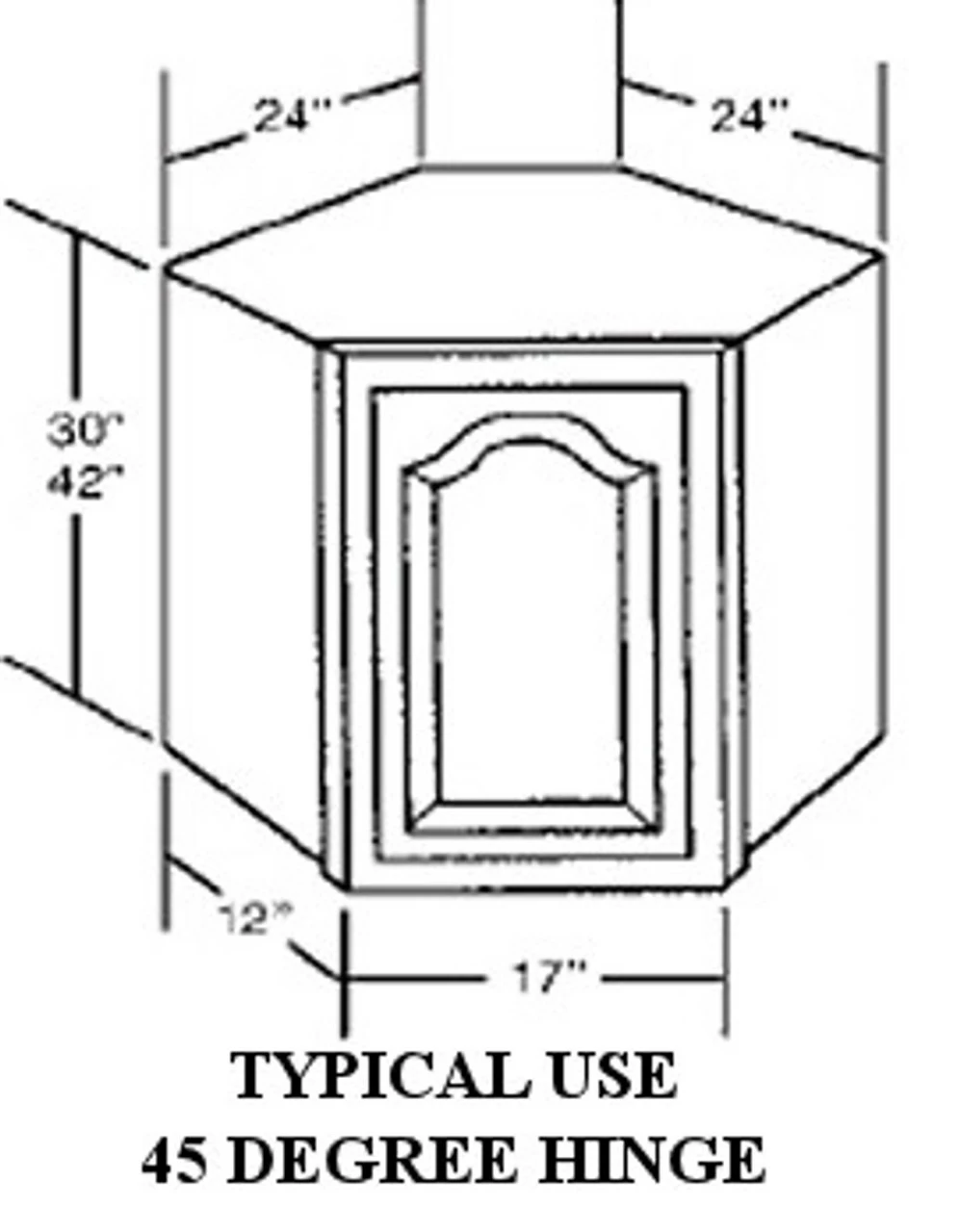

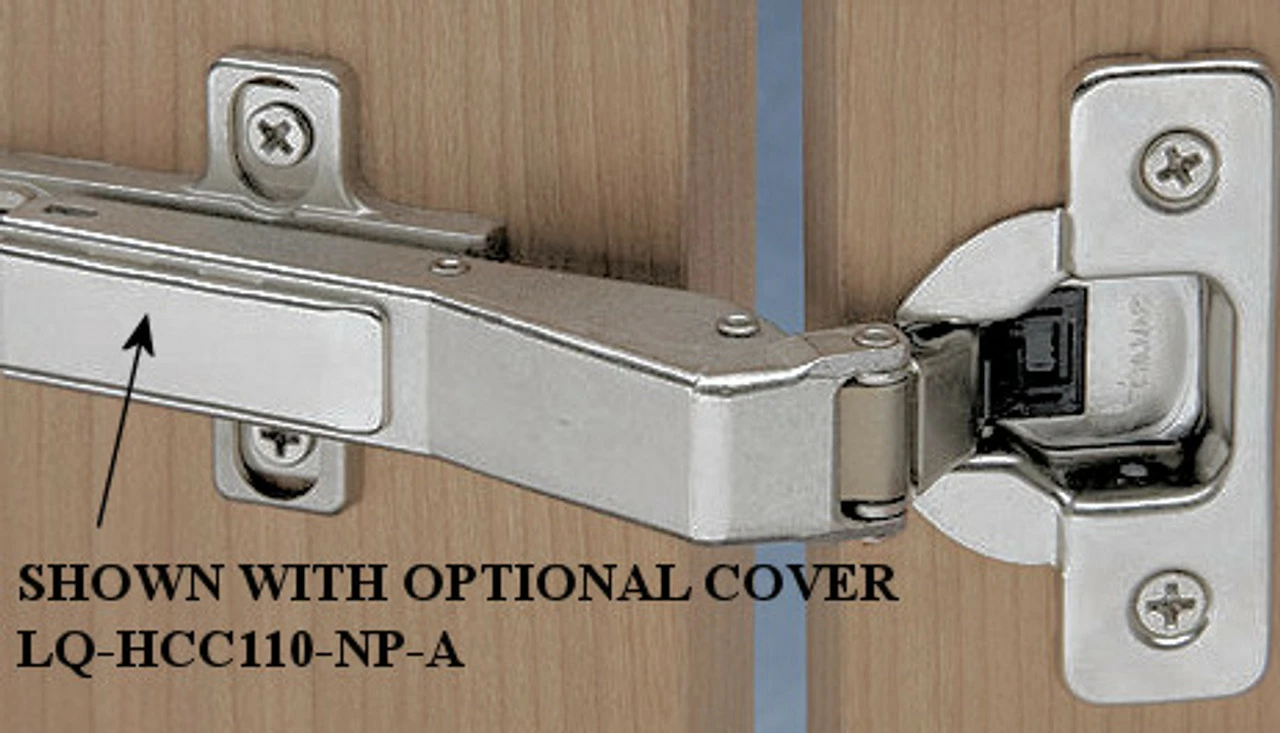

Angled arm is to allow the hinge to be mounted on the side gable
Fits beveled or square cut gable

• TECHNICAL SPECIFICATIONS
• Depth of metal cup 11.3mm

• Cup diameter 35mm

• Opening 95 degrees

• Able to drill door (k) from 3 to 7 mm

• Self closing

• Thickness of door(t) from 16 to 26mm

• Finish: Nickel Plated
  You are ordering one hinge and one mounting plate. Does not come with screws.

LQ-H16003-16004-NP

SEE TECHNICAL INFORMATION FOR INSTALLATION INSTRUCTIONS AND CORRECT SCREWS.
