Liberty 7/16″ Overlay Compact Hinge With Adjustable Soft Close LQ-H16021-NP-A & H05108-NP-A

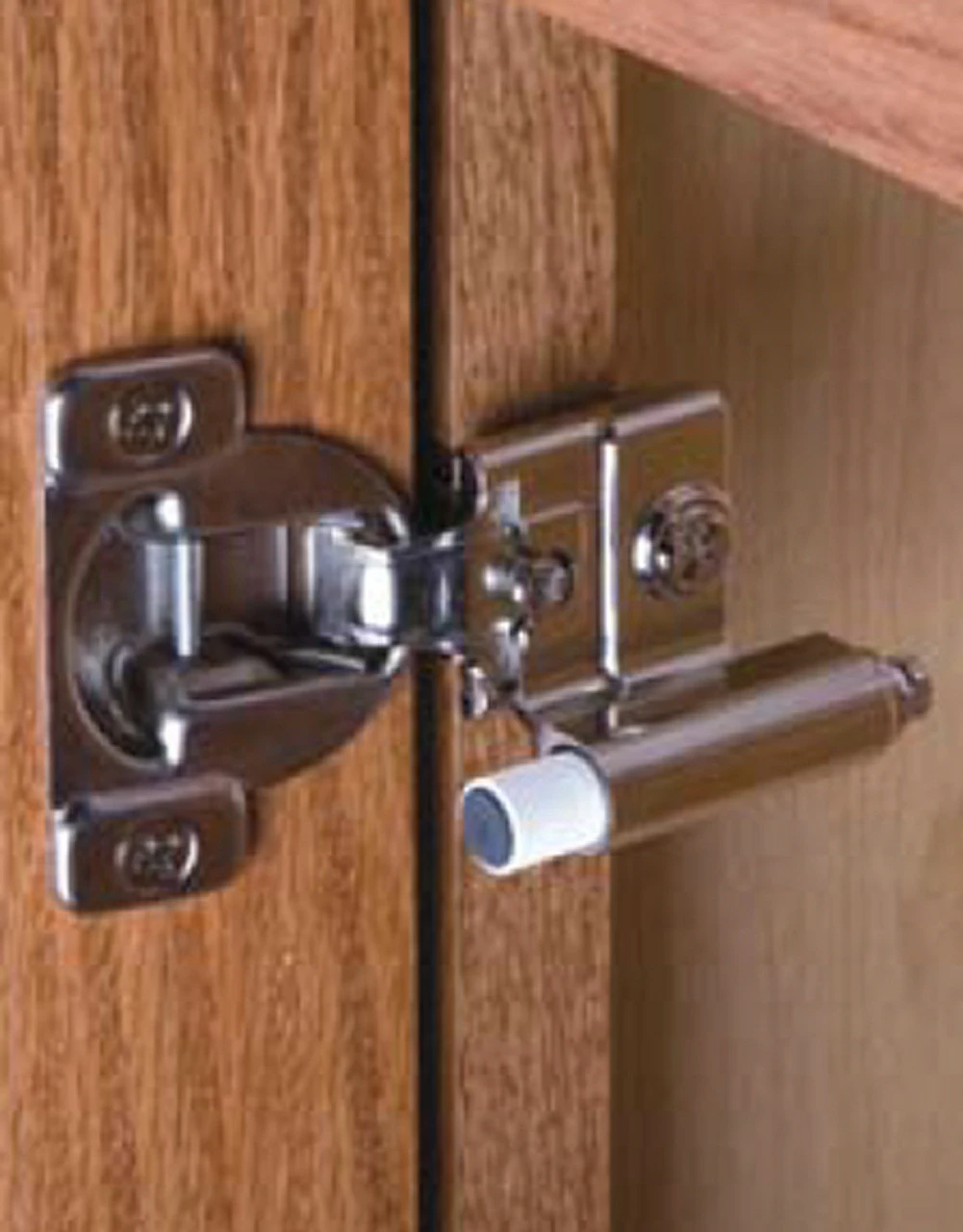

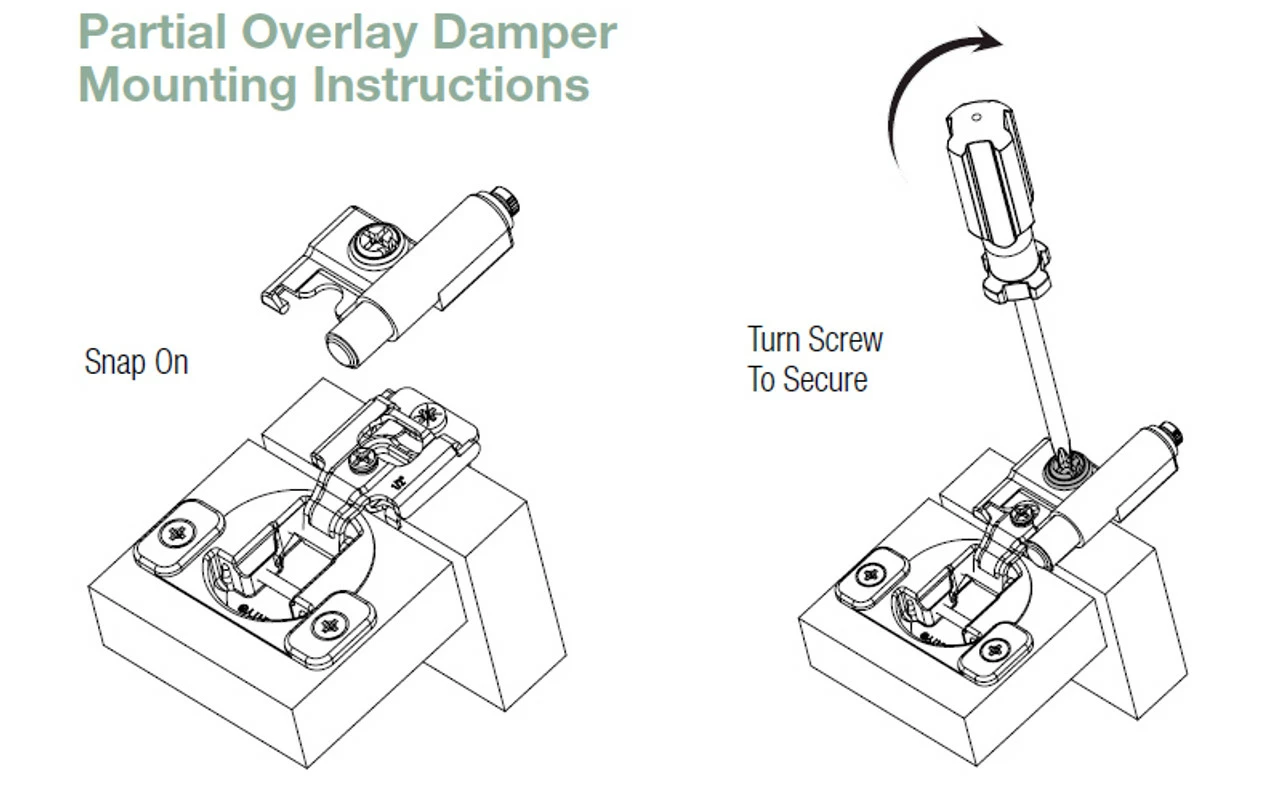

WOW — This barely pays for the hinge, but we have a serious overstock of these sets and have decided to make our problem into your opportunity. Upgrade your next projects at a great savings. Deluxe soft close door damper system attaches to liberty hardware 6-way adjustable compact hinge. This is an Included Easy to Add feature after hinges are already in place.

H05108-NP-A 7/16″ Overlay 6-Way Compact Hinge Information: Compact Euro 7/16″ Partial Overlay Face Frame Hinge with four prong base plate – One piece design makes mounting a snap. This is the economical standard euro used by commercial cabinetmakers.
6-Way Adjustable:
Height adjustment 7/64″ (plus or minus 2.5mm
Depth adjustment by eccentric cam 1/64″ (minus 0.5mm) 7/64″(plus 2.5mm)
Side adjustment cam 1/16″ (plus or minus 1.5mm)

Your are purchasing one hinge with dowels and one soft close adapter unit

• Depth of metal cup 11.3mm

• Cup diameter 35mm

• Cup centers 1-3/4″

• Opening 106 degrees with (k) max 2.5mm

• 7/16″ overlay

• Drill door (k) from 2.5mm

• Self closing

• Thickness of door(t)from 16 to 19mm(11/16″ to 3/4″)

• Finish: Nickel Plated

LQ-H16021-NP-A-H05108-NP-A
Liberty Hardware
