Liberty Compact One-Piece 7/16" Overlay 2-Way Adjust Hinge LQ-H05105-NP-A

Liberty Compact One-Piece 7/16" Overlay 2-Way Adjust Hinge LQ-H05105-NP-A - Image 2

Liberty Compact One-Piece 7/16″ Overlay 2-Way Adjust Hinge LQ-H05105-NP-A

Original price was: $15.00.Current price is: $10.50.

SKU: ZGXHD 16658 Categories: Cabinet Hinges, European - Concealed Tags: European - Concealed, Liberty

Shop the Best Quality Online
Shop quality, shop with us.
Shop with Confidence, Pay Safely
Reliable Payments for Reliable Shopping

Description
Reviews (0)

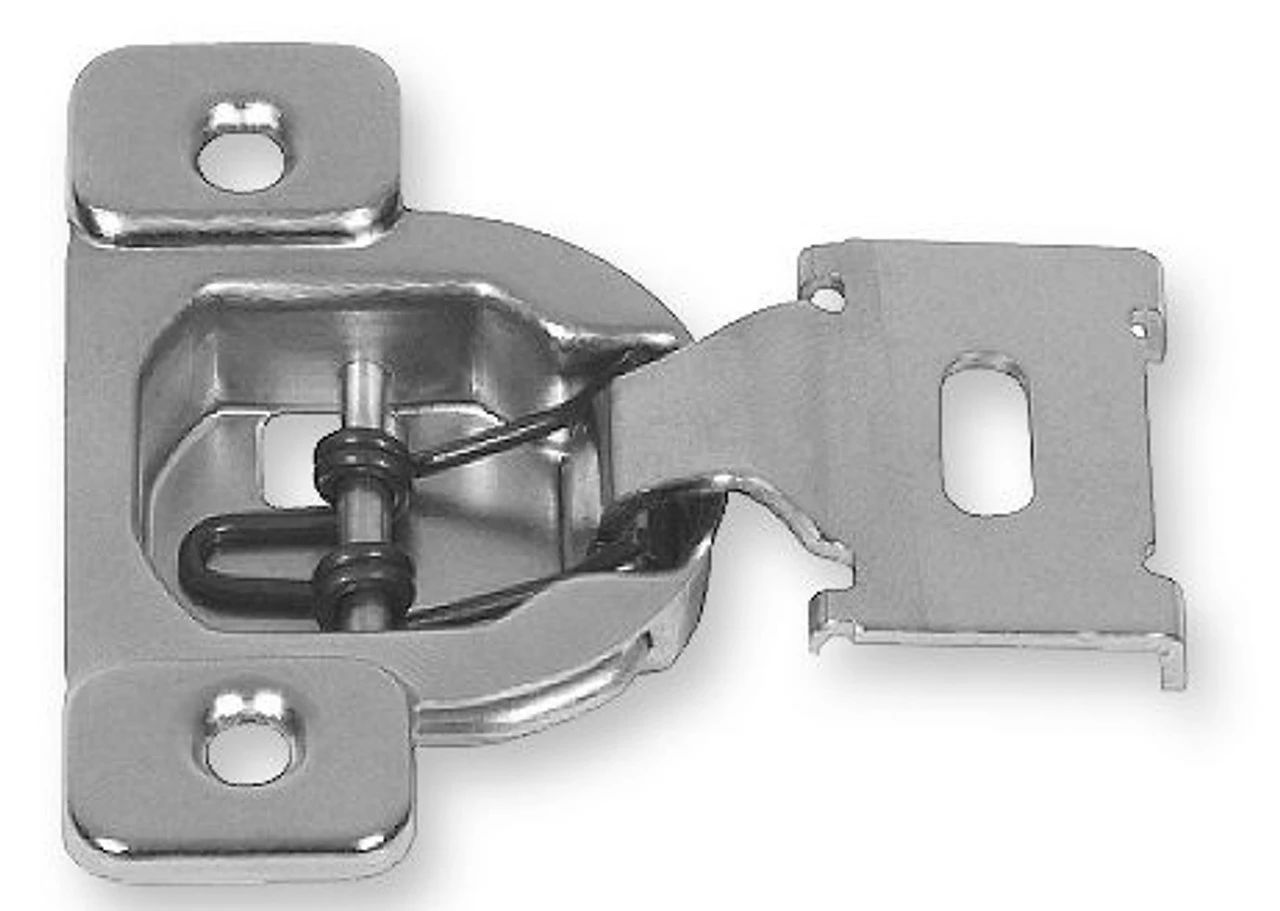

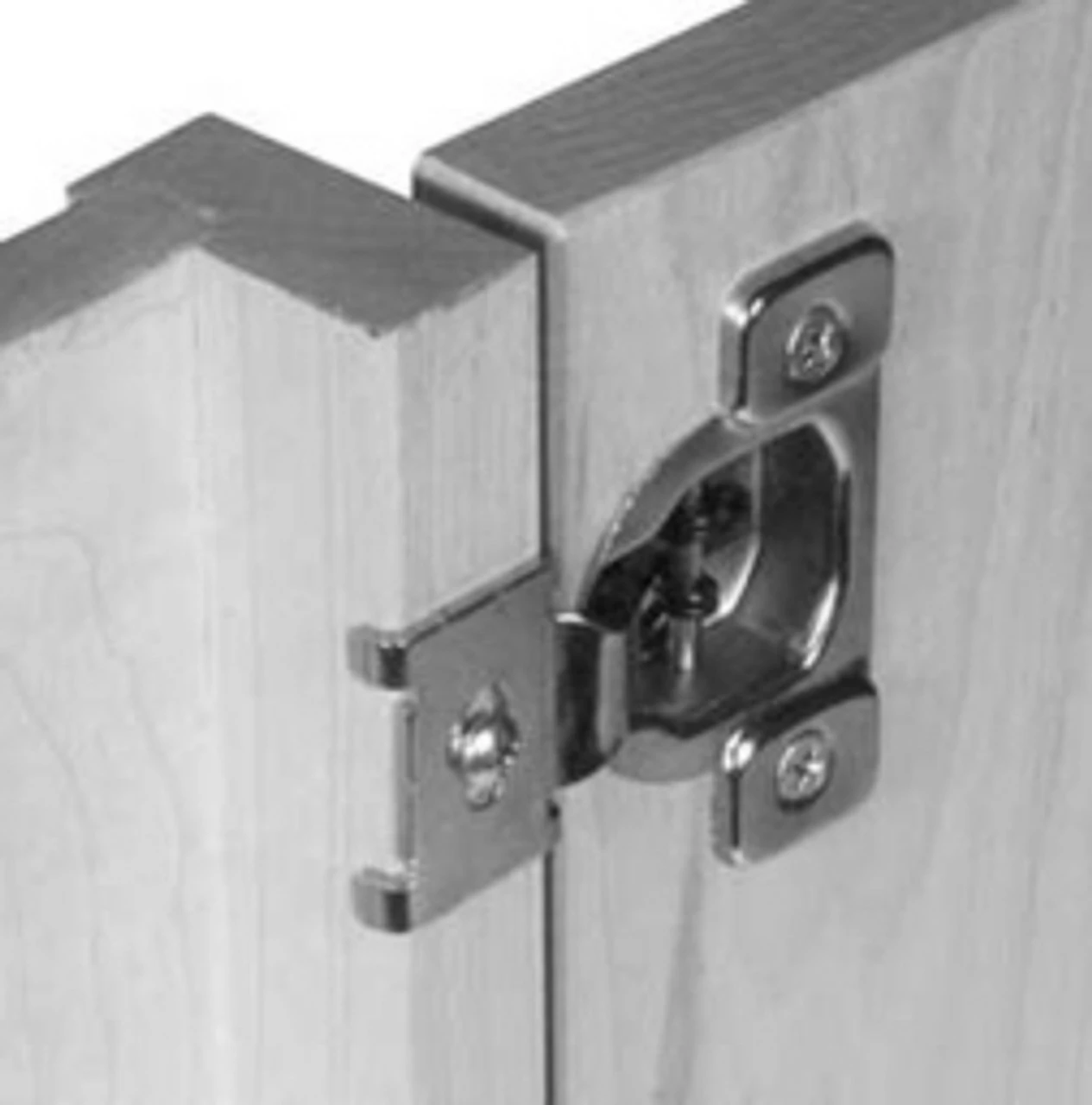

Euro 7/16″ Overlay Face Frame Hinge – One piece design makes mounting a snap. This is the economical standard euro used by commercial cabinetmakers. 1/2″ adjustment slot on face frame side to allow for vertical adjustment of door.

Your are purchasing one hinge

TECHNICAL SPECIFICATIONS
Depth of metal cup 11.3mm
Cup diameter 35mm
Cup centers 1-3/4″
Opening 110 degrees with (k) max 2.5mm
7/16″ overlay
Able to drill door (k) from 2.5mm
Self closing
Thickness of door(t)from 16 to 19mm(11/16″ to 3/4″)
Finish: Nickel Plated
COMES WITH 2 SCREWS INSIDE OF DOWELS IN CUP

SEE TECHNICAL INFORMATION FOR CORRECT SCREWS AND INSTALLATION HELP.

We suggest #6 x 5/8″ Uni-Chrome Screws. European Hinge Installation Template can be used with this hinge. However, a shim of 2.5mm (not supplied) is required to mark the correct drill position in order to place the cup hole 2.5mm from the door edge as illustrated in the blue drawing. This gap is referred to as (k). The template creates a 5mm (k) between the cup hole and the door which is typical of most common European hinges. A shim of 2.5mm will adjust the template to allow for the 2.5mm (k) required by this particular hinge.
