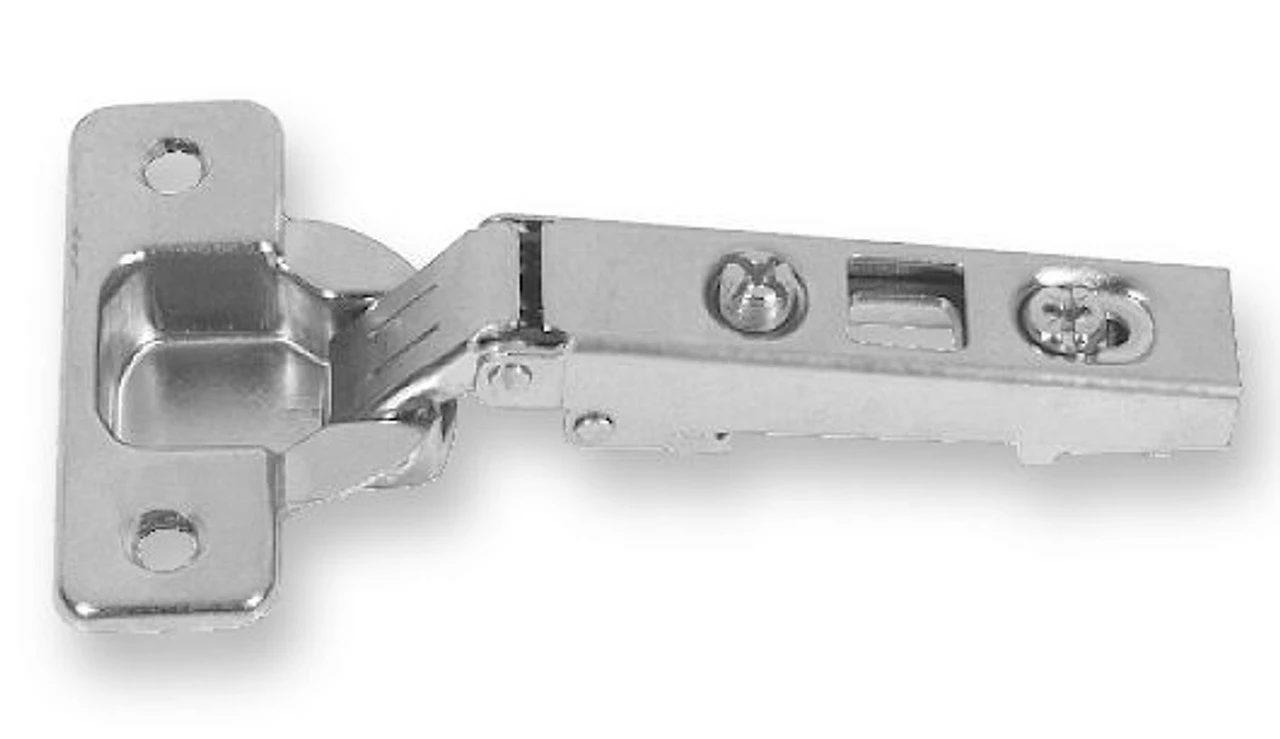

Liberty Concealed Hinge - 120 Degree -Easy Clip - Full Overlay L-H71041-NP-A

Liberty Concealed Hinge - 120 Degree -Easy Clip - Full Overlay L-H71041-NP-A - Image 2

Liberty Concealed Hinge – 120 Degree -Easy Clip – Full Overlay L-H71041-NP-A

Original price was: $14.00.Current price is: $9.80.

SKU: ZGXHD 12659 Categories: Cabinet Hinges, European - Concealed Tags: European - Concealed, Liberty

Shop the Best Quality Online
Shop quality, shop with us.
Shop with Confidence, Pay Safely
Reliable Payments for Reliable Shopping

Description
Reviews (0)

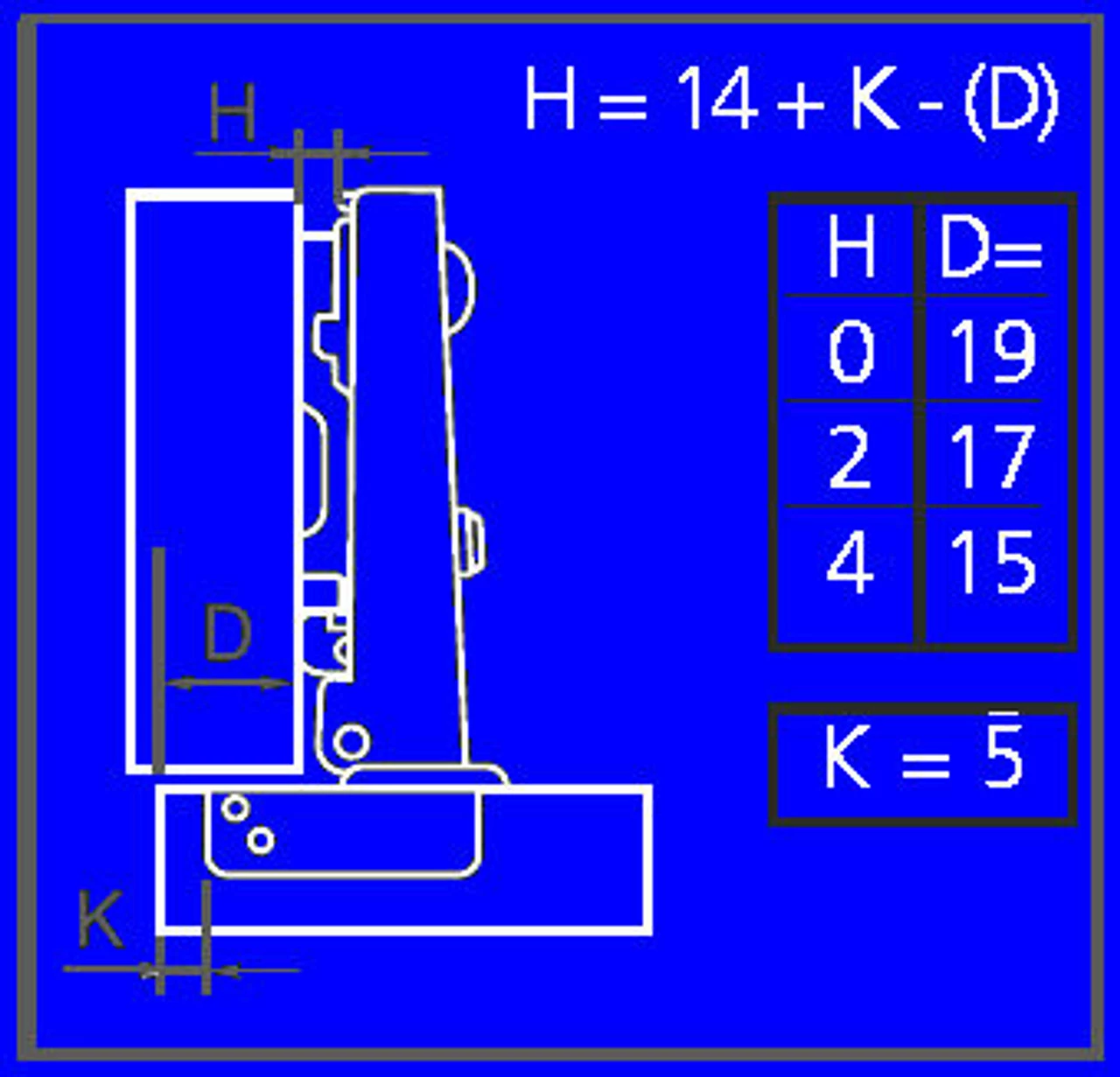

35mm Cup 120 Degree Concealed Hinge, Overlay 00 Crank. You are purchasing one hinge only. Click on inset picture for details.

TECHNICAL SPECIFICATIONS
Depth of metal cup 11.3mm
Cup diameter 35mm
Opening 120 degrees
Able to drill door (k) from 3 to 7 mm
Self closing
Thickness of door(t) from 16 to 26mm
Finish: Nickel Plated

SEE TECHNICAL INFORMATION FOR CORRECT SCREWS AND GENERIC INSTALLATION INSTRUCTIONS.
Mounting plates that can be used with this hinge:
For Wood Screws – 35mm
L-H71008-NP-A L-H71009-NP-A

With Euro Screws – 35mm
L-H71010-NP-A L-H71012-NP-A LQ-H16023-NP-A

Height Adjustable for Wood Screws – 35mm
L-H71013-NP-A L-H71014-NP-A L-H71051-NP-A

For Face Frame Cabinets – 35mm
L-H71035-NP-A LQ-H71051-NP-A

For Complete Mounting Instructions and Templates For Drilling Click Here for the .PDF file These are generic instructions. Please match your hinge against the drill pattern on the template before drilling any holes. We suggest #6 x 5/8″ Uni-Chrome Screws.
