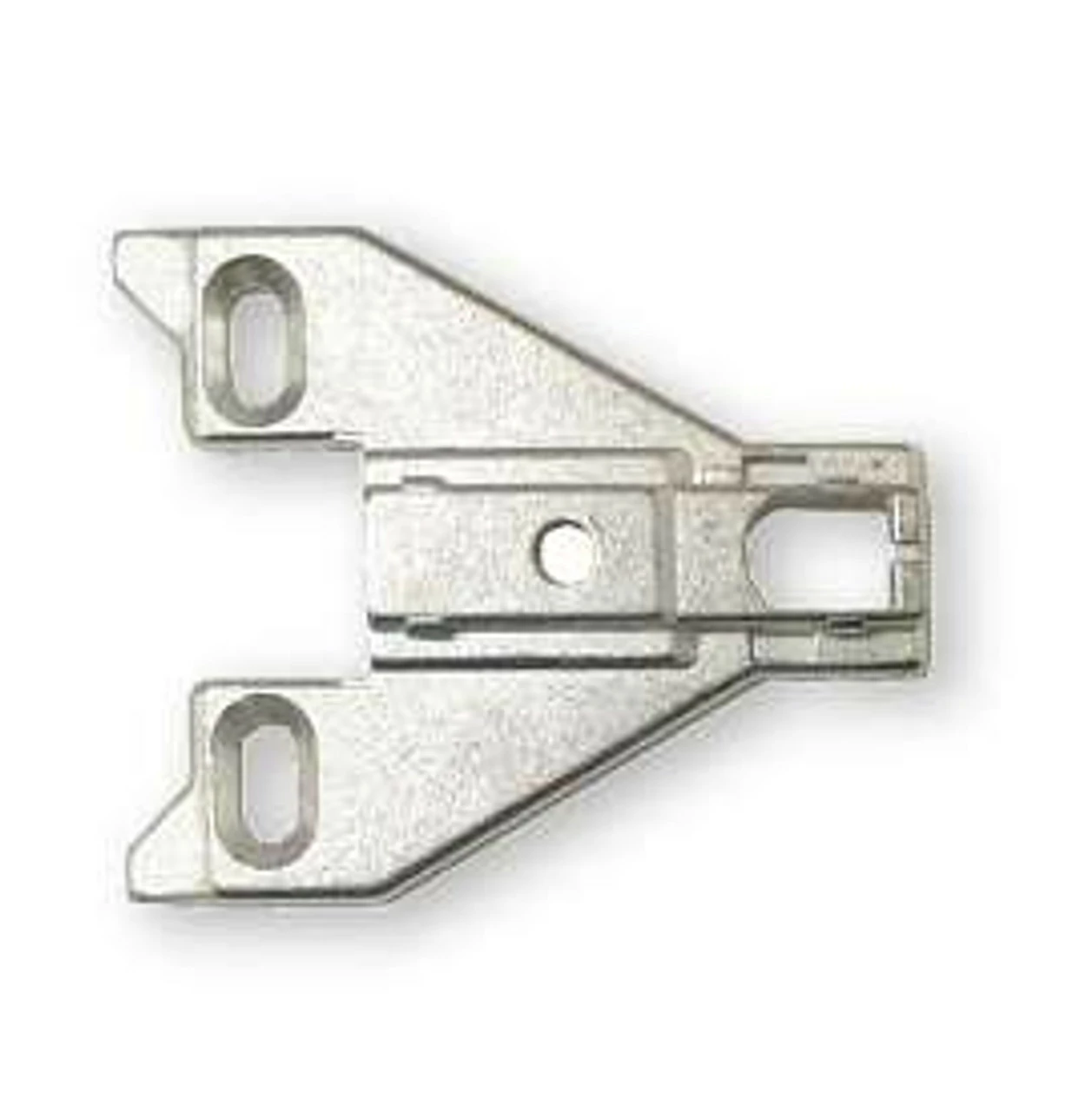

Liberty Face Frame Mounting Plate 0mm (5/8″ Overlay)- Easy Clip Hinges L-H71035-NP-A

This mounting plate is made to fit the Liberty Easy-Clip concealed hinge system. This 0mm mounting plate is for face frame cabinets and all Liberty Easy-Clip 35 mm hinges. This mounting plate may not look exactly like the picture but will work with the Easy Clip System.

These hinge mounting plates are for converting overlay hinges to face-frame mounting. Not for inset hinges.

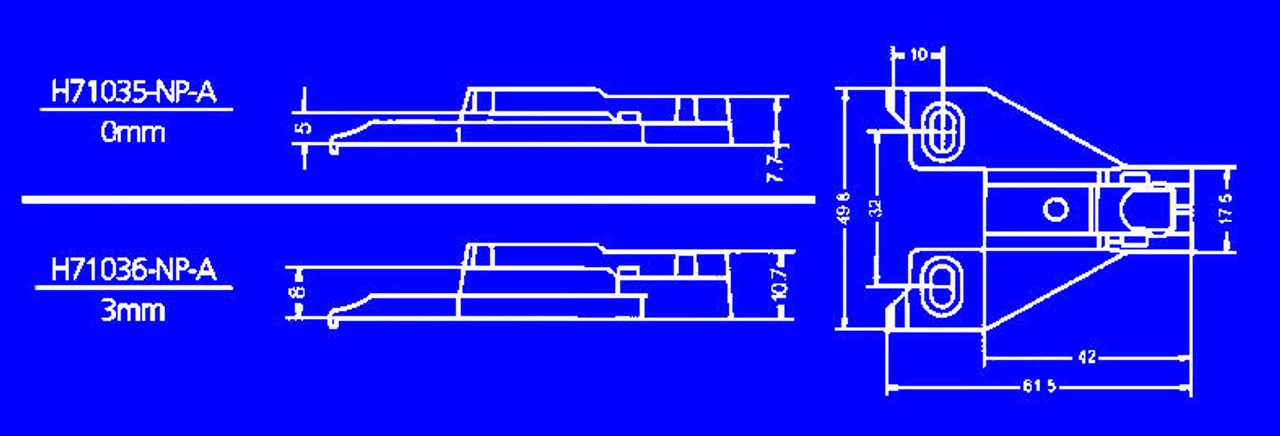

Overall dimensions:c-c 1-1/4″(32mm) x W 2-3/8″(49.8mm)x W small end 11/16″ (17.5mm) x H 5/16″(7.7mm)

Overlay dimension will be either 1/2″ or 3/4″ depending on which mounting plate is used. The 0mm plate will achieve an overlay of 3/4″ on a door in which the bore distance is 5 to 6 millimeters or a 5/8″ OL with a 2-3mm bore.. The bore distance is the distance from the edge of the door to the edge of the 1-3/8″ cup that is drilled in the back of the door.

L-H71035-NP-A
