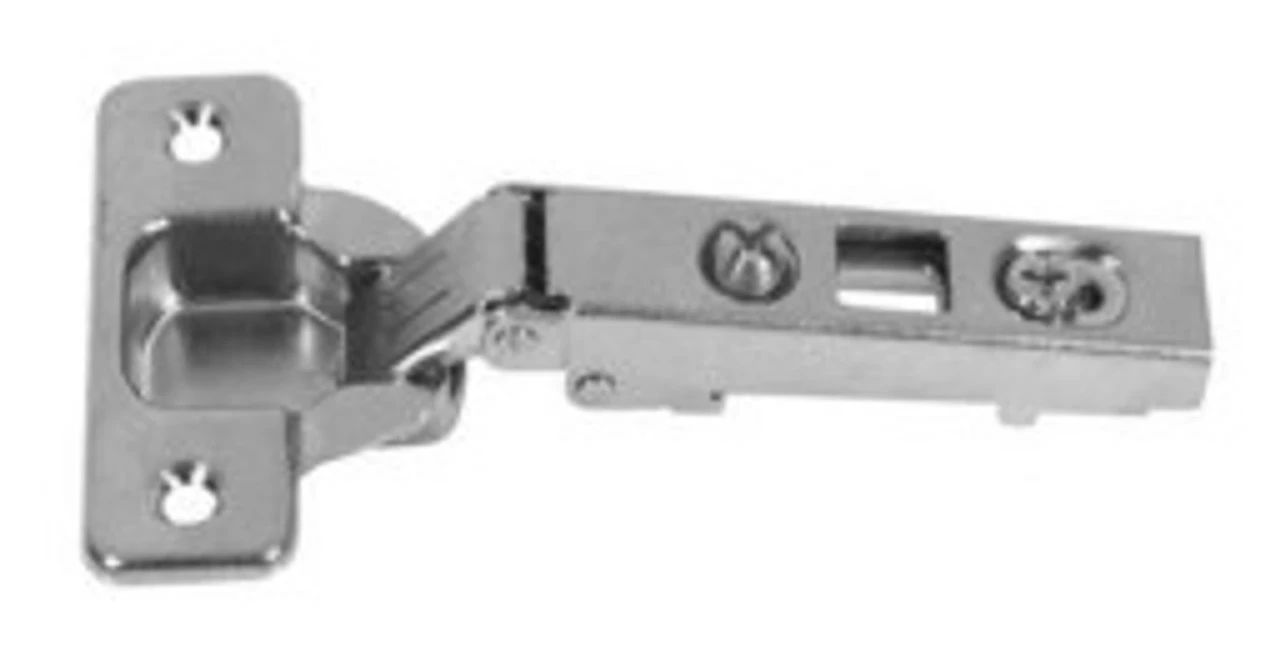

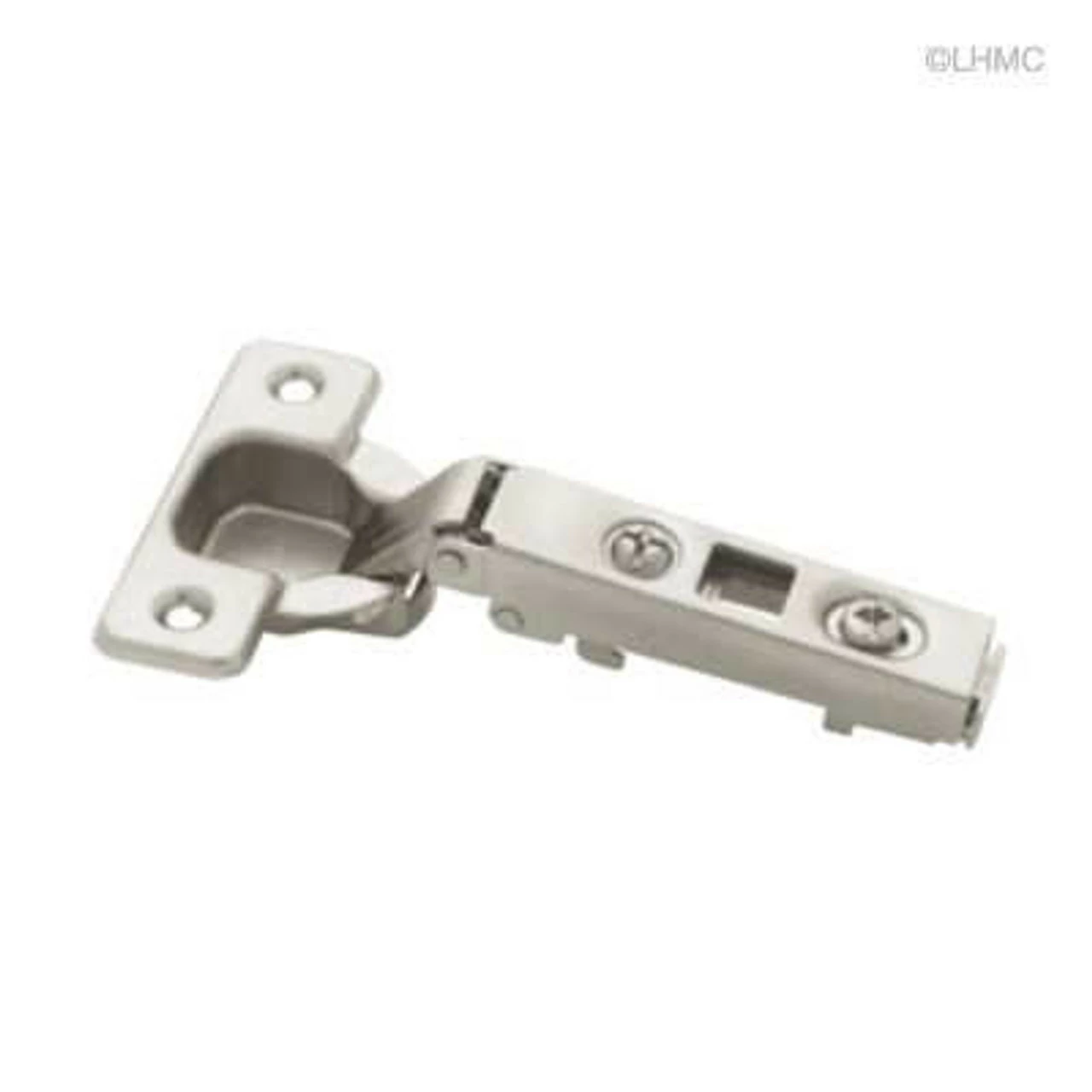

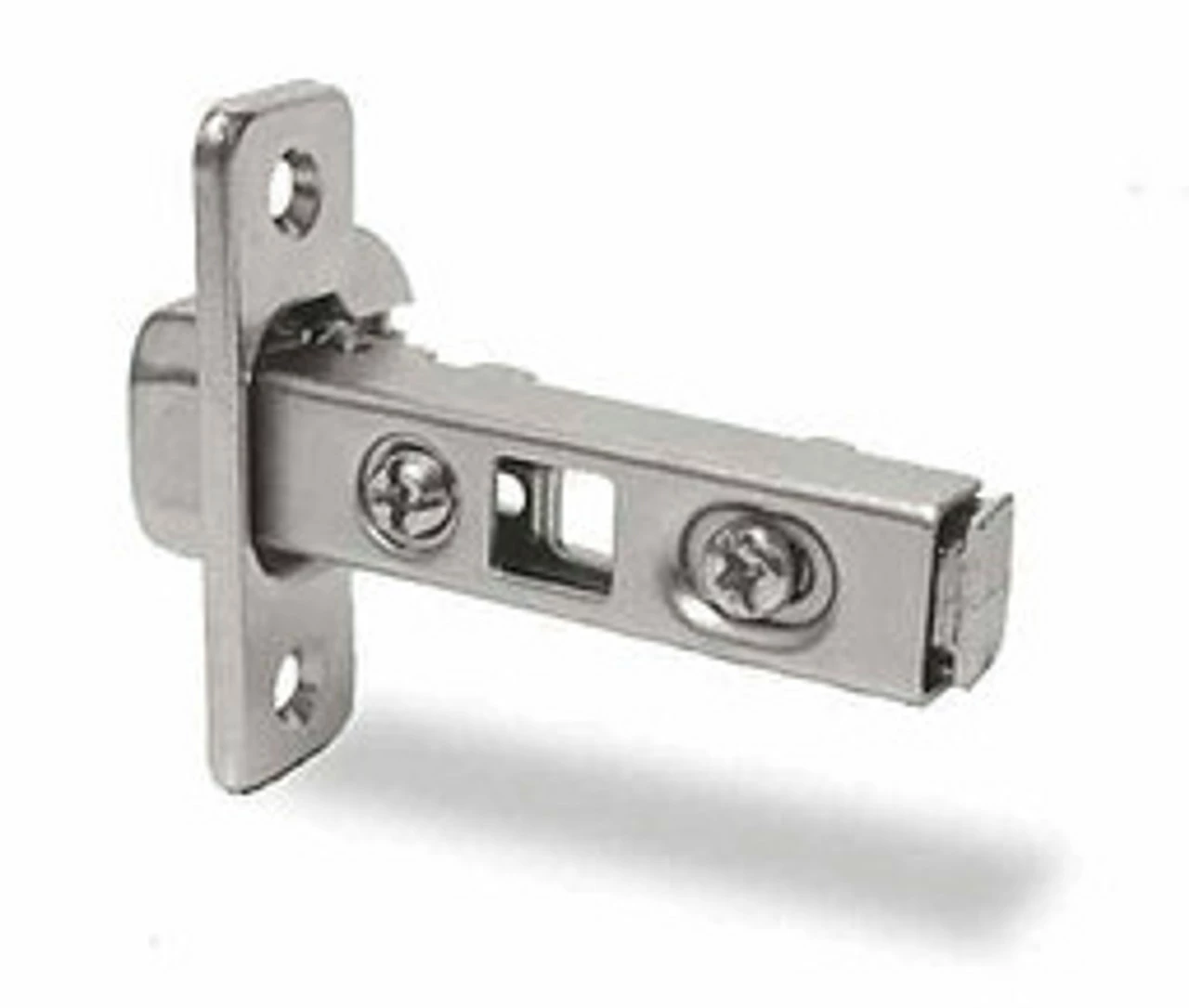

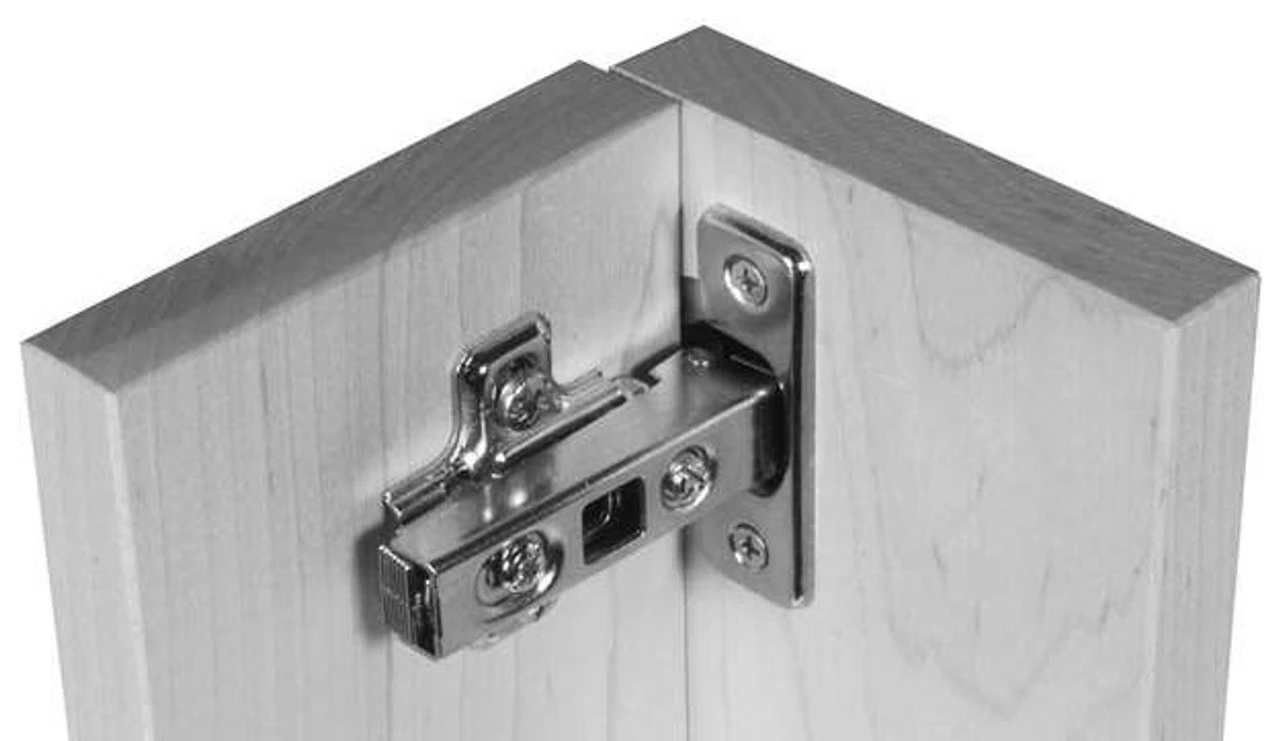

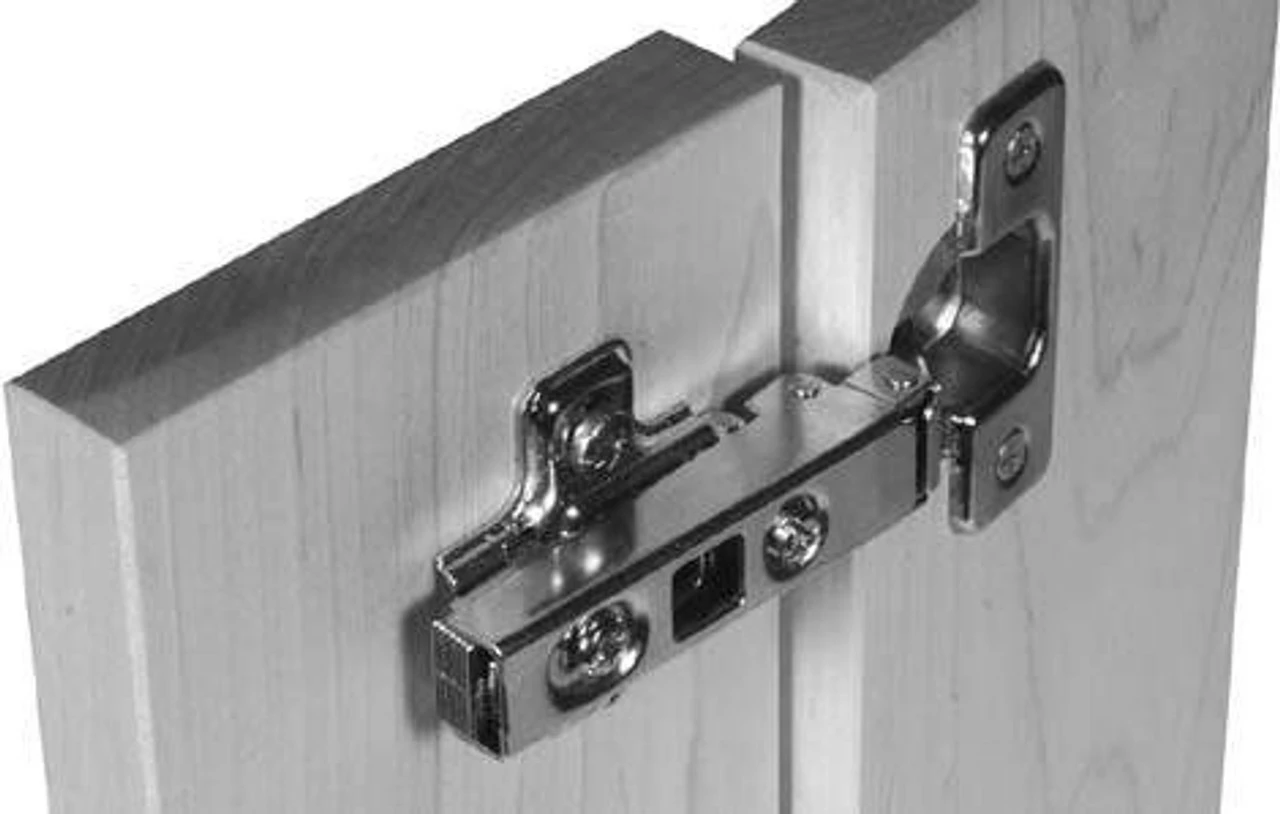

Liberty Full Overlay Easy Clip Hinge 110 Degree Opening (H71D23) LQ-H71023-NP-A

Liberty, 110 degree opening Easy-Clip concealed hinge system.

A full overlay hinge with a 0mm plate is usually employed on a stand alone cabinet or on the end of a cabinet run.
This euro hinge is nickel plated steel and is self-closing. This is an overlay hinge with a 00 crank. Use any Liberty Hardware Easy Clip mounting plate with this hinge. “0”mm plate will give a full overlay. Other mounting plates will reduce the overlay by the same amount as their thickness. So, a 2mm plate will cause the door to overlay the frame by 2mm less than a 0mm plate.

• Closed Overall Dimensions: 2 1/2″ x 3″ x 1 1/2″ (63 mm x 76 mm x 38 mm)
• Screws Centers: 1 3/4″ (44 mm)
• depth of metal cup 11.3 mm

• cup diameter is 35 mm

• opening 110 degree with (k) max 4 mm and (t) max 18mm

• able to drill door (k) from 3 to 7 mm

• thickness of door (t) from 16 to 26 mm

• Finish: Nickel Plated

SEE TECHNICAL INFORMATION FOR CORRECT SCREWS. Mounting plates that can be used with this hinge:
Frameless For Wood Screws – 35mm
L-H71008-NP-A L-H71009-NP-A

Frameless With Euro Screws – 35mm
L-H71010-NP-A L-H71012-NP-A LQ-H16023-NP-A

Frameless Height Adjustable for Wood Screws – 35mm
L-H71013-NP-A L-H71014-NP-A L-H71051-NP-A

For Face Frame Cabinets – 35mm
L-H71035-NP-A L-H71036-NP-A LQ-H71051-NP-A
This is a quality Liberty product.
