Liberty Inset Concealed Hinge – 110 Degree -Easy Clip – L-H71025-NP-A
Original price was: $15.00.$10.50Current price is: $10.50.
- Shop the Best Quality Online
- Shop quality, shop with us.
- Shop with Confidence, Pay Safely
- Reliable Payments for Reliable Shopping

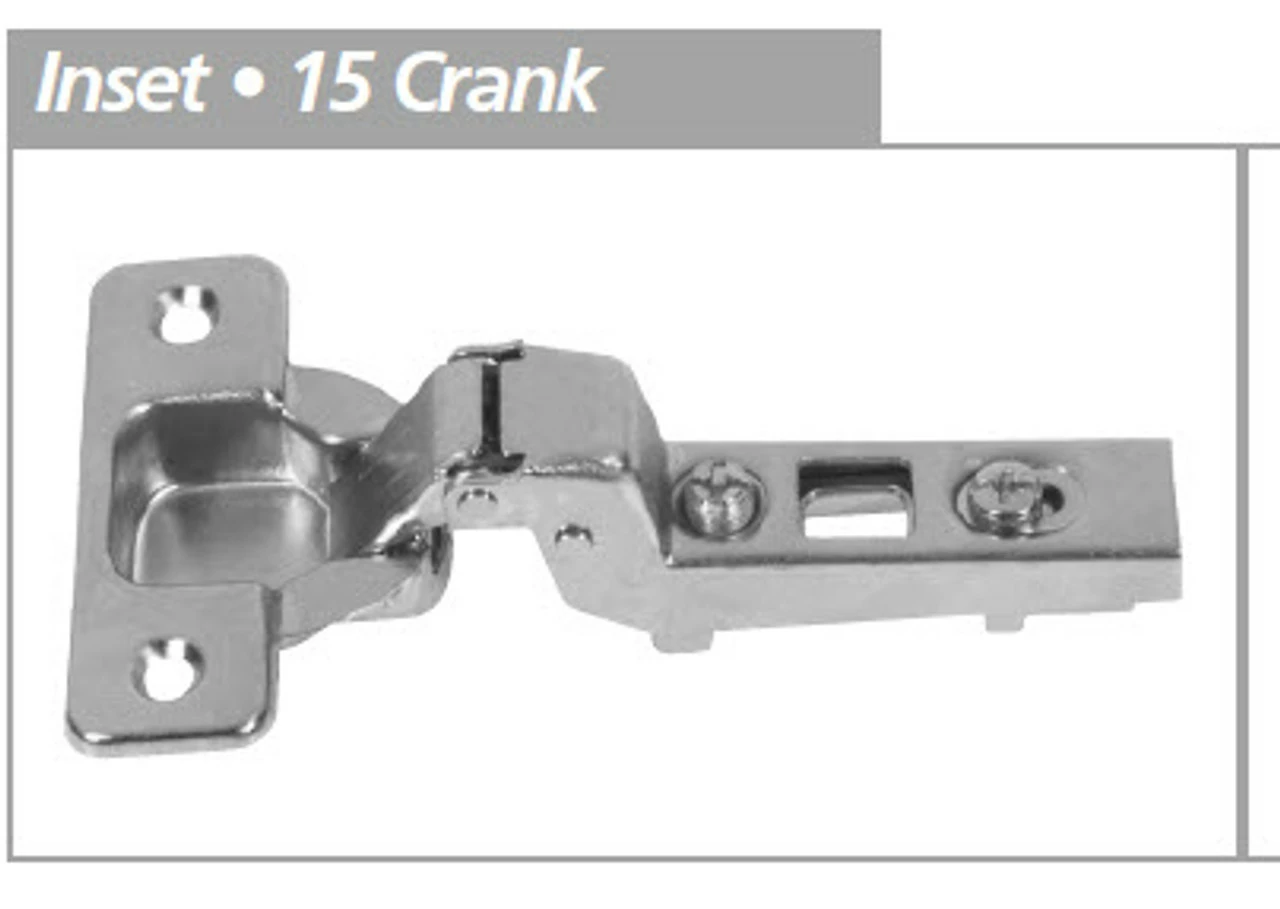

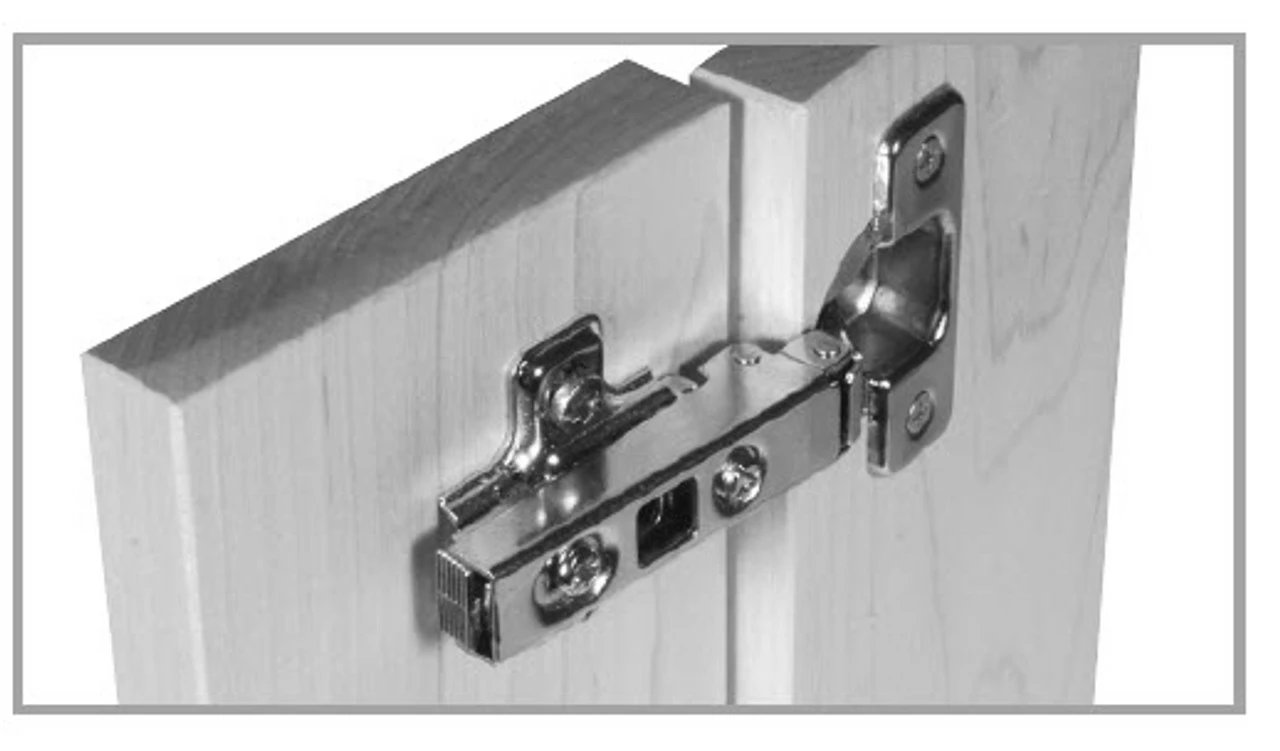

35mm Cup 110 Degree Concealed Hinge, Inset 15 Crank. You are purchasing one hinge only. Order appropriate mounting plate separately. Click on inset picture for details.

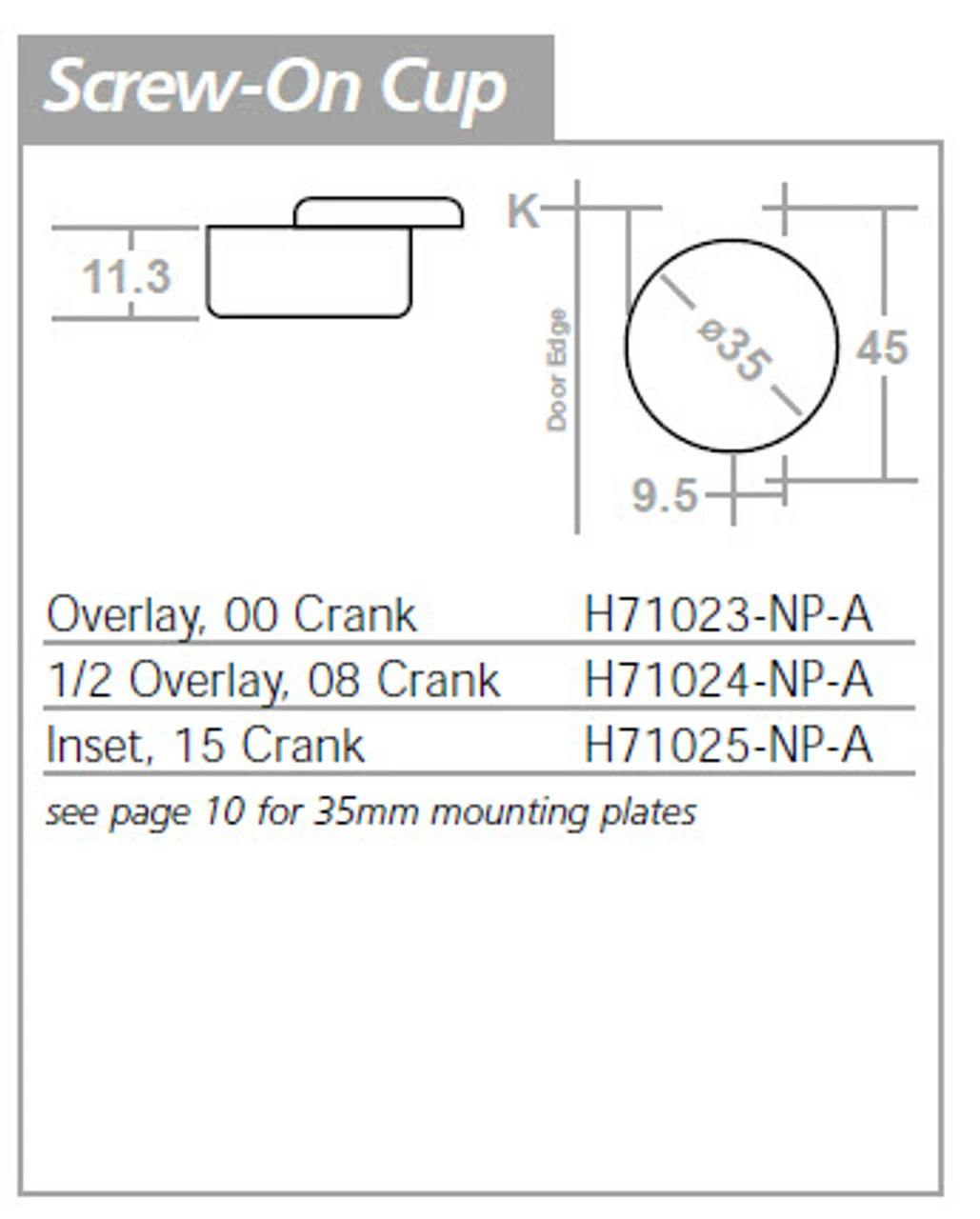

- TECHNICAL SPECIFICATIONS
- Depth of metal cup 11.3mm
- Cup diameter 35mm
- Opening 110 degrees
- Able to drill door (k) from 3 to 7 mm
- Self closing
- Thickness of door(t) from 16 to 26mm
- Finish: Nickel Plated
- Depth of metal cup 11.3mm
SEE TECHNICAL INFORMATION FOR CORRECT SCREWS AND GENERIC INSTALLATION INSTRUCTIONS.
Mounting plates that can be used with this hinge:
For Wood Screws – 35mm
L-H71008-NP-A L-H71009-NP-A
With Euro Screws – 35mm
L-H71011-NP-A L-H71010-NP-A L-H71012-NP-A LQ-H16023-NP-A
Height Adjustable for Wood Screws – 35mm
L-H71013-NP-A L-H71014-NP-A L-H71015-NP-A
For Face Frame Cabinets – 35mm
L-H71035-NP-A L-H71036-NP-A LQ-H71051-NP-A
