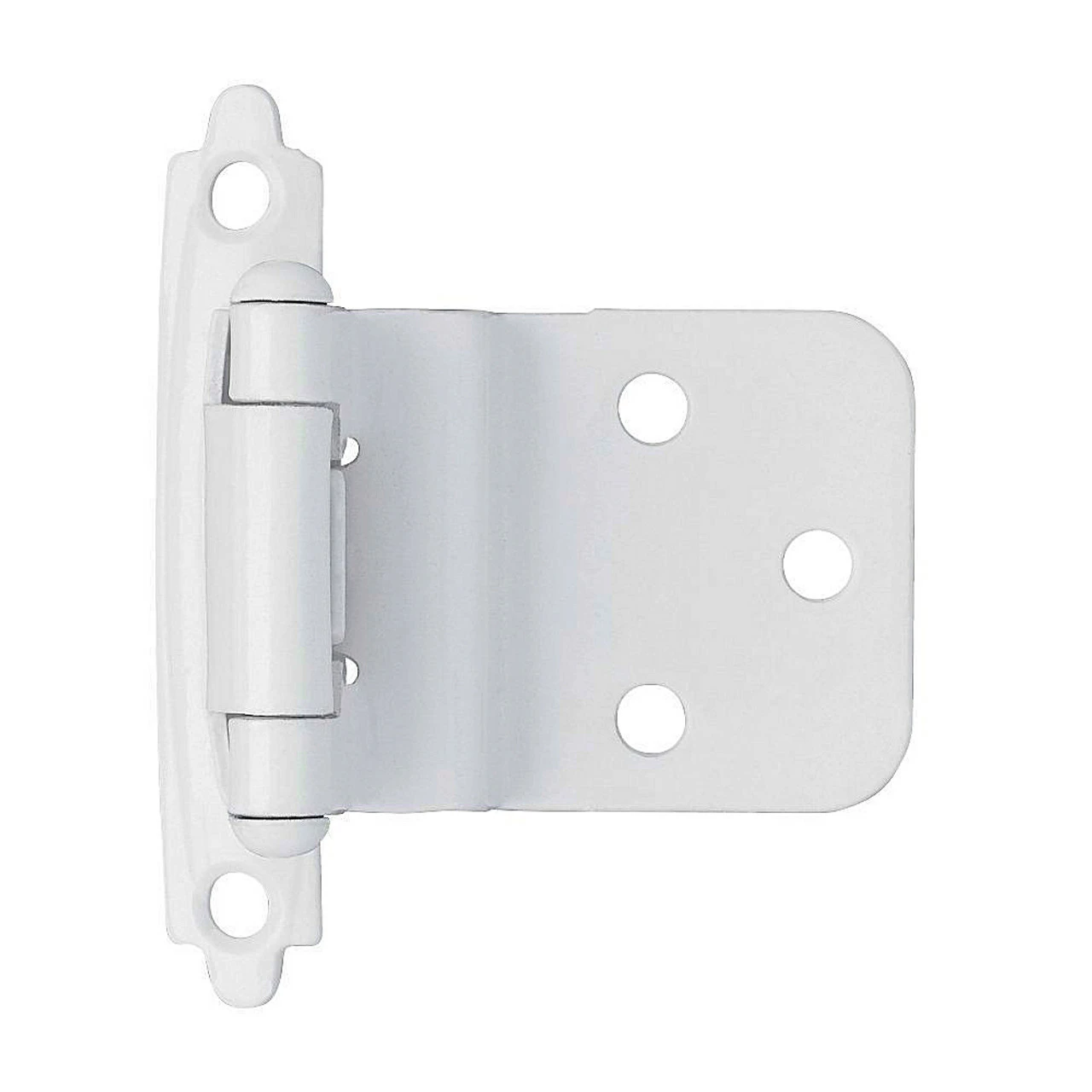

Liberty Pair 3/8″ Inset /Offset Bright White Self Closing Hinges L-H0104AC-W-02

Pair Bright White, Semi-concealed, Self-closing, 3/8″ inset/offset surface mount hinge.
Comes with screws and bumper pads.

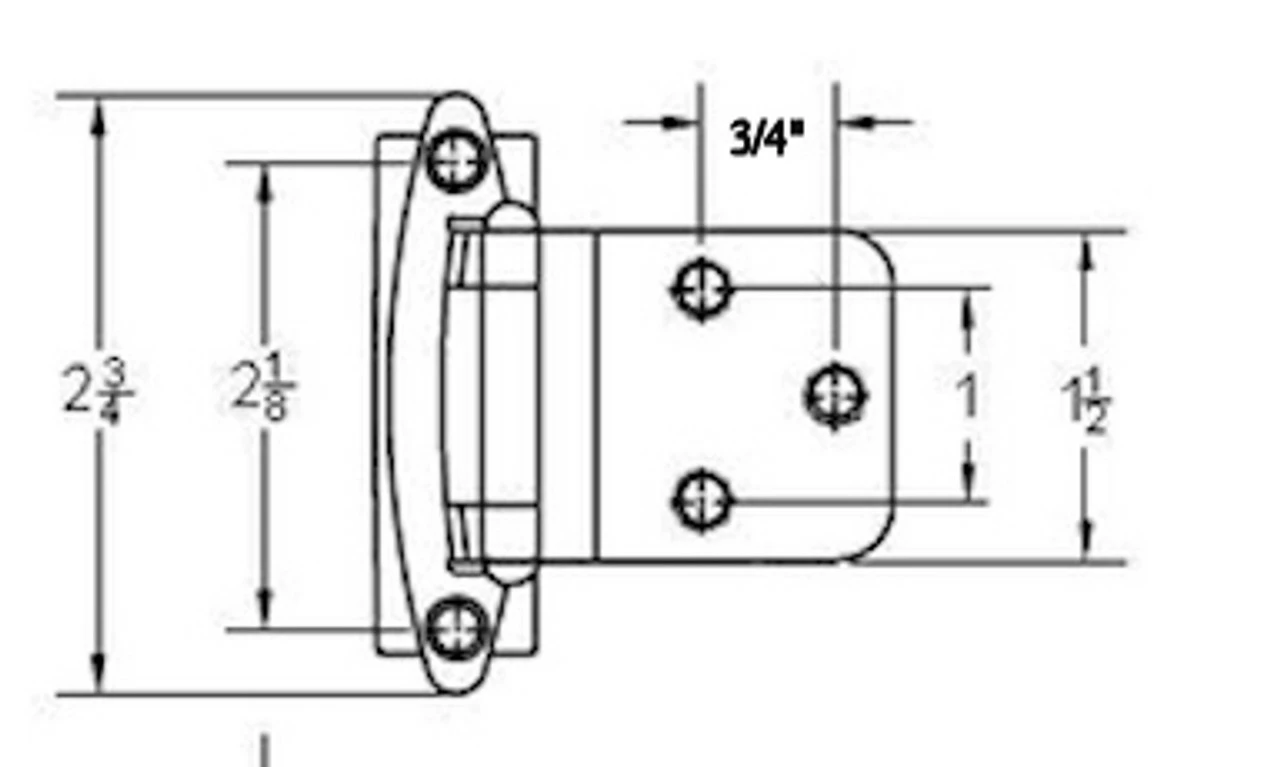

• Base Wing Centers: 2 1/8″ (54 mm)
• Base Wing Dimensions: 2 3/4″ x 1/2″ (70 mm x 13 mm)

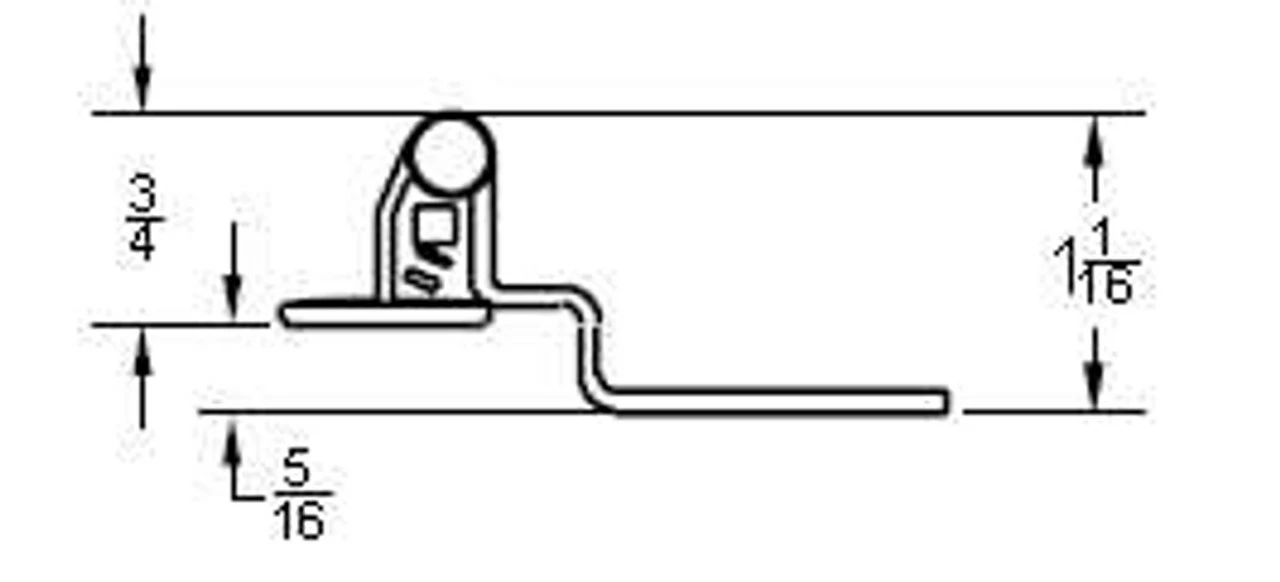

• Knuckle Projection: 5/8″ (16 mm)
• Door Wing Centers: 1″ and 3/4″ (25.4 mm and 19 mm)
• Door Wing Dimensions: 1 1/4″ x 1 1/2″ (32 mm x 38 mm)
• Door Wing Projection: 1/16″ (1.6 mm)
• Inset: 3/8″ (10 mm)
• Finish: White

L-H0104AC-W-02
