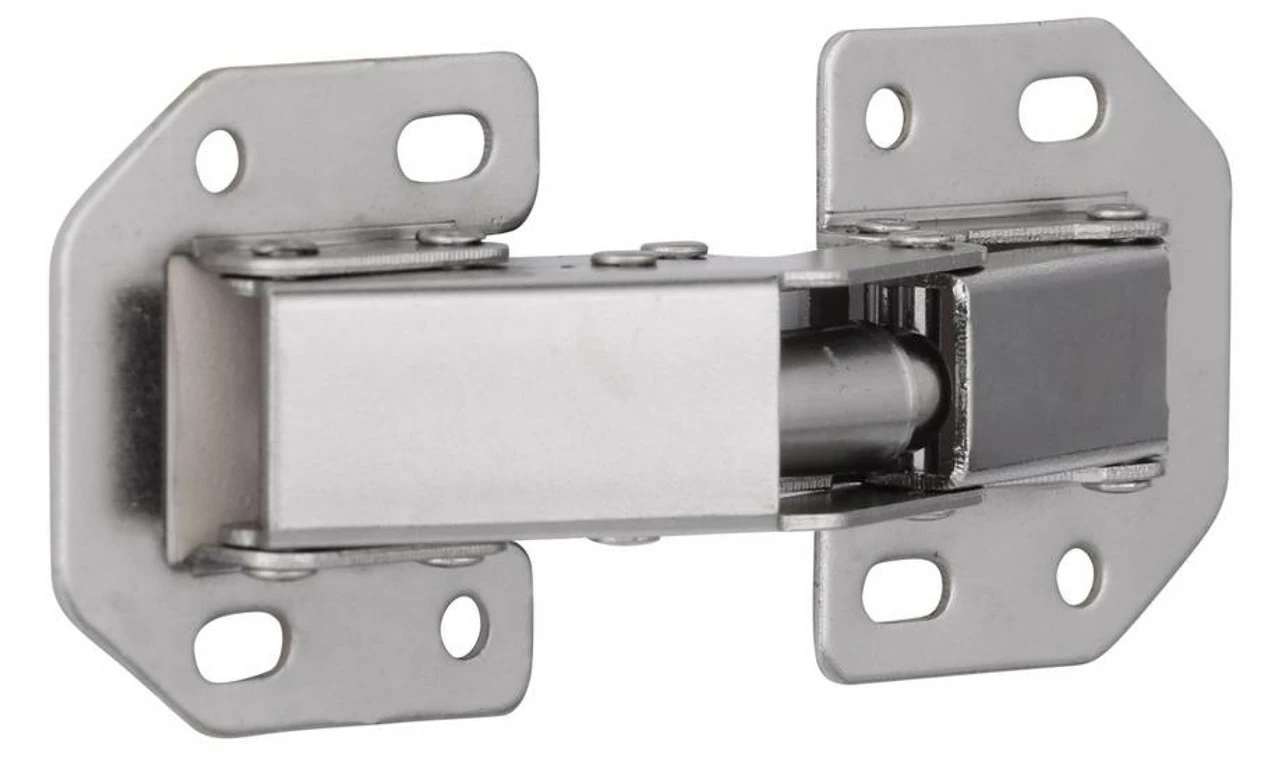

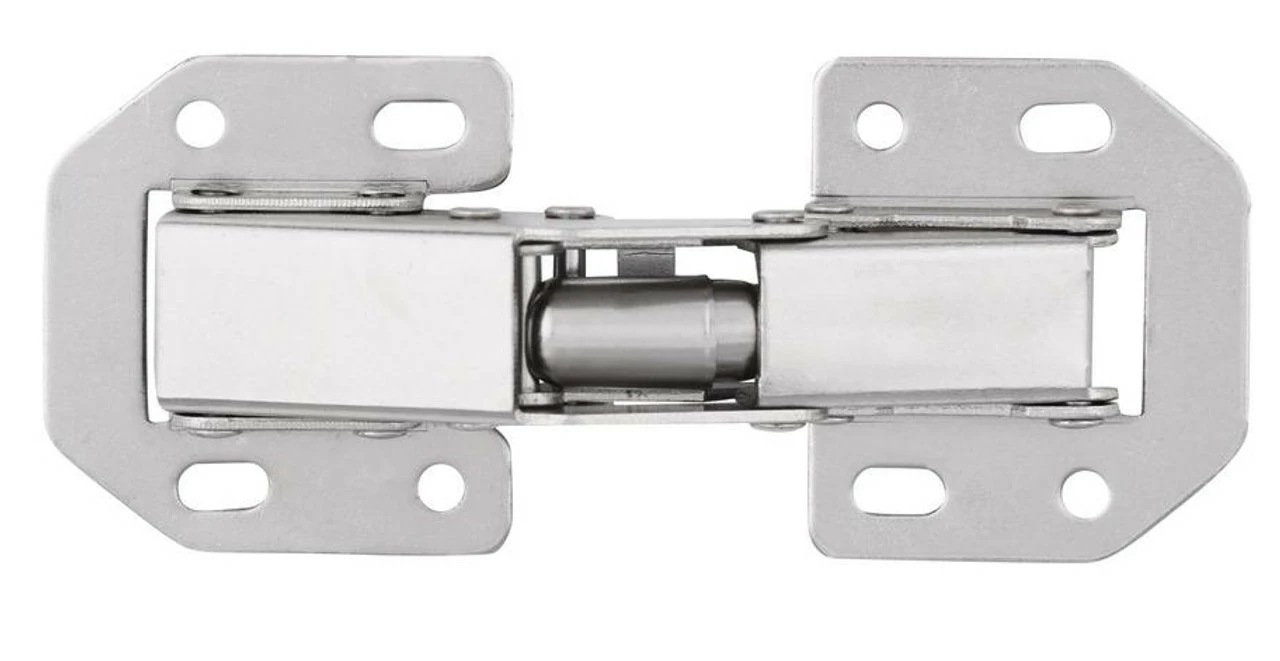

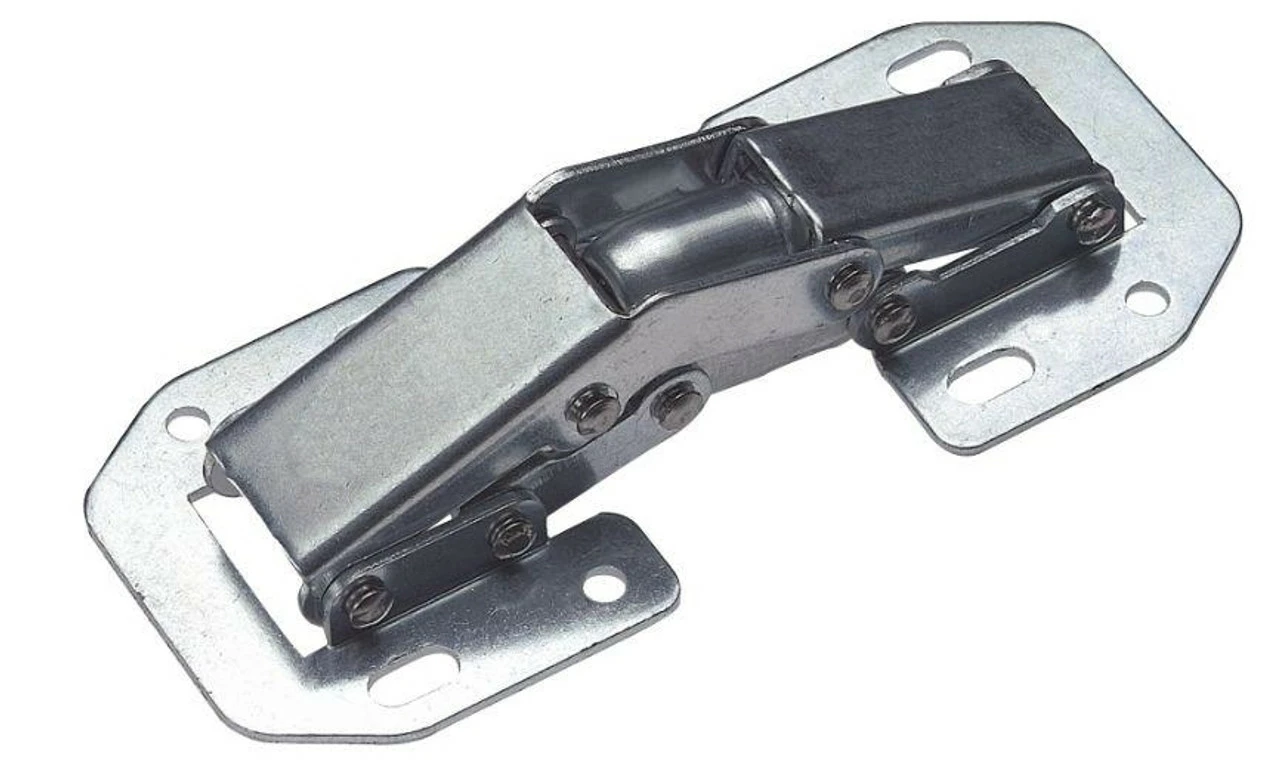

Liberty Pair Of Easy On Non-Mortise Concealed Hinge – Screws – Instructions H01068C-UC-C5

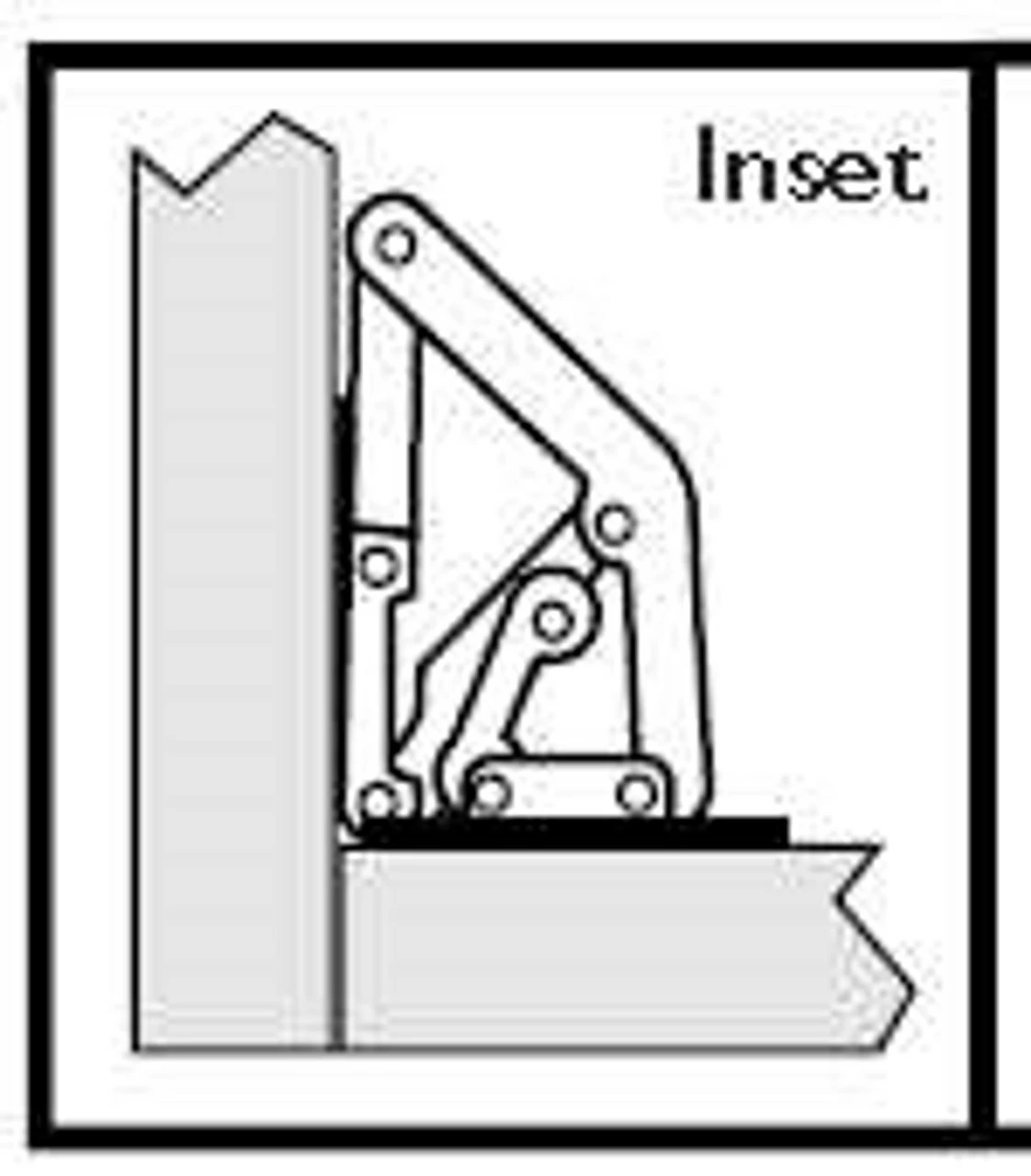

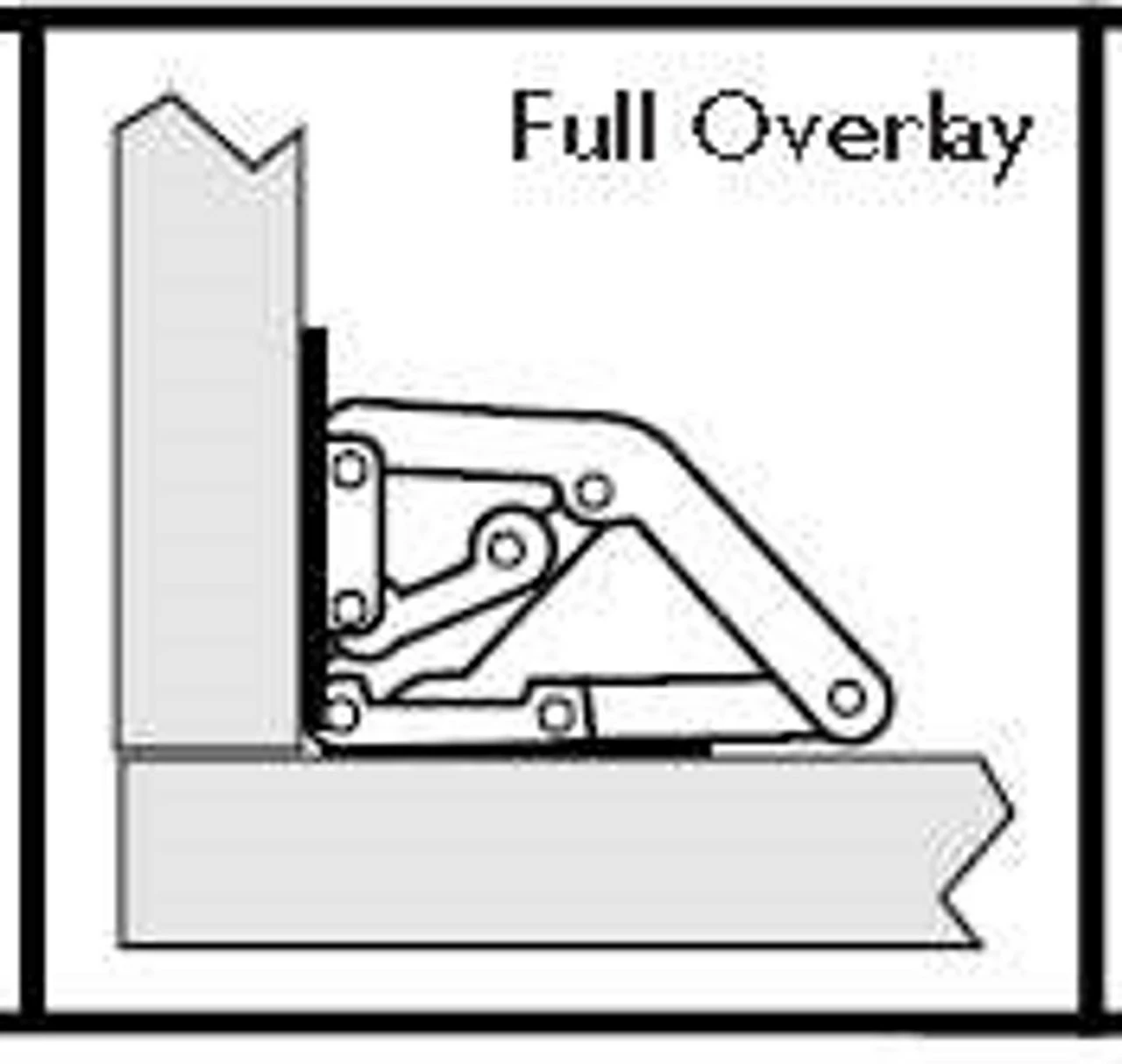

Pair (2) Invisible Spring Hinges for Inset, Full or Partial overlay doors.
Euro-Hinge performance from a surface mount hinge.
90 degrees opening.
Use for doors up to 3/4″ thick. Material .02 thickness.

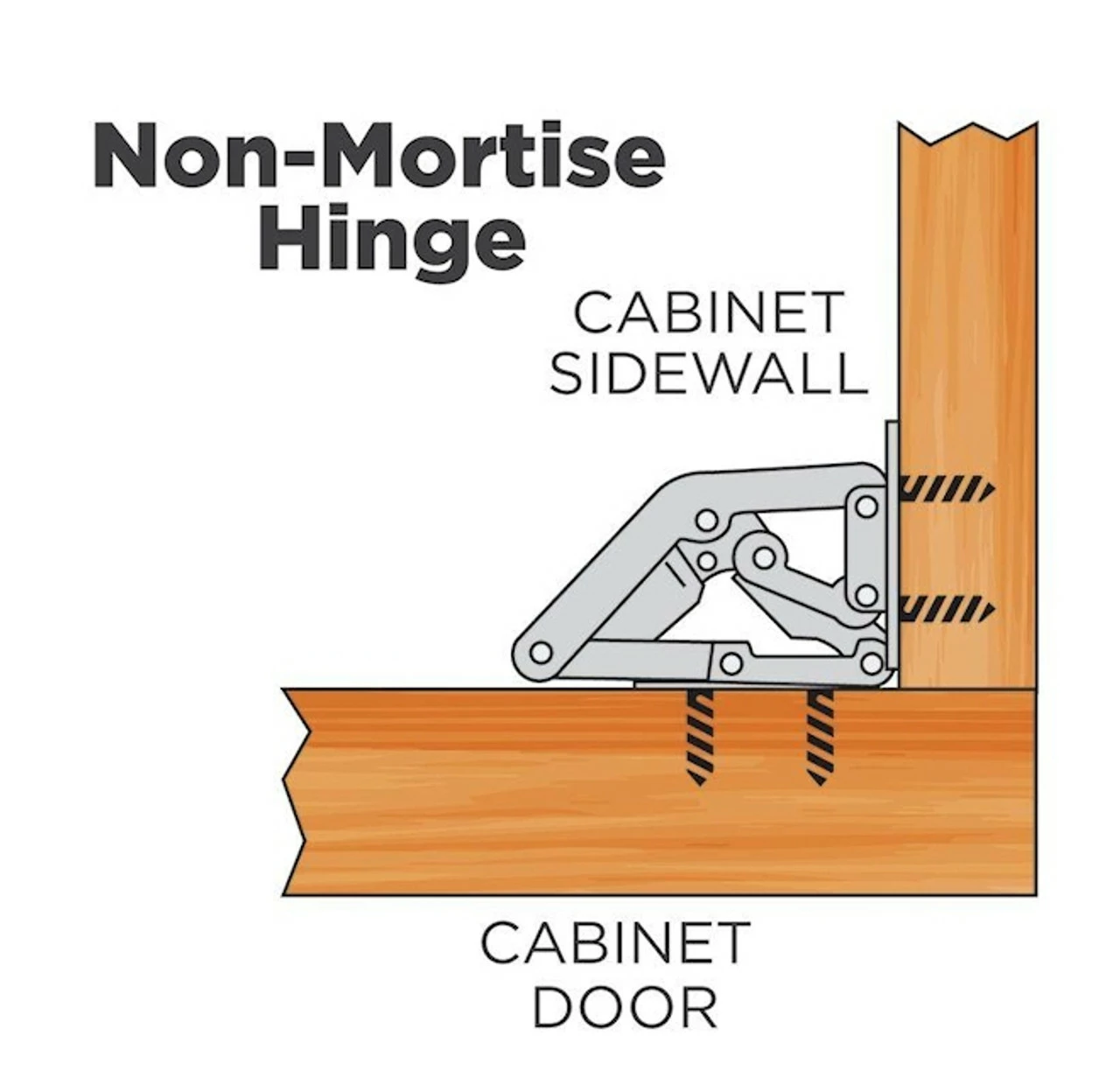

This hinge is for use on cabinets without face-frames.
If you have face-frames you must use a 1 3/4″ block attached at 90 degrees to face-frame to mount this hinge.

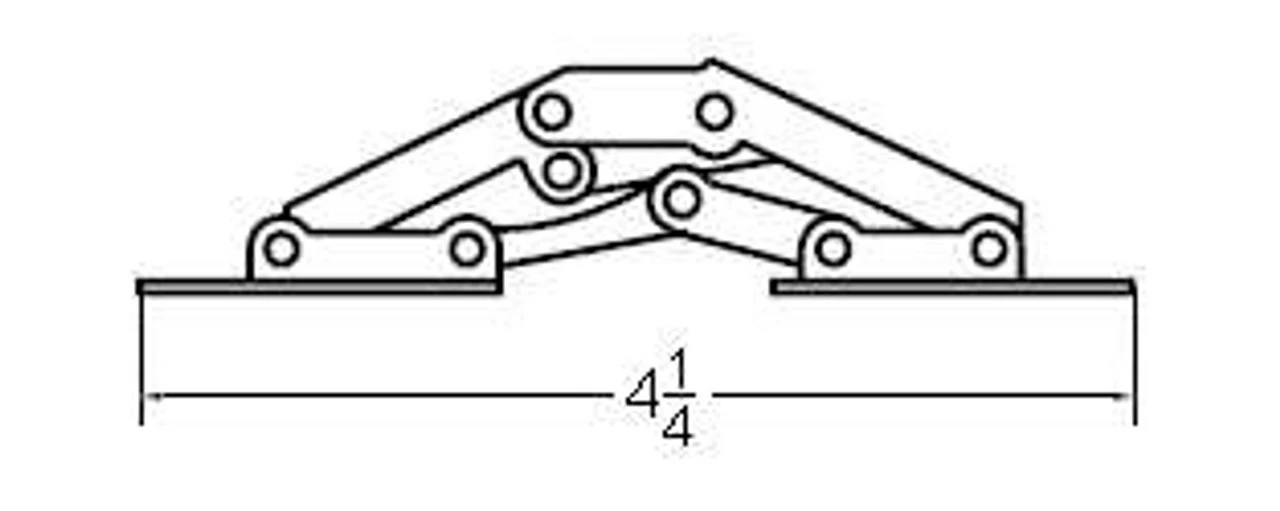

• Overall Dimensions: 4 1/4″ x 1 3/4″ x 1″ (108 mm x v 44.44 mm x 25.4 mm)

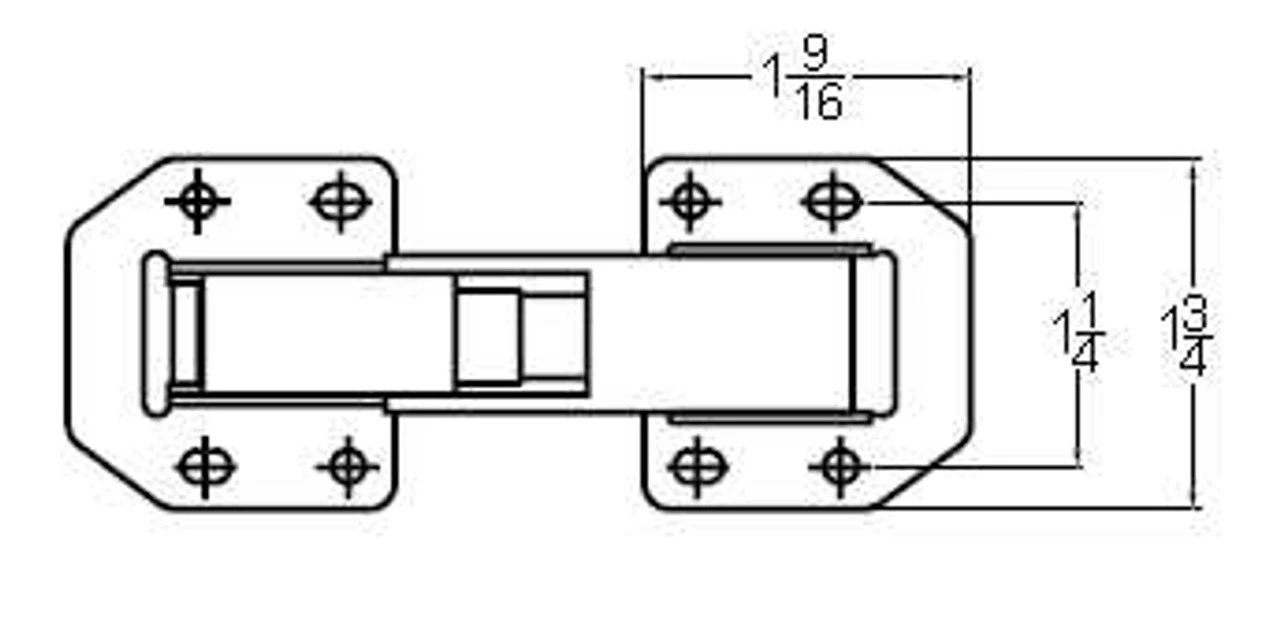

• Base Dimensions: 1 3/4″ x 1 5/8″ x 7/8″ (44.44 mm x 41 mm x 22.23 mm)
• Base Centers: 1 1/4″ (32 mm)
• Finish: Unichrome (Nickel Plated)

L-H01068C-UC-C5

Priced by Pair Comes with screws and installation instructions. Click the following link to see H01068V installation instructions.

Liberty Hardware Product
