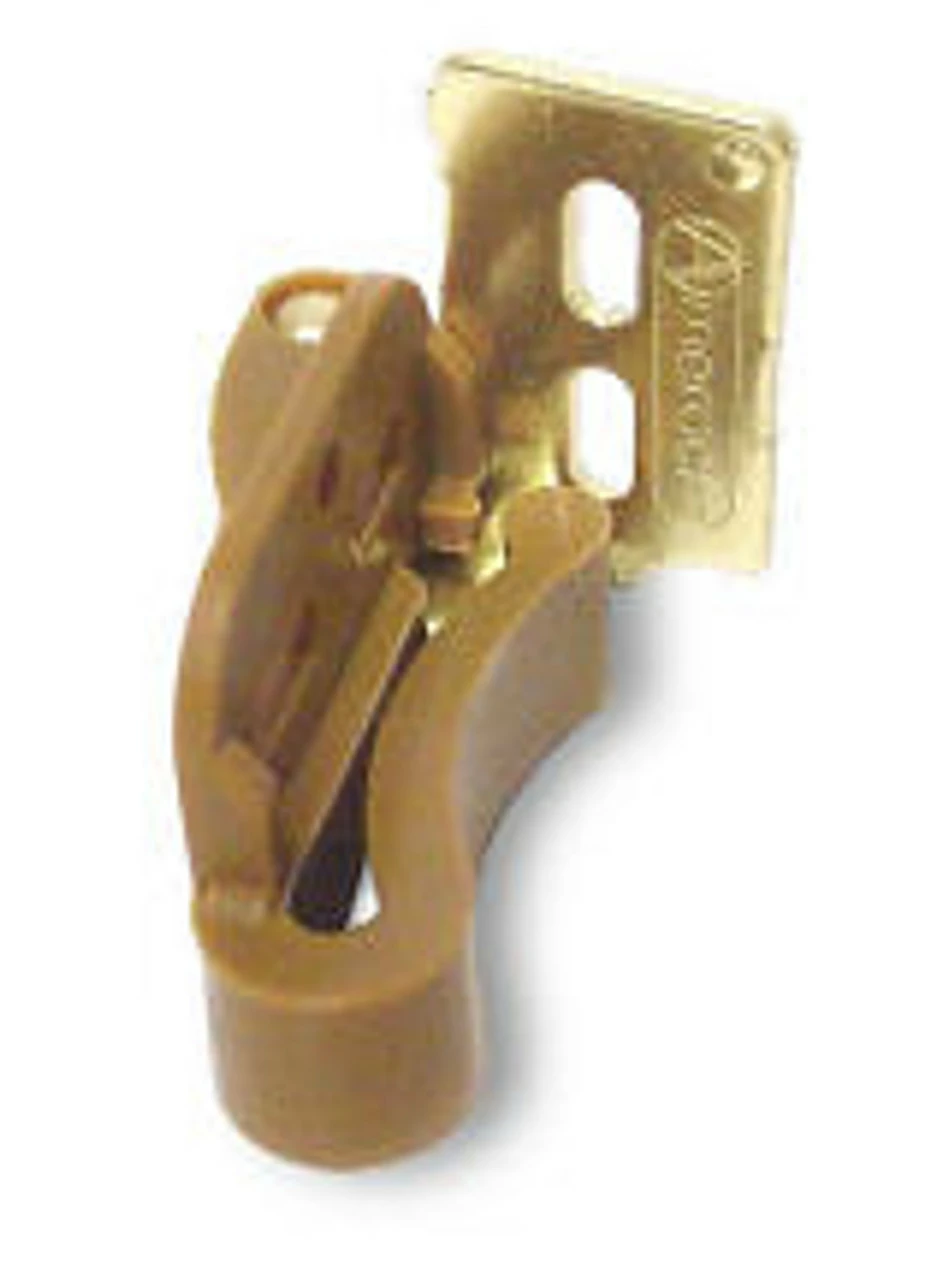

Marathon Brass Plated Amerock Self-Latching Knife Hinge For 1/2″ Overlay HAM-CM2606-3

Marathon Amerock Self-Latching Knife Hinge For 1/2″ Overlay. Use with 5/8′-3/4″ thickness doors. For face frame cabinets only. Fits left or right hand doors, top or bottom– same hinge. Purchase 2 hinges per door. Individual price, not pairs. Top or bottom mounting. Full wrap mount square door. Slotted holes for adjustment 3/16″. Single pivot for 180 opening. Marathon hinges are guaranteed as long as you own your home.

• Metal Wing Centers: 1/2″ (13 mm)
• Metal Wing Dimensions: 1 1/4″ x 3/4″ x 9/16″ (32 mm x 19 mm x 14 mm)
• Plastic Wing Centers: 5/8″ (15.88 mm)
• Plastic Wing Dimensions: 2 1/4″ x 1 1/8″ x 1″ (57.15 mm x 28.58 mm x 25.4 mm)

HAM-CM2606-3

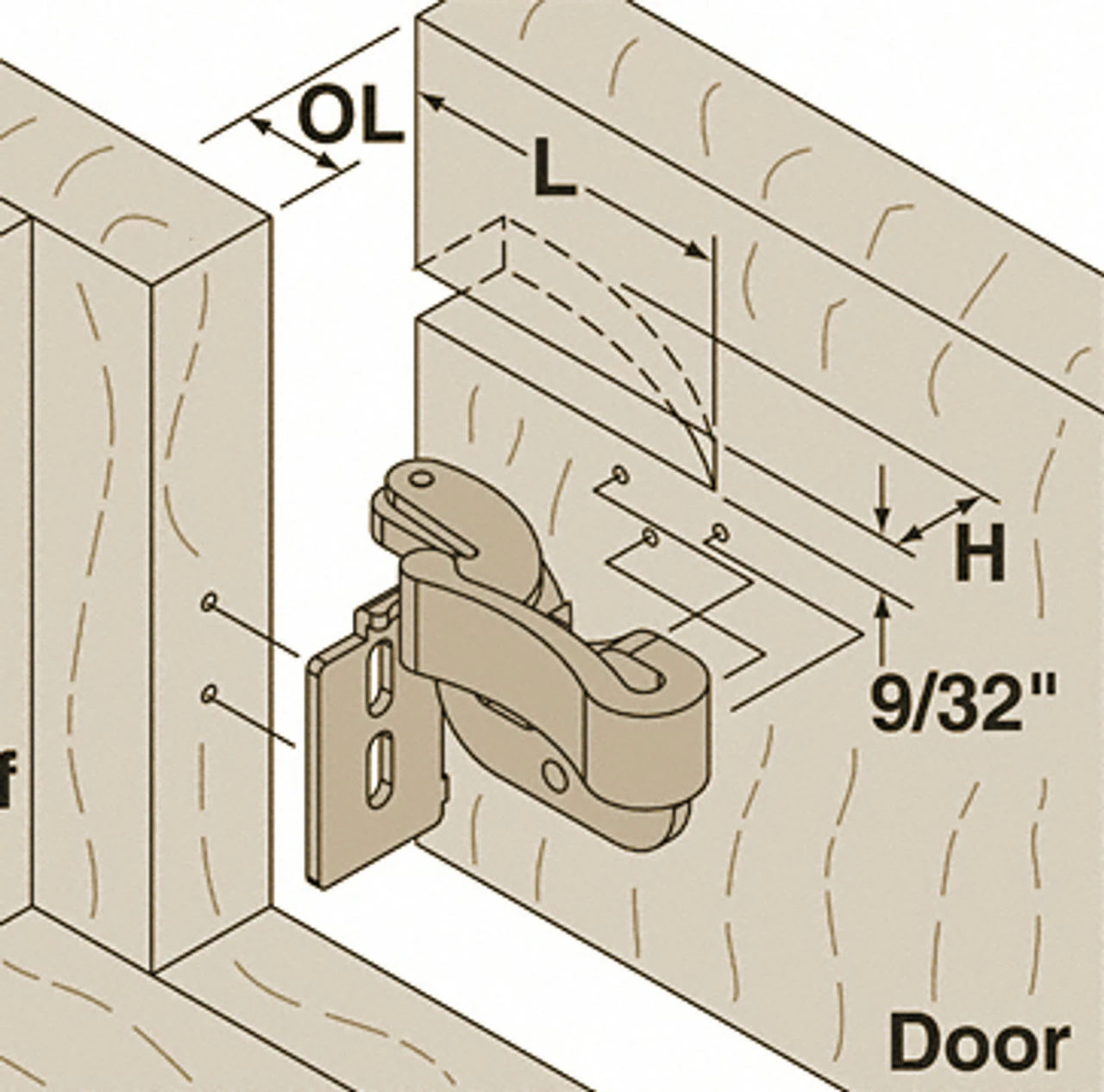

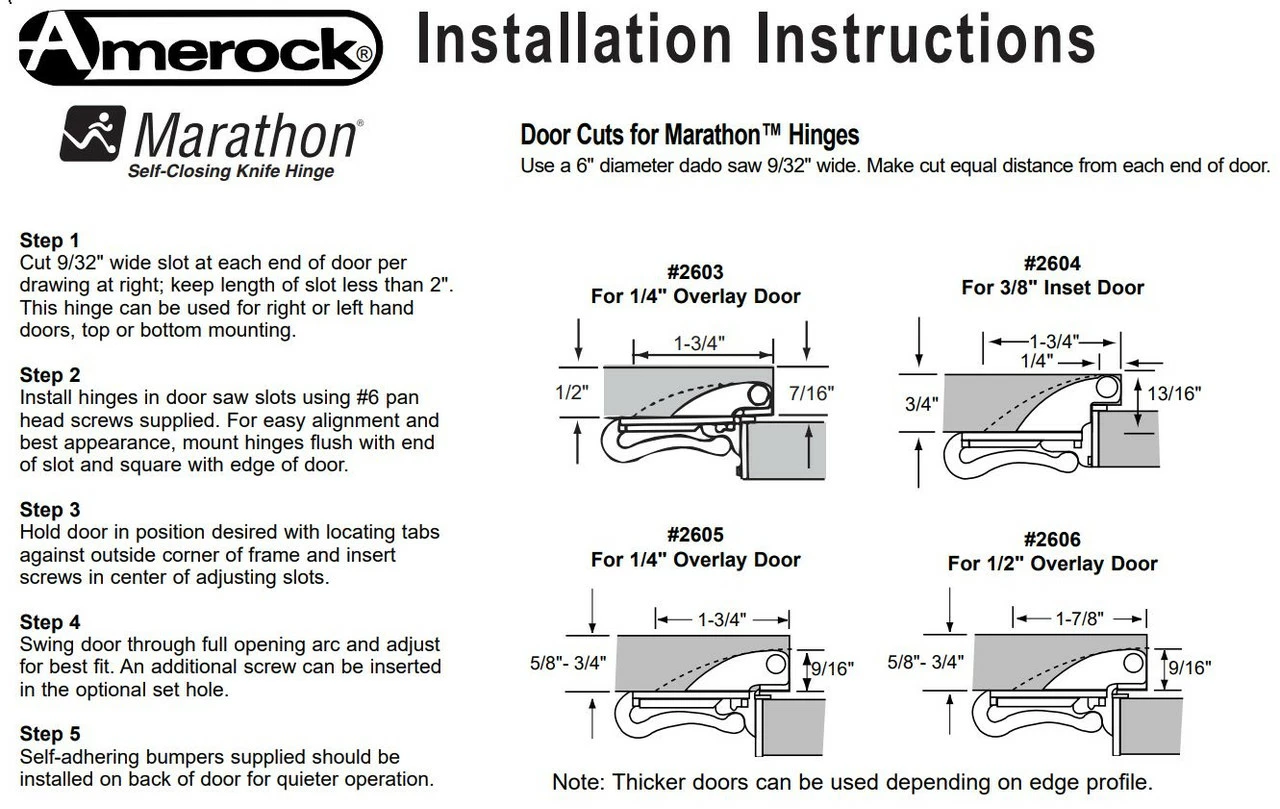

Amerock Product. Bright Brass. Singles. Comes with (4) #5 round head screws. Use a 6″ diameter dado saw 9/32″ wide to cut slot in door. Make cut equal distance from each end of the door. SEE TECHNICAL INFORMATION FOR INSTALLATION PDF.
