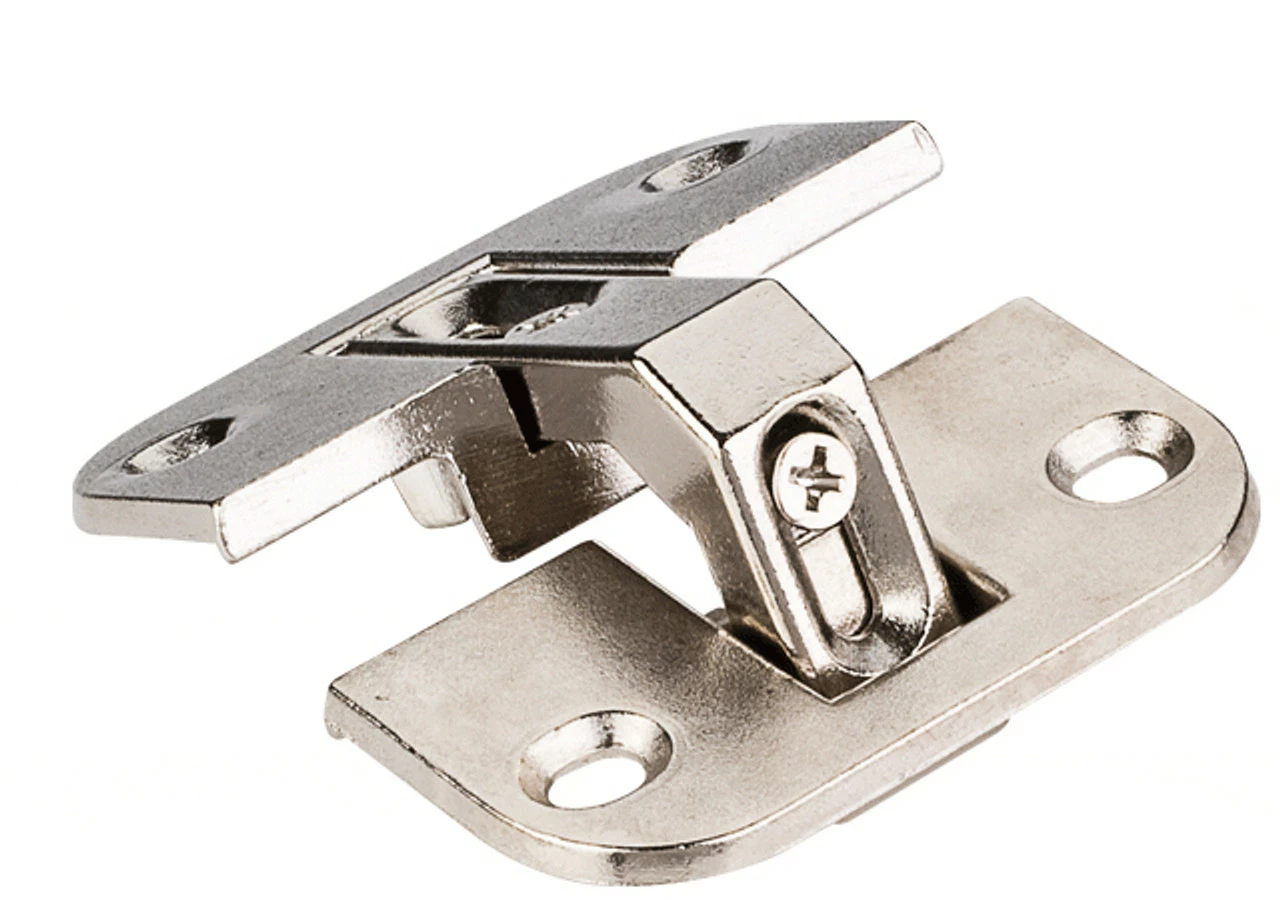

Pie Cut Corner Hinge HR-22877-000

Pie Cut Corner – Die Cast Construction – 78 Degree Opening

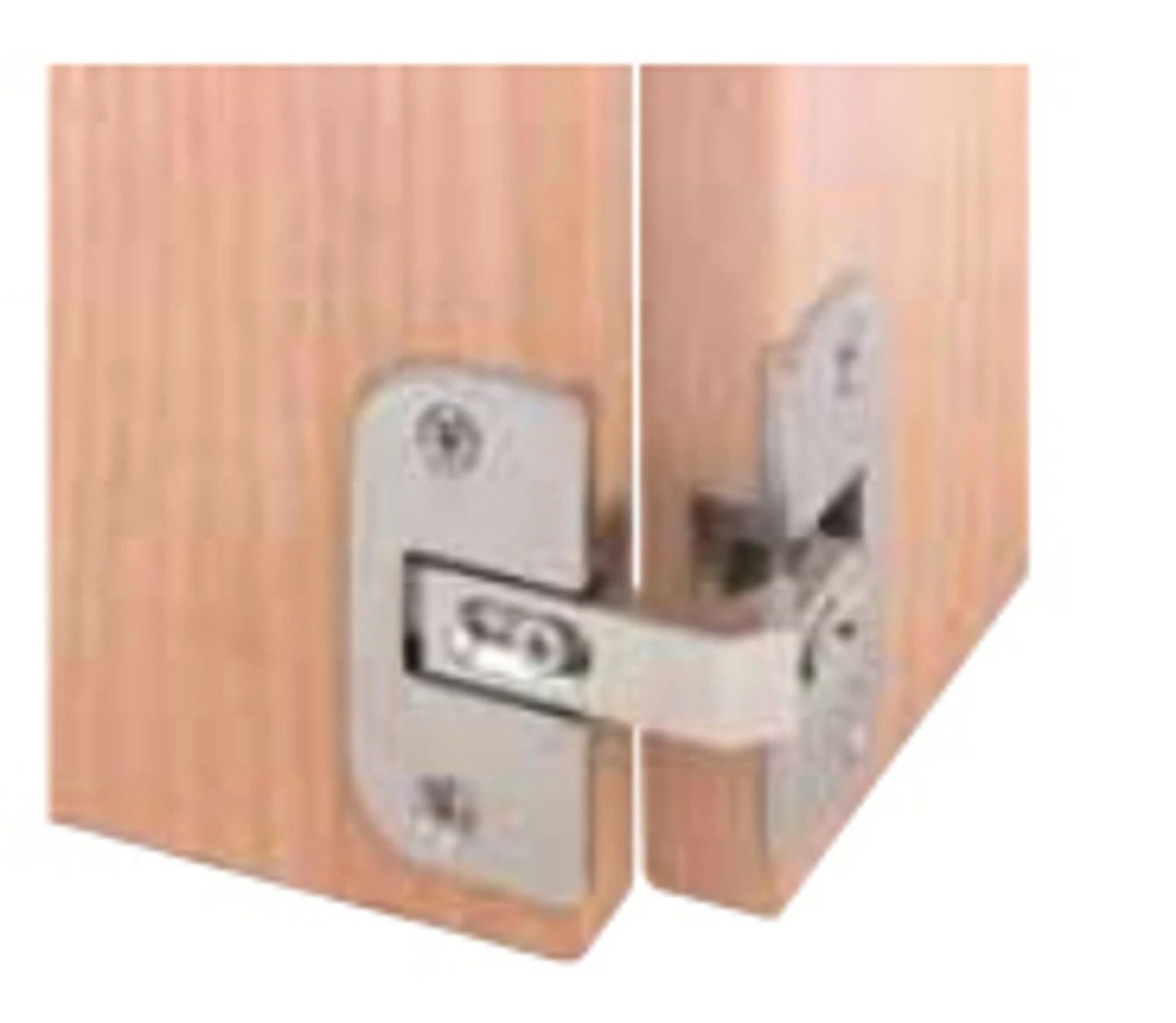

Specially designed for kitchen corner cabinets with revolving shelves

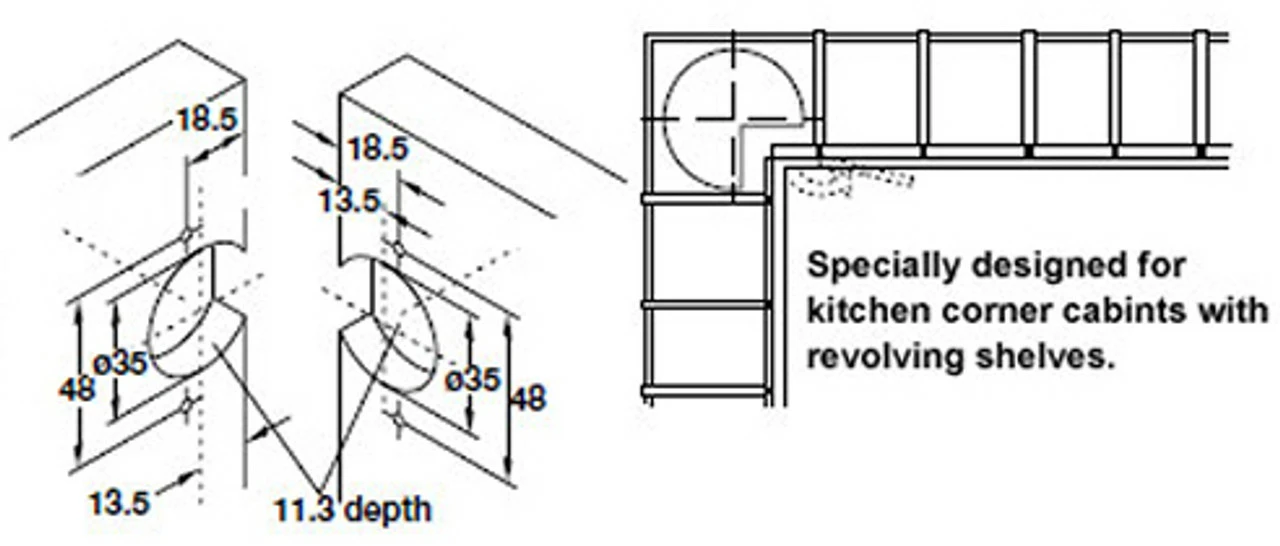

Requires two 35 mm cup holes 11 mm deep
Max. opening angle: 78 degrees

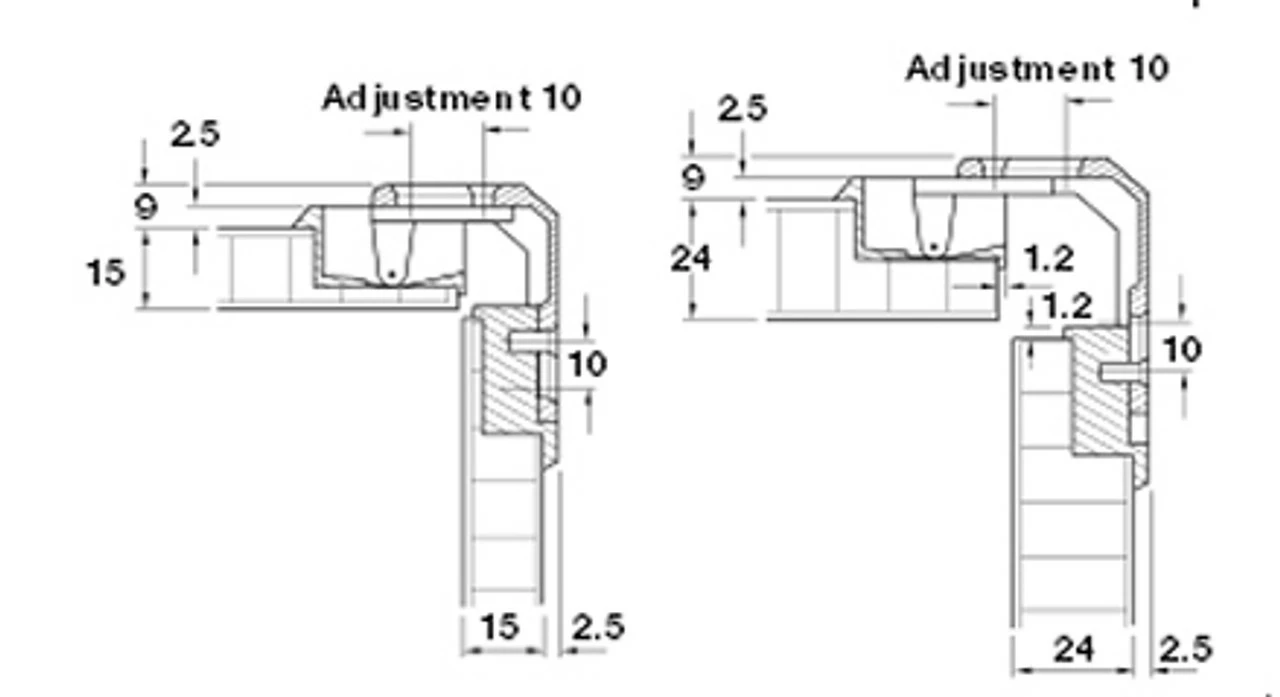

Door thickness variable: 15 – 24 mm
Three-way adjust ability, quick mounting, concealed installation and sturdy construction
Compare to Grass 975 Pie Cut Corner or Hafele 343-90-710 Pie Cut Corner Hinge
Requires 4-#6 x 5/8″ FH Phillips screws Not furnished
Generic product

HR-22877-000
