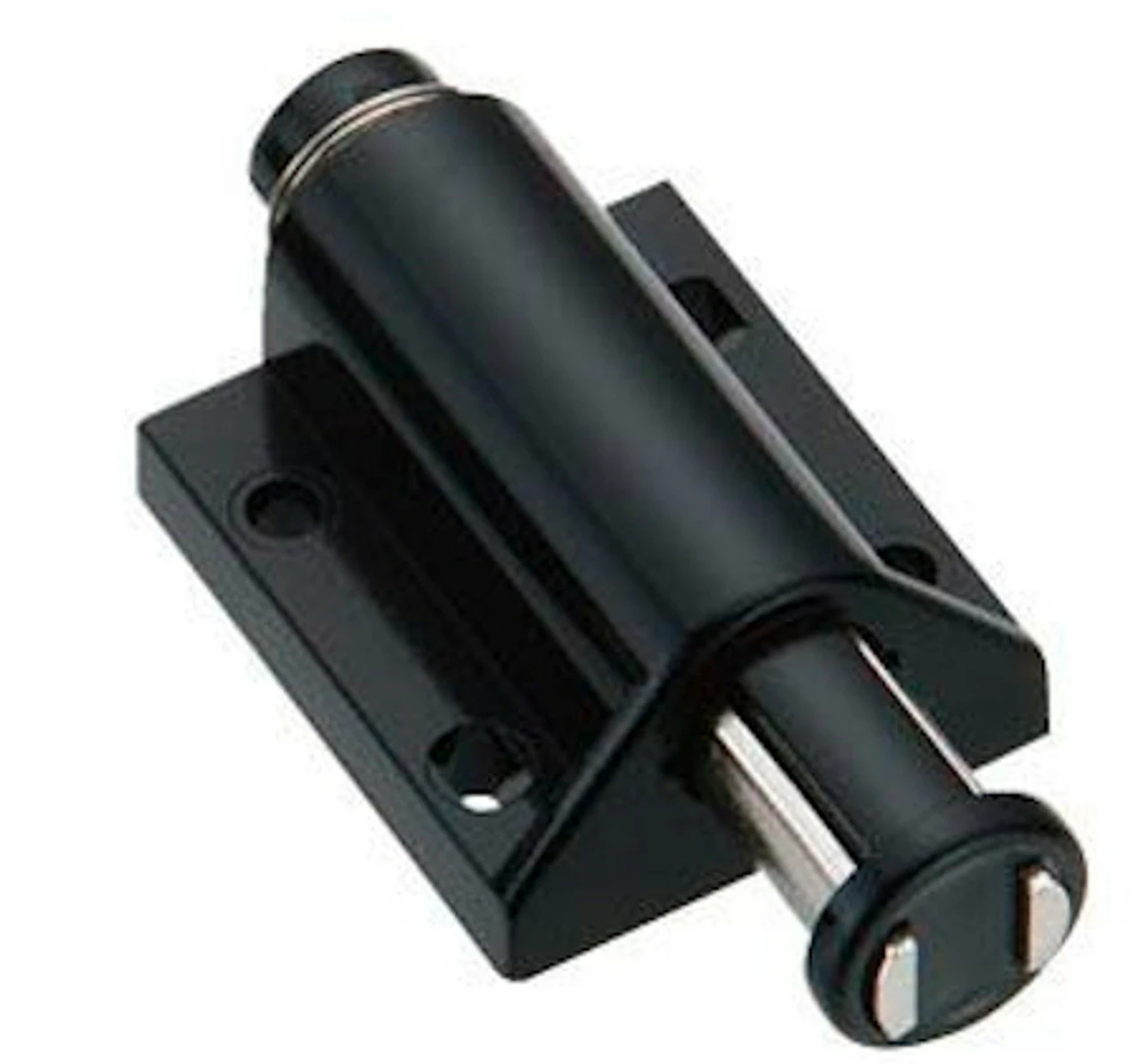

Single Black Magnetic Touch Latch – No Strike – 1 7/8″

Single magnetic touch latch without strike. Three pound pushing power. Standard type touch release with black plastic housing. Use for pop-open wood or glass doors on cabinets, entertainment centers, stereo cabinets, or china cabinets and curio cabinets. Approximately 3 to 3-1/2lb push. Recommend #5 pan head screw. Order strike plate separate DL-C1042-ZP.

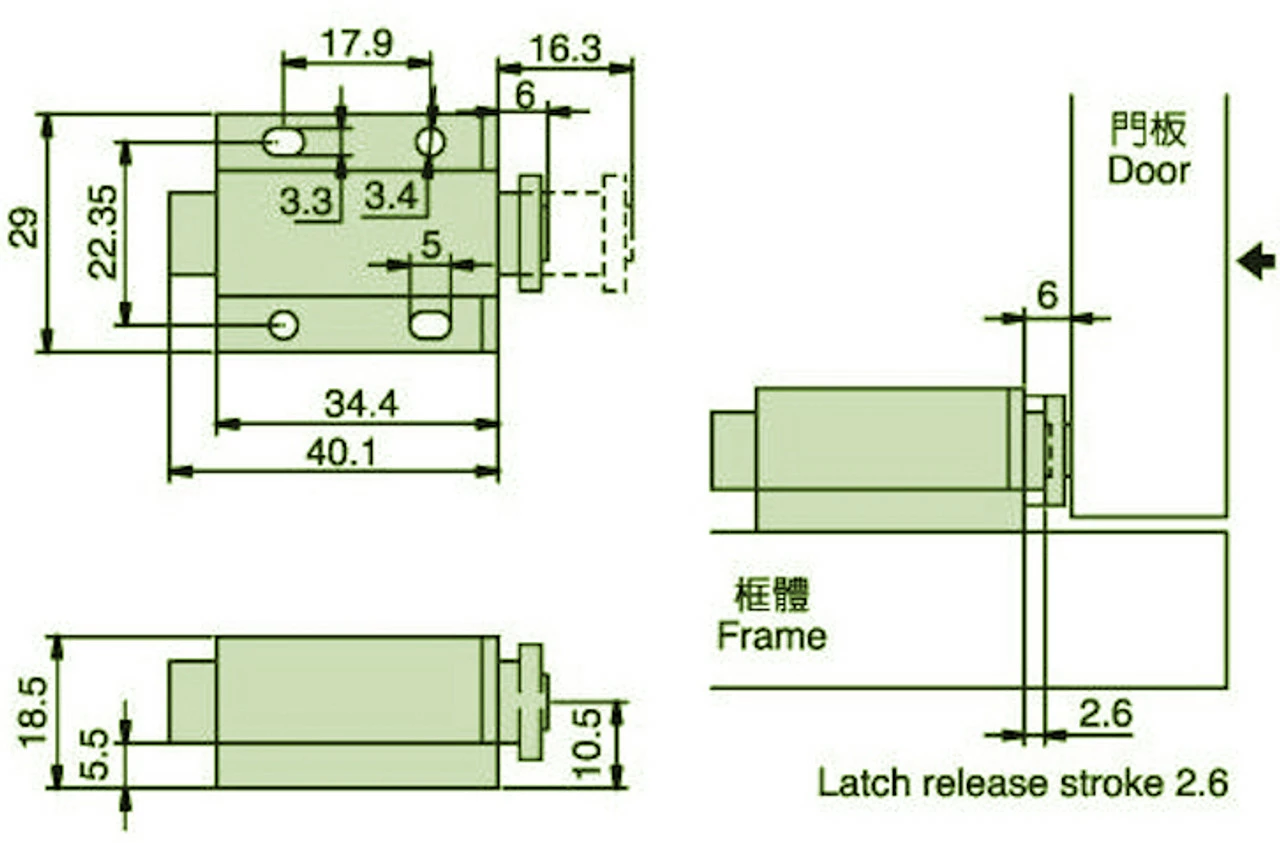

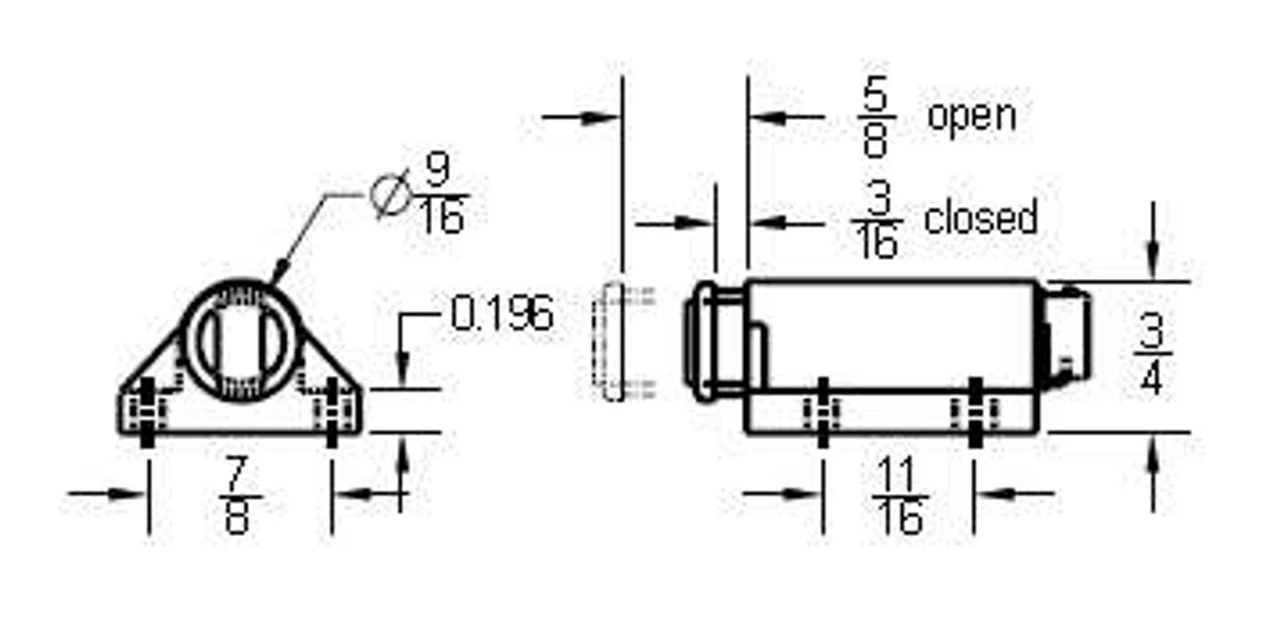

• Centers: 11/16″ (18 mm)

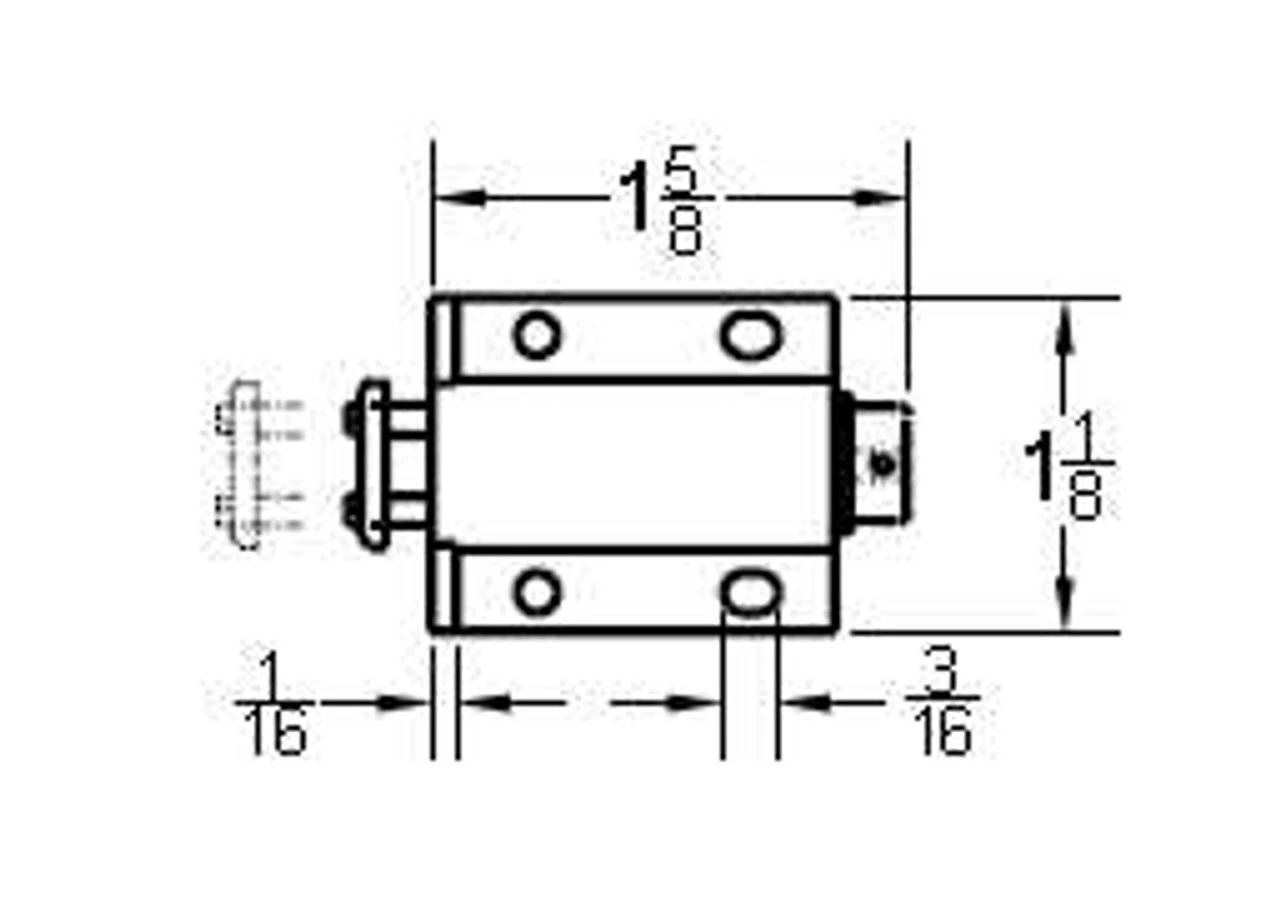

• Total Dimensions: 1-7/8″ x 1 1/8″ x 5/8″ (33 mm x 29 mm x 16 mm)overall. Base= 1 5/16″ long.
• Opened Latch Projection: 3/4″ (19 mm)
• Color: Black

For glass doors see “Glass Door Hardware” section. D. Lawless Hardware
