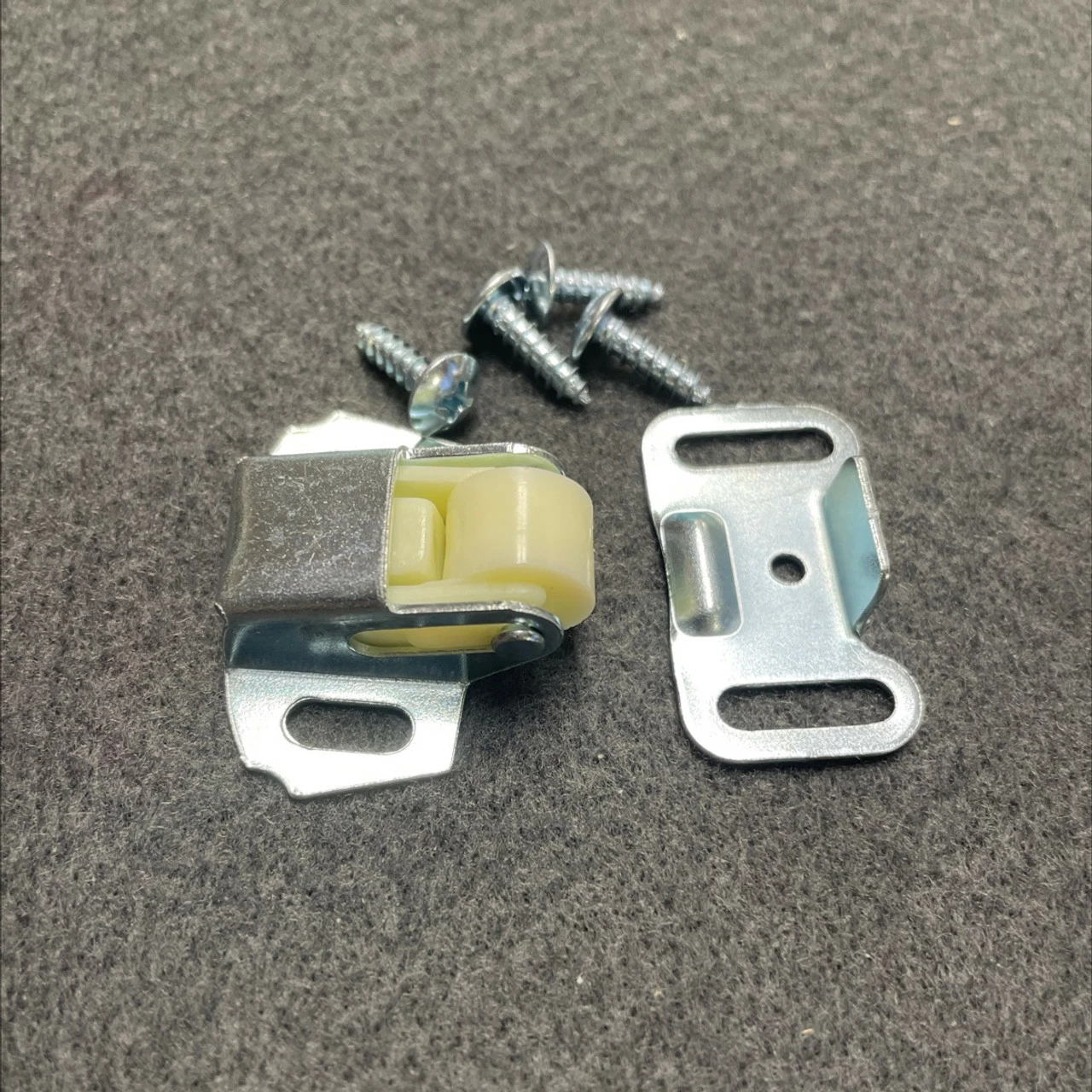

Single Roller Catch For Flush Doors – Zinc Plated C24-C620

Single Roller Catch For Flush Doors – Spring loaded 7/16″ diameter. Nylon roller snaps into metal strike with built in backstop.  No additional stop needed for flush fitting doors!

Catch

• Centers: 1″ (25.4 mm)
• Dimensions: 1 3/8″ x 1 1/4″ x 5/8″ (35 mm x 32 mm x 16 mm)
• Finish: Zinc

Strike

• Centers: 15/16″ (24 mm)
• Dimensions: 1 3/8″ x 7/8″ x 1/2″ (35 mm x 22 mm x 13 mm)
• Finish: Zinc

Parts mount 90 degrees to each other – roller part on door, and catch on cabinet. 4 Screws Included. 1″ spacing on slotted holes. D. Lawless Hardware
