Window Ventilating Lock – Hillman H-850118

Hillman Window Venting Stop
Allows window to be locked partially open for ventilation
Fits double-hung window

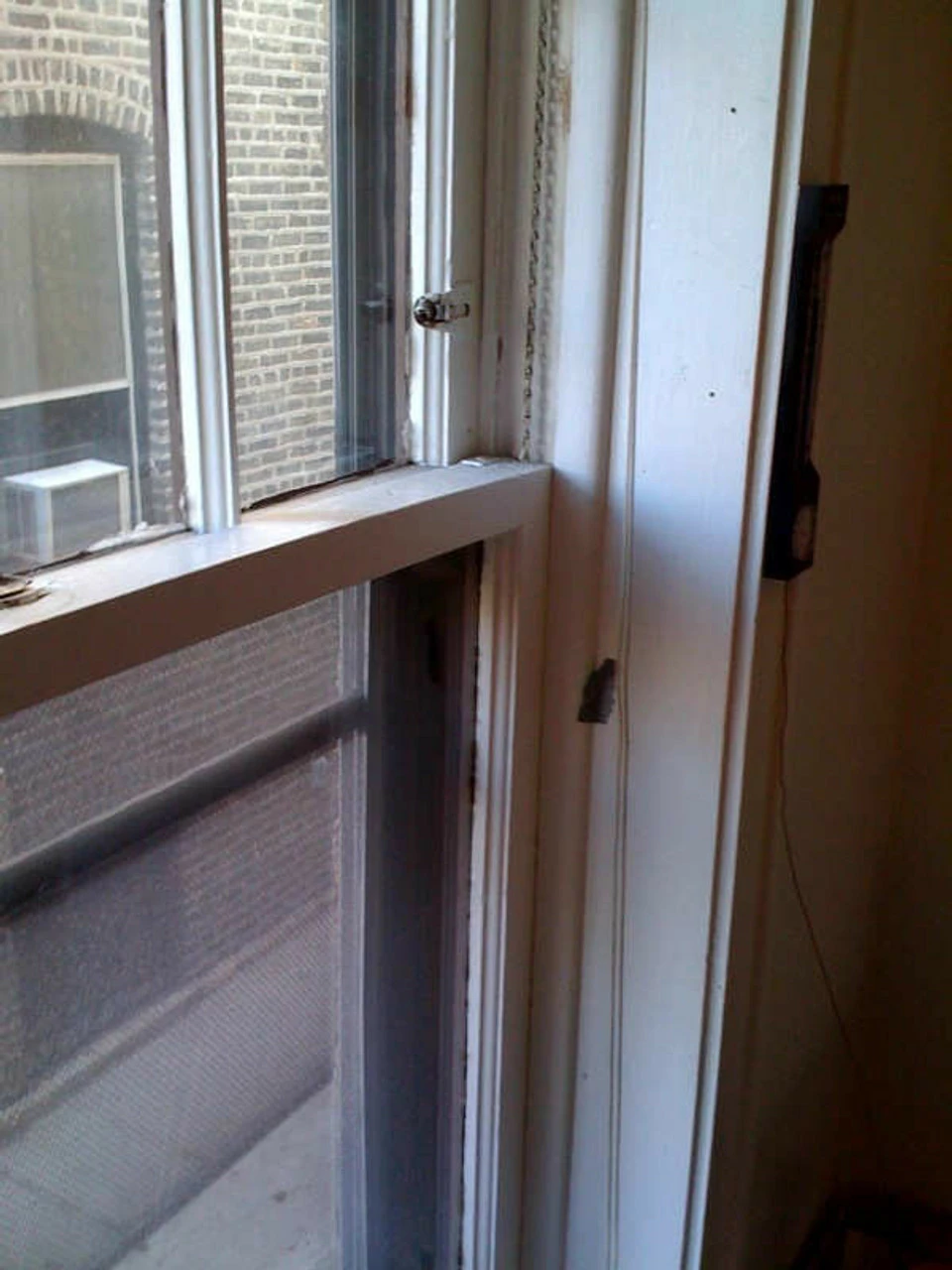

Lock fits on upper frame and plate mounts on top edge of bottom sash
Consumer packed with mounting screws, brass plated

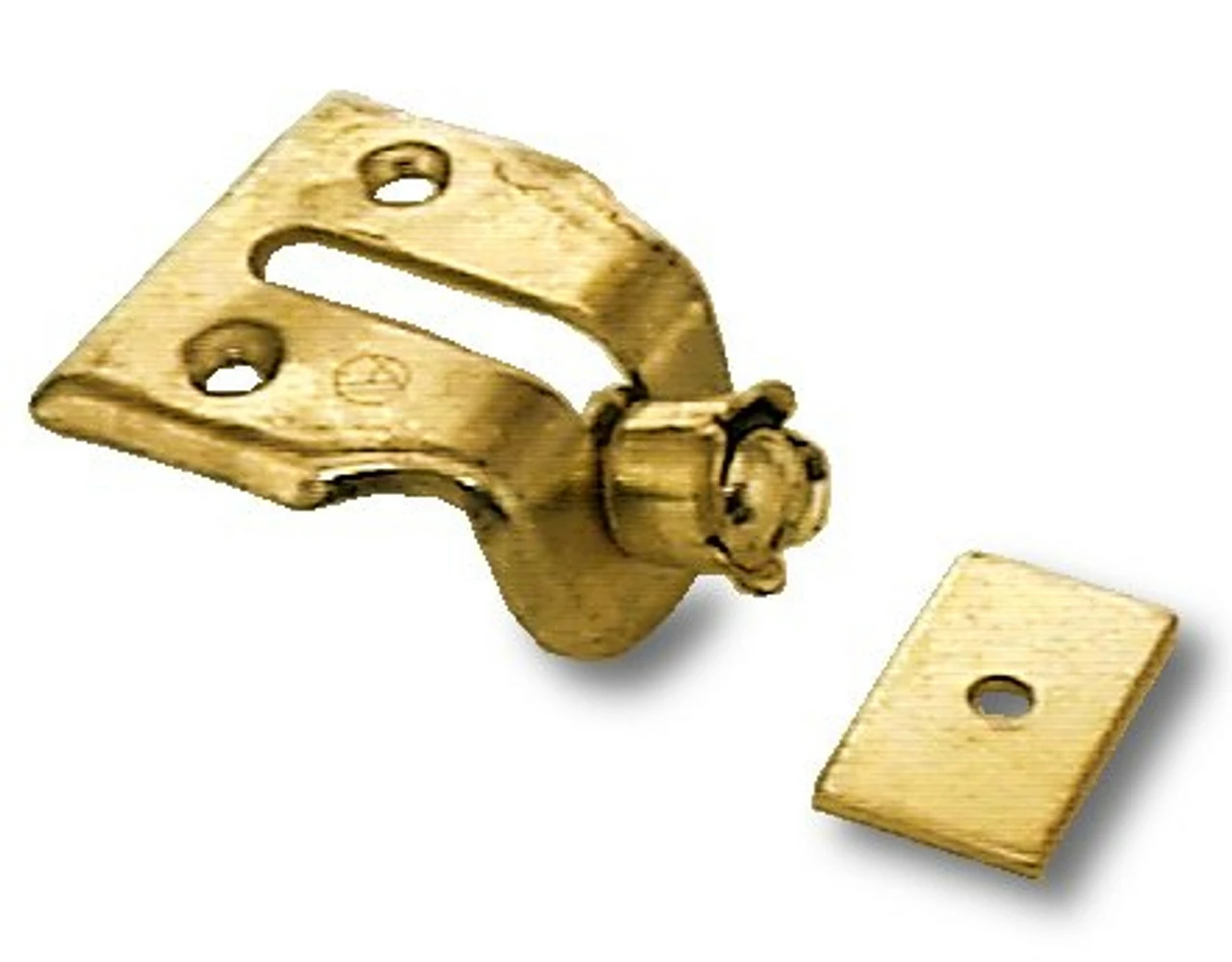

Catch

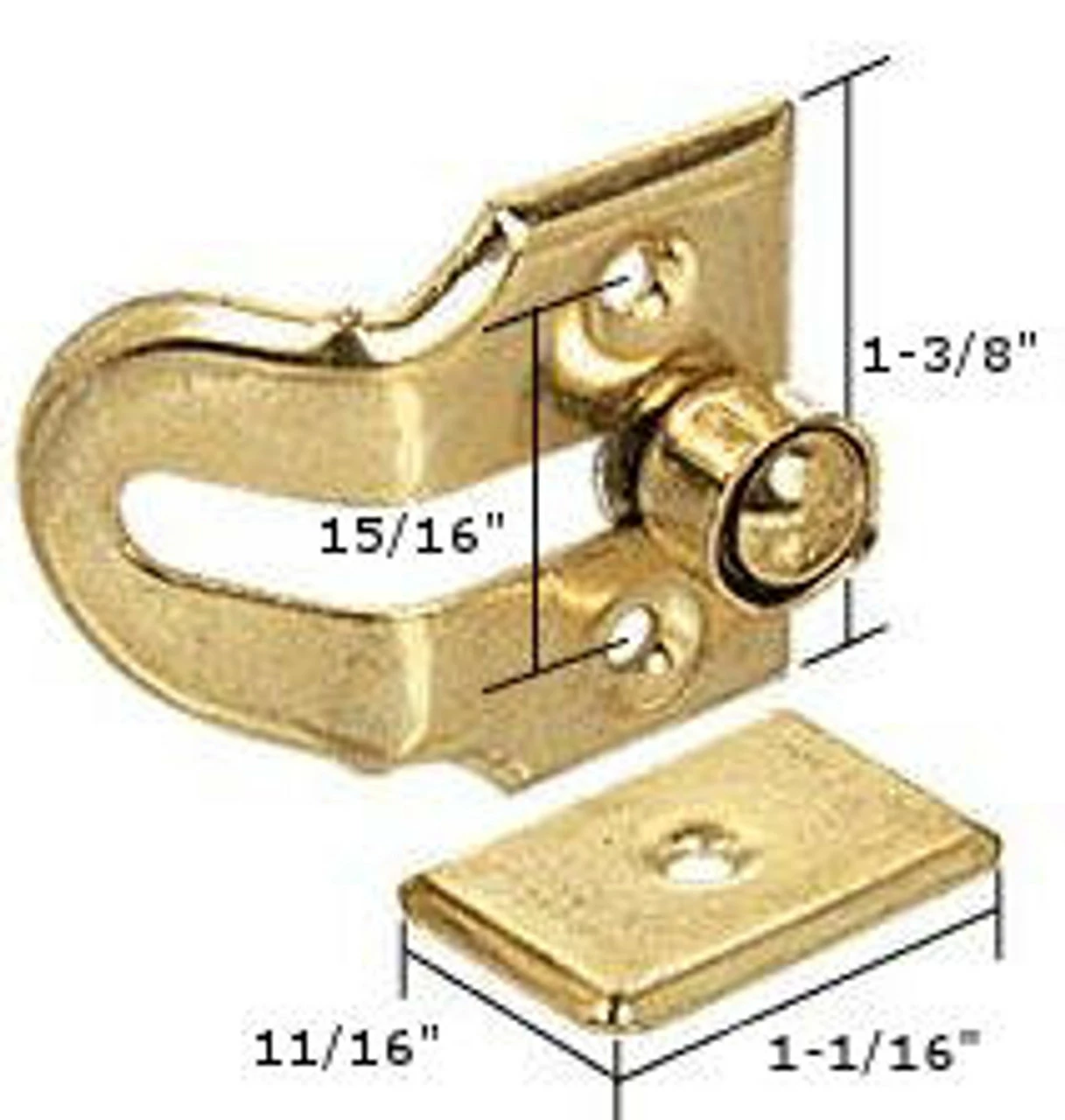

• Centers: 15/16″ (24 mm)
• Mounting Dimensions: 1 5/8″ x 1 3/8″ x 1/8″ (41 mm x 35 mm x 3.2 mm)
• Projection Dimensions: 1″ x 1 3/16″ x 1/8″ (25.4 mm x 4.8 mm x 3.2 mm)
• Knob Diameter: 5/8″ (16 mm)
• Knob Projection: 1/2″ (13 mm)
• Finish: Brass Plated

Strike

• Dimensions: 1 1/16″ x 11/16″ (27 mm x 17 mm)
• Finish: Brass Plated

Hillman Hardware

H-850118
